North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Size:
2600*1600*1900
Weight:
3200kg
Colour:
Blue/Customized
Warranty:
1 Year
Popularity:
Hot/on Sales
Operation:
Button Control
Usage:
Rope Wire
Type:
Copper Wire Drawing Machine with Annealing
Outlet Diameter:
0.25mm-0.6mm
Max.Inlet Wire Dia.:
0.8mm-1.6mm
Max. Number Of Block:
14
Product Description

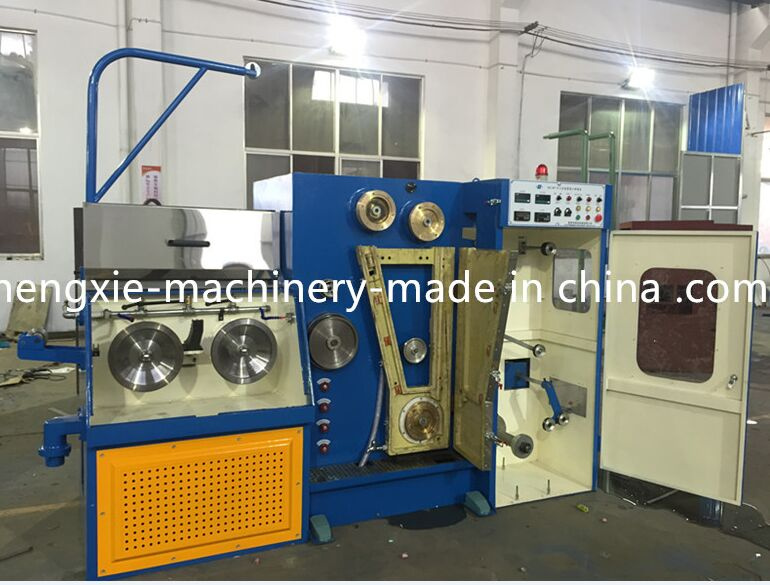

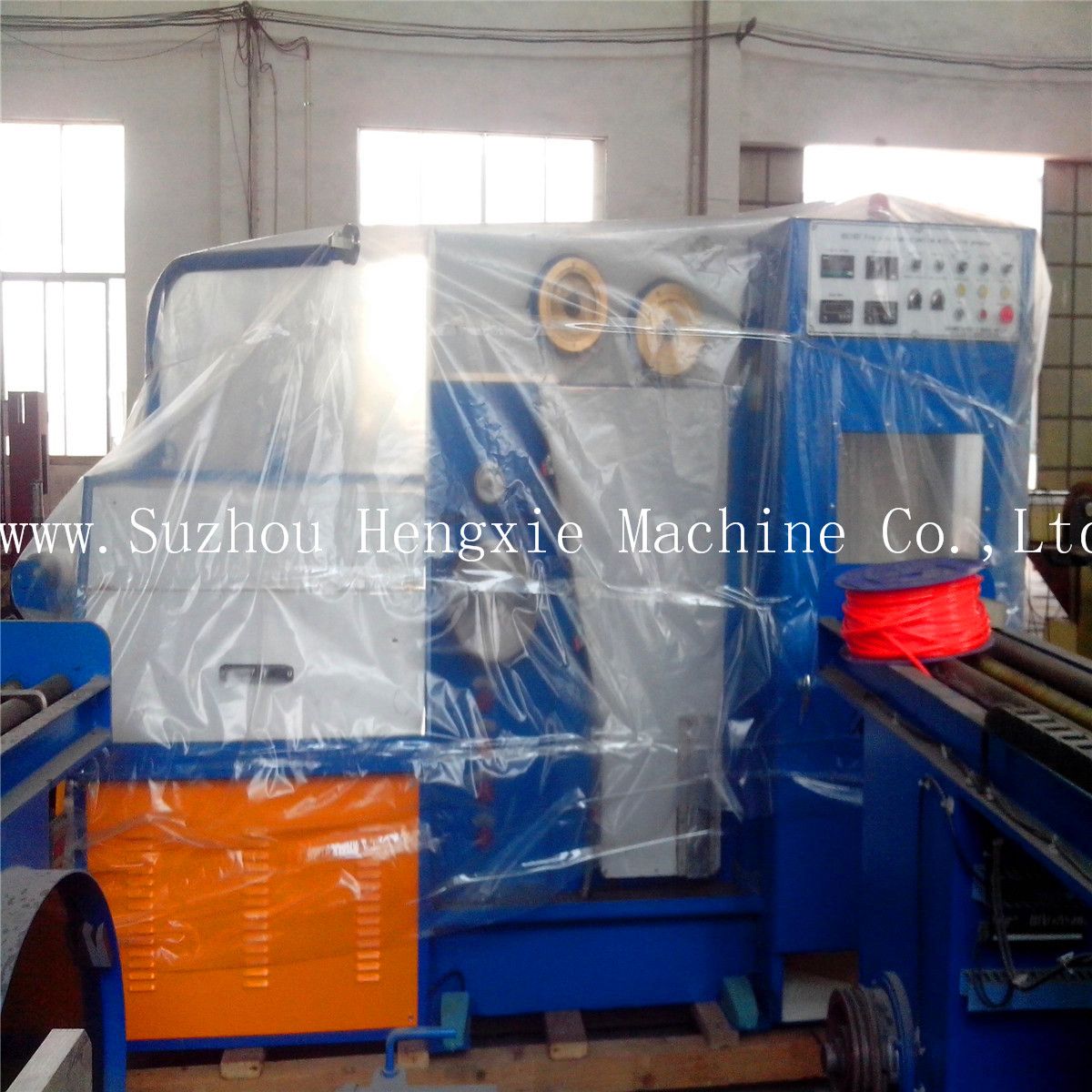

HXE-14DT Copper Wire Drawing Machine With Annealing
Inlet diameter
0.8mm-1.6mm
Outlet diameter
0.25mm-0.6mm
Inverter Control
Dual inverter control
Die numbers
14
High speed
1200m/min
Slip ratio of m/c
15%+8%
Franme
Welded by steel plate
Capstan
Ceramic plasma orTung sten
Capstan size
316mm
Fix speed capstan size
268mm
Spooler bobbin size
300mm
Bobbin loading
Shaft type
Spooler capacity
50kg
Annealing method
DC three-section annealing
Main motor
15KW
Spool motor
3.7KW
Annealing current
DC600A
Annealing voltage
DC50V
Annealing power
30KVA
Steam quantity
10kg/h
Cooling water capacity
250L/min
Compressed air capacity
0.4~0.6Mpa,20L/min
Power source
380V 50/60HZ
If you want to buy this machine please cantact me. i will reply as soon as possible.
