Size:
2800*1300*1850mm
Machine Weight:
2500kg
Voltage:
380/50-60Hz
Warranty:
1 Year
After Service:
Engineer Available to Overseas
Color:
Blue/Customized
Popularity:
Hot/on Sales
Usage:
Copper Wire Drawing
Type:
Copper Wire Drawing Machine
Outlet Diameter:
0.1mm-0.32mm
Max.Inlet Wire Dia.:
0.6mm-1.2mm
Max. Number Of Block:
22
Product Description

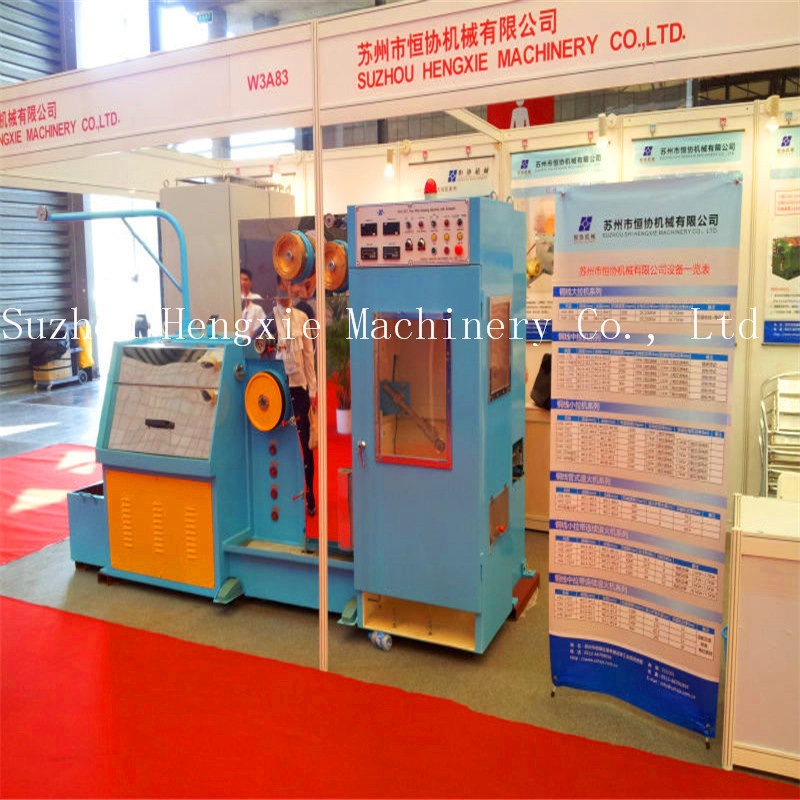

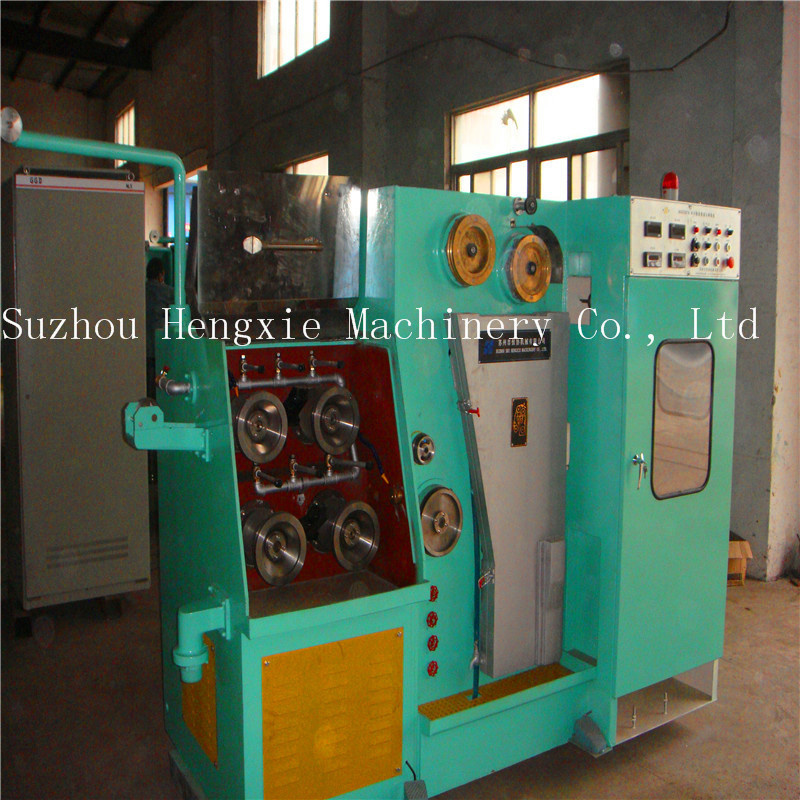

HXE-22DT Fine wire drawing machine with annealer
TECHINCAL SPECIFICATION:
Max. Inlet diameter 1.20mm-0.60mm Outlte diameter range 0.1mm~0.32mm Max. Line speed(m/min): 1800 Max. Drawing cone diameter: 242.85mm Fix speed capstan diameter(mm): 199 Number of dies: Max 22 Mechanical elongation ratio: 15%+85 Main motor power(kw): 11 Spooler motor power(kw): 3.7 Steam generator power(kw): 6 DC current for annealing(A): Max 300 DC volt for annealing(V): 55 Annealing power: 16kVA Revise system synchronous control spool Inverter control Inverter control Pay-off method Over-head Traversing unit Falt belt+synchronous motor Tension control Weight balance by swing arm Lubrication type spray type Standard spool size: PND300 Copper loading capacity(kg); Max 50 Break method: ElectroMagetic brake
Suzhou Hengxie Machinery Co., Ltd. Locates in Yinghu Industrial Zone, Wangting town, Suzhou Hli-New District, near to G312 with a conveninet transportation and nice environment. It is a professional company which specializes in electronic cable, electromagnetic cable, electrical wire eat. It is at a leading position in this line because of the topping managing talent and advanced technics.
Hengxie has invested RMB ten Millons to introduce the Germany equipments and technics and developed the cable producing line by itself. This ensures the quality stable and capability superior. Hengxie has successfully set up a superior enterprise mode.
With the mange concept"Stable Quality, Mutual Development" Hengxie warmly welcome alll the friends to grant the changefor sincere cooperation and win the mutual benifit in the future.
Suzhou Hengxie Machinery Co., Ltd. Locates in Yinghu Industrial Zone, Wangting town, Suzhou Hli-New District, near to G312 with a conveninet transportation and nice environment. It is a professional company which specializes in electronic cable, electromagnetic cable, electrical wire eat. It is at a leading position in this line because of the topping managing talent and advanced technics.
Hengxie has invested RMB ten Millons to introduce the Germany equipments and technics and developed the cable producing line by itself. This ensures the quality stable and capability superior. Hengxie has successfully set up a superior enterprise mode.
With the mange concept"Stable Quality, Mutual Development" Hengxie warmly welcome alll the friends to grant the changefor sincere cooperation and win the mutual benifit in the future.
