North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Warranty:
1 Year
Color:
Bule/Customized
Size:
2100*1600*1700
Popularity:
Hot/on Sales
Dies:
24
Inverter Control:
Dual Inverter Control
Brand Name:
Hxe
Operation:
Button Control
Usage:
Rope Wire
Type:
Copper Wire Drawing Machine with Annealing
Outlet Diameter:
0.07mm-0.25mm
Max.Inlet Wire Dia.:
0.5mm-1.0mm
Max. Number Of Block:
24
Product Description

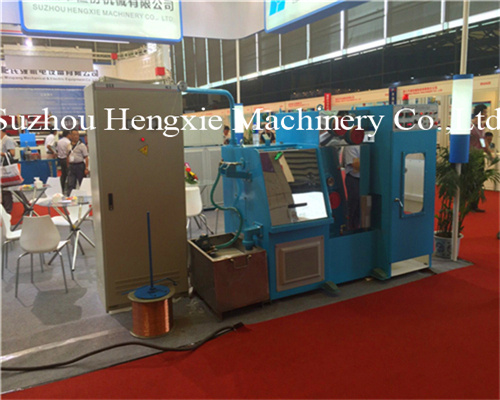

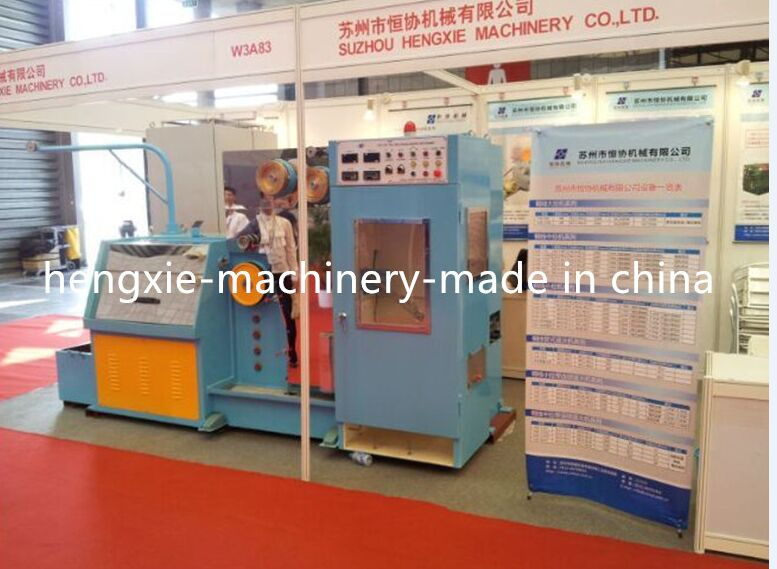

HXE-24DT Wire Drawing Machine with continuous annealer HXE-24DT Copper wire drawing machine with online annealer is used to draw and annealer single bare copper wire from 0.5mm-1.0mm to0.07mm-0.25mm. High speed 2000m/min Slip ratio of machine 13%+8% Frame Welded by steel plate Capstan Ceramic plasma or tung sten Capstan size 242.5mm Fix speed size 199mm Spooler bobbin size 300mm Bobbin loading Shaft type Spooler capacity 50Kg Annealing method DC. three-section annealing Main motor 11KW Spool motor 3.7kw Max anneaing current DC300A Max annealing voltage DC50V Annealing power 16KVA Steam quantity 8Kg/h Cooling water capacity 150L/min Power source 380V 50/60HZ Dimension 2100*1600*1700 Weight 3000Kg
Suzhou Hengxie Machinery Co., Ltd. Locates in Yinghu Industrial Zone, Wangting town, Suzhou Hli-New District, near to G312 with a conveninet transportation and nice environment. It is a professional company which specializes in electronic cable, electromagnetic cable, electrical wire eat. It is at a leading position in this line because of the topping managing talent and advanced technics.
Hengxie has invested RMB ten Millons to introduce the Germany equipments and technics and developed the cable producing line by itself. This ensures the quality stable and capability superior. Hengxie has successfully set up a superior enterprise mode.
With the mange concept"Stable Quality, Mutual Development" Hengxie warmly welcome alll the friends to grant the changefor sincere cooperation and win the mutual benifit in the future.
Suzhou Hengxie Machinery Co., Ltd. Locates in Yinghu Industrial Zone, Wangting town, Suzhou Hli-New District, near to G312 with a conveninet transportation and nice environment. It is a professional company which specializes in electronic cable, electromagnetic cable, electrical wire eat. It is at a leading position in this line because of the topping managing talent and advanced technics.
Hengxie has invested RMB ten Millons to introduce the Germany equipments and technics and developed the cable producing line by itself. This ensures the quality stable and capability superior. Hengxie has successfully set up a superior enterprise mode.
With the mange concept"Stable Quality, Mutual Development" Hengxie warmly welcome alll the friends to grant the changefor sincere cooperation and win the mutual benifit in the future.
