North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Color:
Customized
Aftersales Service:
Engineer Is Available Overseas
Warranty:
One Year
Transmission:
Gear
Business Type:
Manufacturer
Brake:
Maganetic Brake
Quality:
High Quality
Brand:
Hxe
Usage:
Wire
Type:
Hxe-9dt Rod Breakdown Machine with Annealing
Outlet Diameter:
0.8mm-2.8mm
Max.Inlet Wire Dia.:
3.0mm-3.5mm
Max. Number Of Block:
13
Product Description
Heng-xiemachinery technology Ltd was established in 2005, specializing in cable series equipments. Located at Suzhou city which is near Shanghai, Hengxie enjoys convenient transportation and nice environment. Our company's main products are as follows: Copper Rod Breakdown Machine with Annealer, Medium Copper Wire Drawing Machine with Annealer, Fine Wire Drawing Machine with Annealer,Annealing and Tinning machine, Medium Wire Drawing Machine with Double Spooler etc. y Our cable equipments have won its reputation both on domestic and overseas markets by its high quality, easy operate, less maintain and high productivity. More than 90% cable company are using our company's equipments including many listed company in Suzhou city. Our oversea market include India, Brazil, Egypt,Malaysia,Korea,Vietnam,Syria,Kennya Argentina, South Africa etc

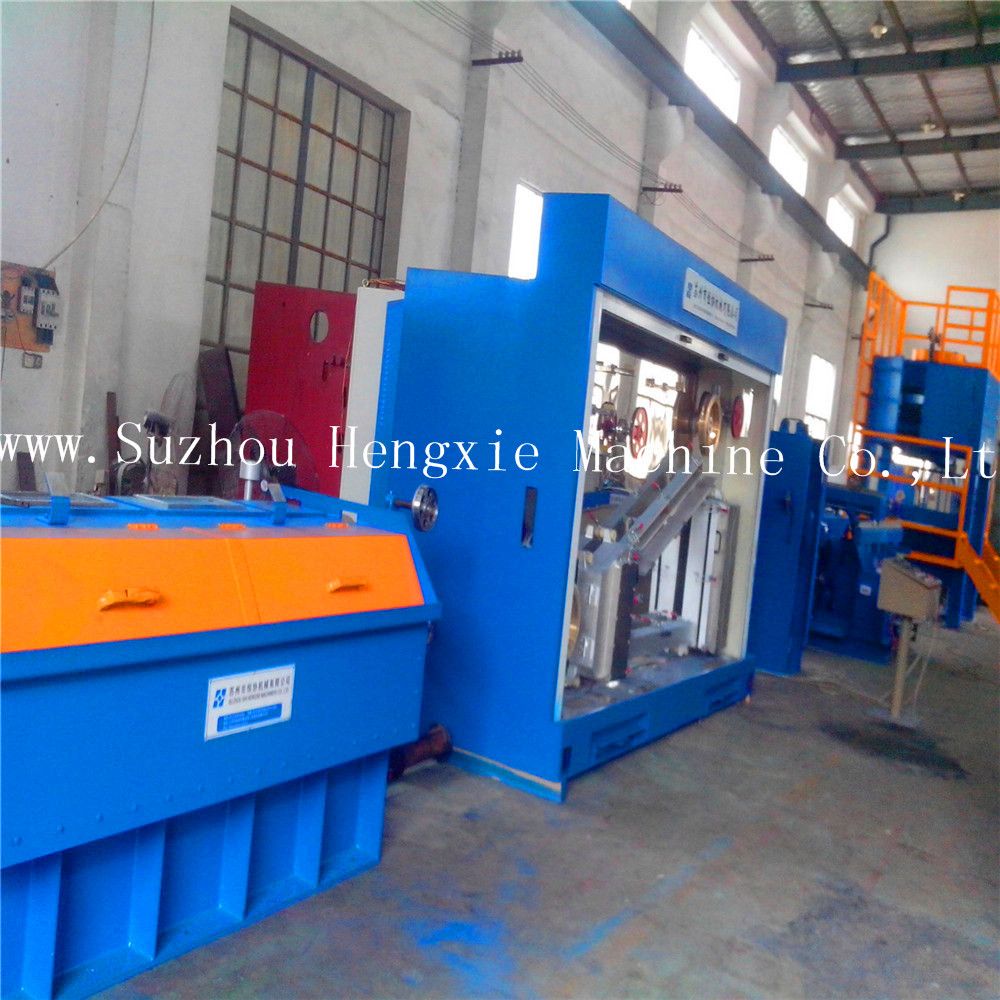

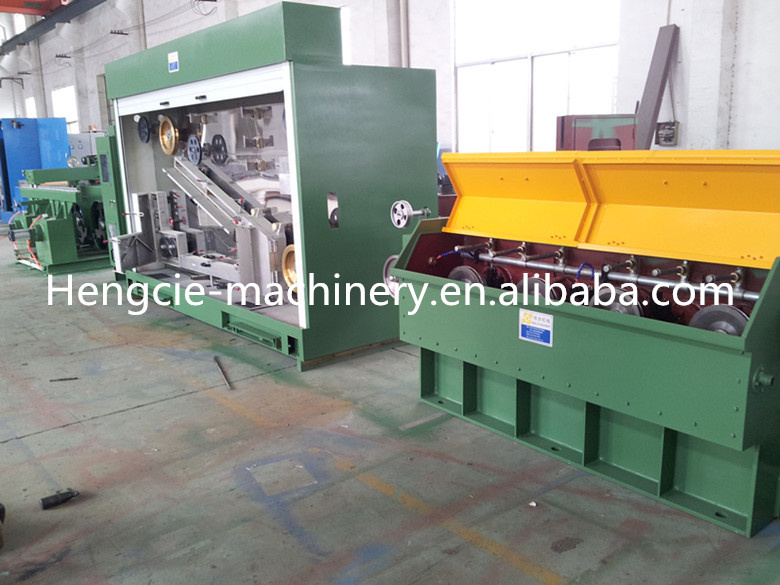

HXE-9DT Rod Breakdown Machine With annealing
Main technical parameter
Machine type
HXE-9DT
HXE-13DT
Control system
Traditional analog type/digital control with production record
Inlet diameter
3.0-3.5mm
3.0-3.5mm
Outlet diameter
1.0-2.8mm
0.8-2.8mm
Max line speed
900
1000
Die numbers
9
13
Slip ratio of machine
19.6%+12.5%
Frame
Welded by steel plate
Capstan
Tungsten
Max capstan diameter
280mm
Fix speed capstan diameter
280mm
Spooler bobbin size
400-630mm
Bobbin loading &unloading type
Double end thimble
Max loading capacity
500KG/MAX
Annealing method
DC three section annealing
Main motor
AC45KW
Spool motor
AC11KWx2
Max annealing current
DC3000A
Max annealing voltage
DC60v
Annealing power
180KVA
Steam quantity
18kg/h
Cooling water capacity
650L/min
Compressed air capacity
0.4-0.6Mpa,50L/min
Power source
380V 50/60HZ
Dimension
13300x3500x3400
Weight
8500KG
Certification In Exhibition
Suzhou Hengxie Machinery Co., Ltd. Locates in Yinghu Industrial Zone, Wangting town, Suzhou Hli-New District, near to G312 with a conveninet transportation and nice environment. It is a professional company which specializes in electronic cable, electromagnetic cable, electrical wire eat. It is at a leading position in this line because of the topping managing talent and advanced technics.
Hengxie has invested RMB ten Millons to introduce the Germany equipments and technics and developed the cable producing line by itself. This ensures the quality stable and capability superior. Hengxie has successfully set up a superior enterprise mode.
With the mange concept"Stable Quality, Mutual Development" Hengxie warmly welcome alll the friends to grant the changefor sincere cooperation and win the mutual benifit in the future.
Suzhou Hengxie Machinery Co., Ltd. Locates in Yinghu Industrial Zone, Wangting town, Suzhou Hli-New District, near to G312 with a conveninet transportation and nice environment. It is a professional company which specializes in electronic cable, electromagnetic cable, electrical wire eat. It is at a leading position in this line because of the topping managing talent and advanced technics.
Hengxie has invested RMB ten Millons to introduce the Germany equipments and technics and developed the cable producing line by itself. This ensures the quality stable and capability superior. Hengxie has successfully set up a superior enterprise mode.
With the mange concept"Stable Quality, Mutual Development" Hengxie warmly welcome alll the friends to grant the changefor sincere cooperation and win the mutual benifit in the future.
