Product Description

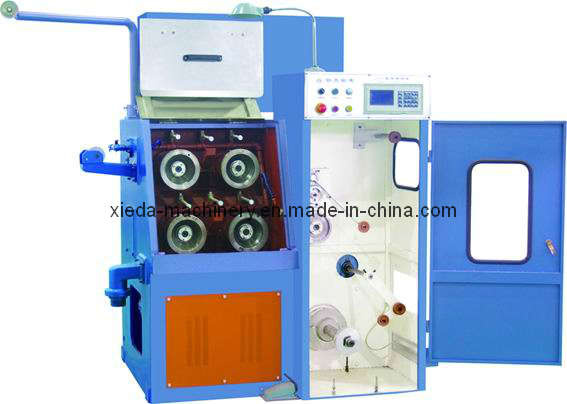

Bare Copper Fine Wire Drawing Machine 22D/24D
We are classical manufacturer in all types of Wire Drawing Machine, Continuous Annealing tin-coating Machine, Stranding Machine and all kinds of frequency-conversion machinery equipments.
If you have any other requirements about our machine, please feel free to let us know.
Machine type
24D/24DH
22D/22DH
Inlet diameter
Φ 0.5-Φ 1.0
Φ 0.6-Φ 1.2
Outlet diameter
Φ 0.08-Φ 0.25
Φ 0.1-Φ 0.4
Drawing line speed
2000/2500
2000/2500
Drawing dies No. /Max
24
22
Slip ratio of m/c
13%
15%
Fix speed capstan slip ratio
8%
Capstan
Ceramic plasma
Capstan dia. (Max)
Φ 194/242
Fix speed capstan dia.
Φ 159/207
Frame
Ironed cast
Main motor
11kw three phase inductor motor
Spooler motor
3.7kw three phase inductor motor
Revise system
PID synchronous spooler
Inverter control
Dual inverter control
Transmission type
By flat belts
Send-out method
over head
Traversing unit
100w flat belt synchronous motor
Tension control
Weight balance by swin
Lubncation system of wire drawing
Spray type
Suitable diameter of spool
Φ 300
Capacity for wire receiving
50
Bobbin loading & Unloading type
Shaft type
Power source
380V
Brake
Magnetic brake
Machine demension(mm)
2050L× 1600W× 1900H
Machine weight
1800
Zhangjiagang Xieda Machinery Electric Co., Ltd., estiblished in 1991, which is located in the famous city of China--------zhangjiagang, nearby suzhou, Shanghai, wuxi. Our factory covers 15 acres with 8000 square meters building area, enjoying advantageous location and extremely convenient transportation.
We are classical manufacturer in all types of Wire Drawing Machine, Continuous Annealing tin-coating Machine, Stranding Machine and all kinds of frequency-conversion machinery equipments. We have an professional and innovative team with high vocational quality and enterprising morality. At the same time we introduce domestic and international advanced technology, setting up a perfect quality assurance system. We Provide the high quality post-sale service and won high praise, we have the best integrating design, producing department, sell and service group.
We sincerely welcome all friends from all walks of life to know more about "XIEDA", we hope build a long time and steady Cooperation Relationship between you and me. Sincere hope we can help your business more successfully.
----------Keep faith and close cooperation make us great achievement!
