South America,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia
Type:
LT Water Tank Type Metal Drawing Machine
Usage:
Wire
Product Description

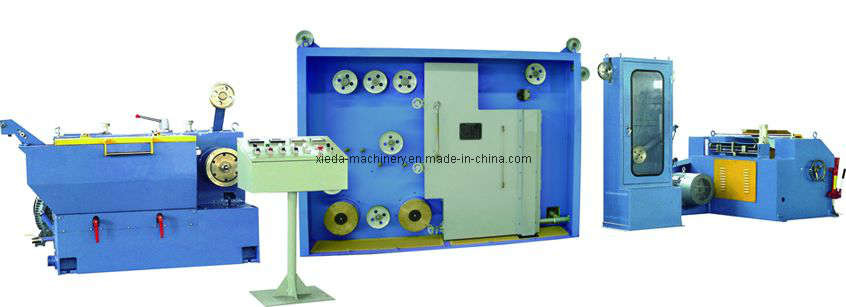

XD-9D Bare Copper Wire Intermediate Large Wire Drawing Machine
Our products is in stable quality, excellent performance, sale, sale and after-sale service. Warmly look forward to the customers' letter and calls business negotiations, visit the guide. Hope we can mutual benefit, sincere cooperation, hand in hand, create brilliant!
Machine type
9D
Inlet diameter
Φ 2.6-Φ 3.2
Outlet diameter
Φ 0.9-Φ 2.8
Drawing line speed
900
Drawing dies No. /Max
9
Slip ratio of m/c
19.5%
Fix speed capstan slip ratio
16%
Capstan
Tungsten
Capstan dia. (Max)
Φ 280
Fix speed capstan dia.
Φ 280
Frame
Weld
Main motor
37kw; AC motor
Spooler motor
15kw three phase inductor motor
Revise system
PID synchronous spooler
Inverter control
Dual inverter control
Transmission type
By gears
Send-out method
Over head
Traversing unit
Synchronous decelerate motor
Tension control
Weight balance by swin
Lubncation system of wire drawing
Immerse type
Suitable diameter of spool
Pay-off frame in coils or Φ 500-Φ 630 disk take-up type
Capacity for wire receiving
1200-1800 or 200-500
Bobbin loading & Unloading type
Shaft type
Power source
380V
Brake
Pneumatic brake
Zhangjiagang Xieda Machinery Electric Co., Ltd., estiblished in 1991, which is located in the famous city of China--------zhangjiagang, nearby suzhou, Shanghai, wuxi. Our factory covers 15 acres with 8000 square meters building area, enjoying advantageous location and extremely convenient transportation.
We are classical manufacturer in all types of Wire Drawing Machine, Continuous Annealing tin-coating Machine, Stranding Machine and all kinds of frequency-conversion machinery equipments. We have an professional and innovative team with high vocational quality and enterprising morality. At the same time we introduce domestic and international advanced technology, setting up a perfect quality assurance system. We Provide the high quality post-sale service and won high praise, we have the best integrating design, producing department, sell and service group.
We sincerely welcome all friends from all walks of life to know more about "XIEDA", we hope build a long time and steady Cooperation Relationship between you and me. Sincere hope we can help your business more successfully.
----------Keep faith and close cooperation make us great achievement!
