Product Description

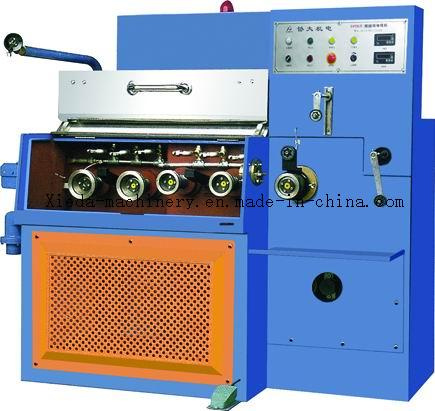

XD-24VB-X Superfine wire drawing machine
This is used to make the copper rod from inlet size Φ 0.09mm-Φ 0.3mm
Downsize to Φ 0.02-Φ 0.07mm.
If you have anytjing requires, please feel free to tell us.
Machine type
24VB-X
Inlet diameter
Φ 0.09-Φ 0.3
Outlet diameter
Φ 0.02-Φ 0.07
Drawing line speed
800
Drawing dies No. /Max
24
Slip ratio of m/c
10.5%+8%
Fix speed capstan slip ratio
6%
Capstan
Tungsten
Capstan dia. (Max. )
Φ 130
Fix speed capstan dia.
Φ 100
Frame
Welded by steel plate
Main motor
4kw three phase inductor motor
Revise system
PID synchronous spooler
Inverter control
Dual inverter control
Transmission type
By flat belts
Send-out method
Hairbrush wire placing
Traversing unit
Synchronous motor +Line bearing and guide
Tension control
Tension taper wheel device
Lubncation system of wire drawing
Spray type
Suitable diameter of spool
Double awl dish , Φ 130× 215, Φ 115× 140
Capacity for wire receiving
3.5
Bobbin loading & Unloading type
Shaft type
Power source
380V
Brake
Magnetic brake
Machine demension(mm)
2300L× 1300W× 1700H
Machine Weight
1500
