Certificate:
CE
Machine Working Power:
380V,3phase, 50Hz
Making Method Of Parison:
Stretch Blow
Raw Material:
PET
Certification:
ISO9001:2008
Type:
Extrusion Blow Molding Machine
Automation:
Automatic
Computerized:
Computerized
Product Description

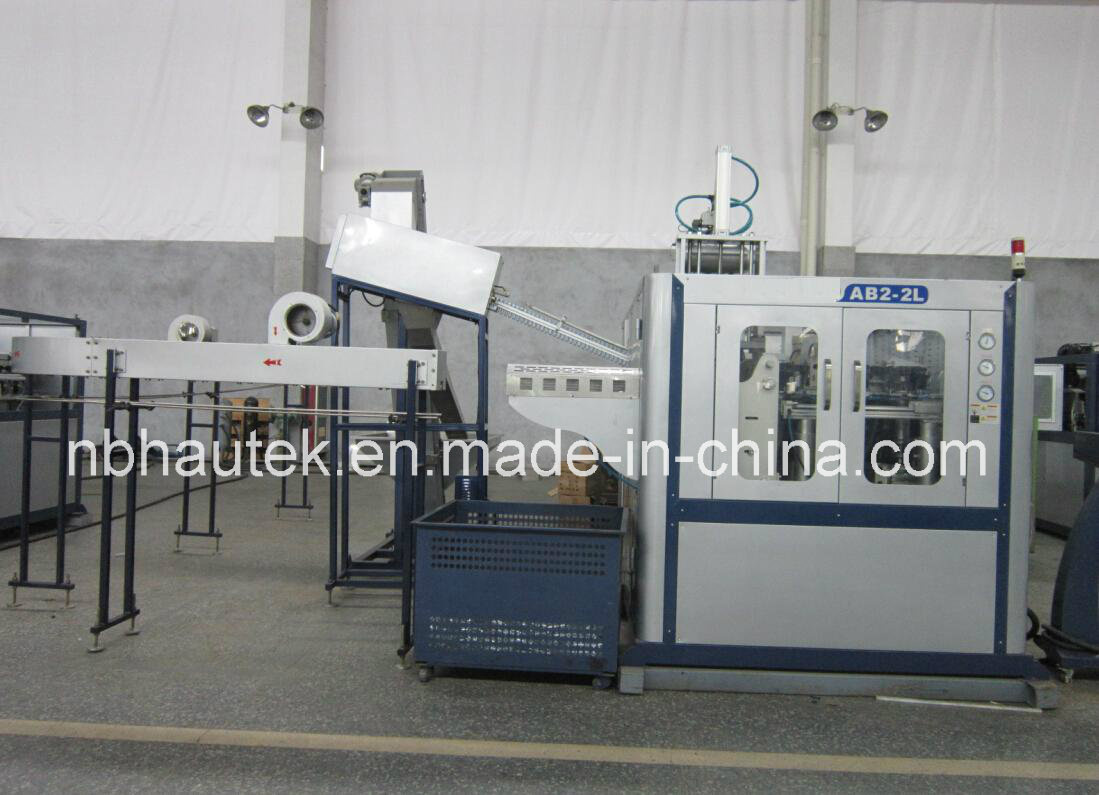

HAB Up Blow Series Automatic Blow Molding Machine(2 Cavity,4 Cavity,Maximum Capacity:2 Liter)
1. Servo drive, stepless speed regulation, smooth operation, accurate location;
2. Preform inlet device of invention patent design, linear movement in high speed;
3. Robot of patent design synchronize preform loading and bottle taking;
4. Heating tunnel of invention patent design, saving more energy by sectional temperature control;
5. Imported PLC automation control enable non-stop machine parameter adjustment.
Model details :
HAB2-2L
HAB4-2L
MOLD NUMBER
2
4
PRODUCT CAPACITY
L
≤2L
≤2L
PRODUCTION CAPACITY
Max. CAPACITY(500ml) Bottle mouth 28-30mm
Pcs/h
3130PCS/H (2.3 S/CYCLE)
6000PCS/H(2.4S/CYCLE)
RECOMMENDED REODUCTION CAPACITY
Pcs/h
2800-300pcs of 0.5L bottle, prefrom neck : 28mm, Weight:17g.
5000-5500Pcs/H of 0.5L bottle, preform neck 28mm, Weight : 17g.
MAX. DINMETER OF PRODUCT
φ120
φ12
NECK SIZE OF PRODUCT
φ15-φ45
φ15-φ45
USEFUL AREA OF MOULD PLATE
350×400
520×400
MAX.MOULD THICKNESS
220
220
MIN.MOULD THICKNESS
180
180
MOULD STROKE
158
158
CLAMPING FORCE
kN
120
210
STRETCHING STROKE
350
350
WORKING PRESSURE
MPa
0.8-1.0
0.8-1.0
BLOWING AIR PRESSURE
MPa
2.6-3.0
2.6-3.0
MEASUREMENT OF BLOWER
3000×1850×1900
4400×2000×1900
POWER OF PREHEATER
kW
95
175
A
131
261
ACTUAL; POWER OF PREHEATER (BASED ON 500ML BOTTLE)
kW
29
59
A
45
90
POWER OF MAIN BLOWER
kW
5
5
WEIGHT OF MAIN BLOWER
T
4
5
MEASUREMENT OF CONVEYER
2500×2000×2750
2500×2000×2750
WEIGHT OF CONVEYER
T
0.2
0.2
HIGH PRESSURE AIR COMPRESSOR UNIT
POWER
kW
22×2
22x3
PRESSURE
MPa
3.0
3.0
DISCHARGING CAPA
m³/min
4
6
LOW PRESSURE AIR COMPRESSOR
POWER
kW
22
22
PRESSURE
MPa
1.25
1.25
DISCHARGING CAPA
m³/min
3.0
3.0
AIR TANK
CAPACITY
m³
0.6
0.6
PRESSURE
MPa
3.0
3.0
WATER CHILLER
COOLING CAPACITY
Kcal/Hr
35200
49800
COMPRESSOR MOTOR
HP
10
15
AIR DRYER
CAPACITY
m³/min
4
6
WORK PRESSURE
MPa
3.0
3.0
OIL FILTER
CAPACITY
m³/min
4
6
WORK PRESSURE
MPa
3.0
3.0
ODOR REMOVAL FILTER
CAPACITY
m³/min
4
6
WORK PRESSURE
MPa
3.0
3.0
AIR FILTER
CAPACITY
m³/min
4
6
WORK PRESSURE
MPa
3.0
3.0

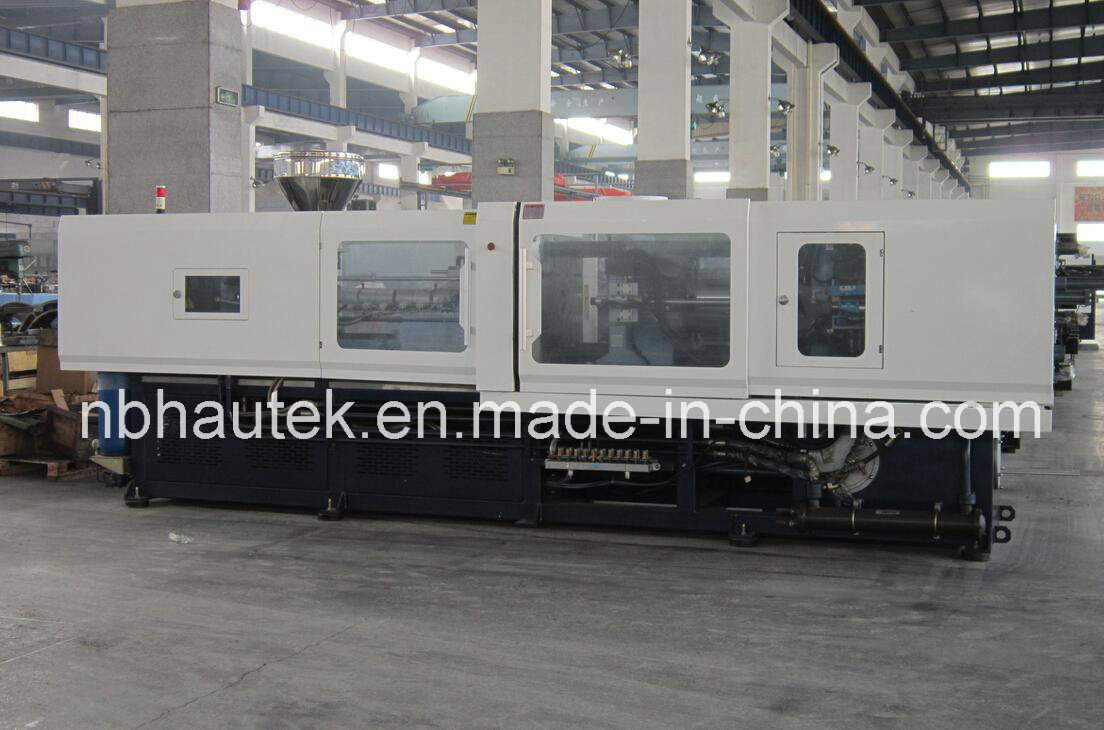

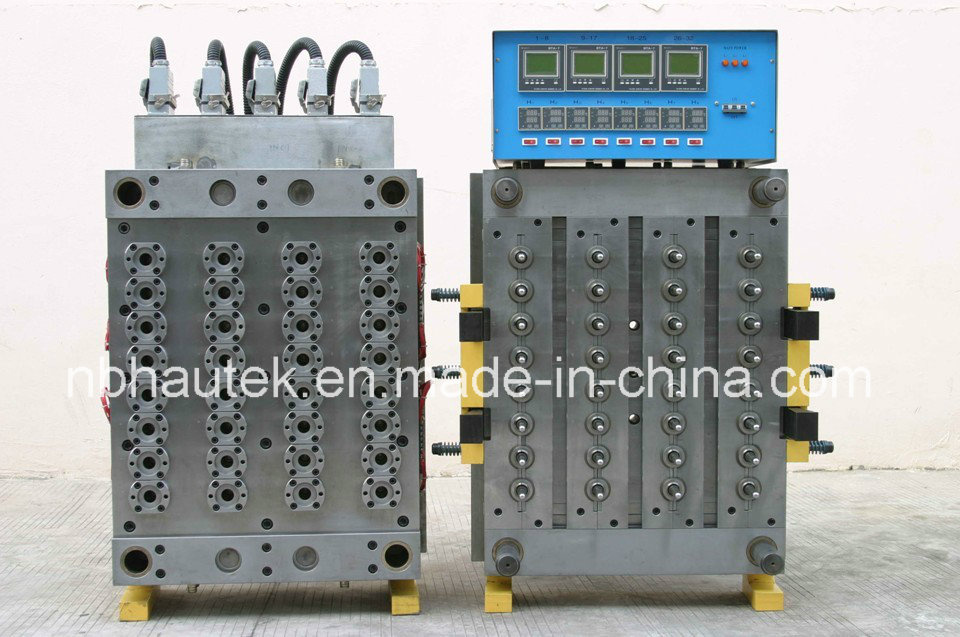

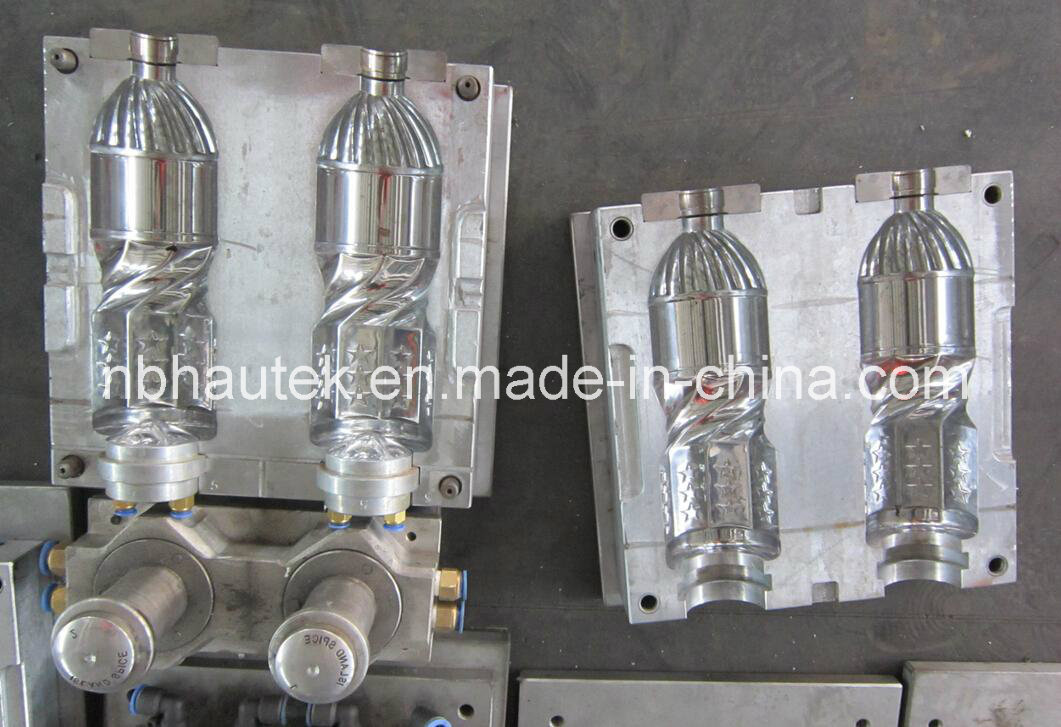

Bottle blowing mold : PET Preform injectio molding machine : Injection mold for PET Preform :
