Model:
Water Tank Type
Drawing Times:
17 Times
Receiving Plate Diameter:
250mm
Raw Diameter:
1.2-1.7mm
Final Diameter:
0.4-0.6mm
Total Compressibility:
87%
Average Compressibility:
15%
Drawing Speed:
420m/Min
Motor Power:
18.5kw
Weight:
2.8t
Type:
LT Water Tank Type Metal Drawing Machine
Usage:
Prestressed Steel Wire
Max.Inlet Wire Dia.:
1.2-1.7mm
Max. Number Of Block:
17
Block Dia.:
250mm
Product Description

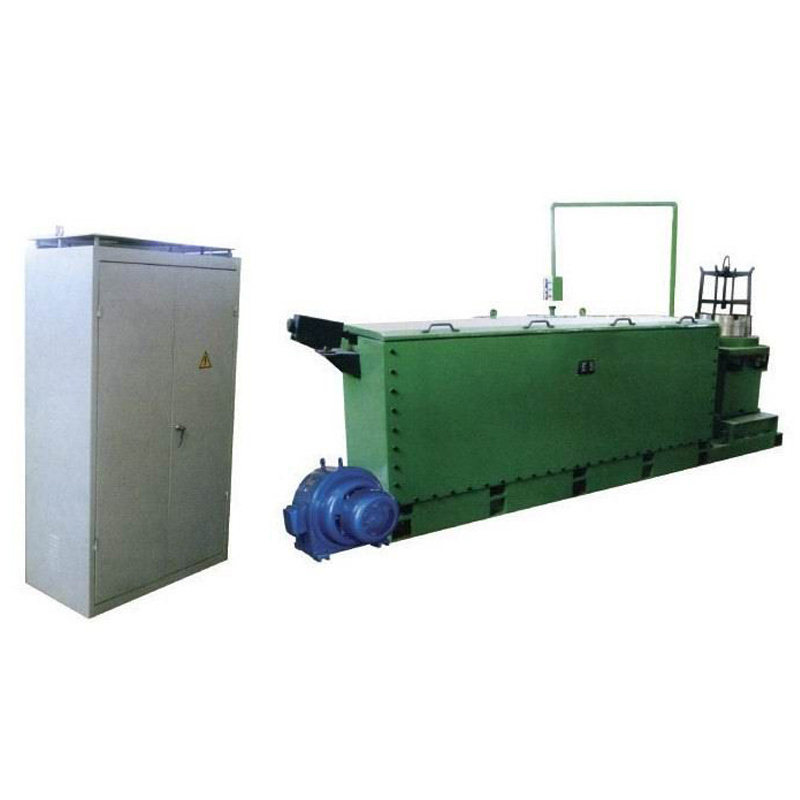

High Speed Wet Wire Drawing Machine (FR-250)
As wire drawing, reduces the diameter of the wire, wire can be reduced diameter by the drawing die.
High Speed Wet Wire Drawing Machine is suitable for (bronze. Stainless steel. Iron. Silver. Aluminum) wire material.
High Speed Wet Wire Drawing Machine is suitable for the ferrous metal wire and non-ferrous wire, it can drawing the thin wire, which is the professional equipment for drawing wire.
Advantage of Wire Drawing Machine 1. Lower noise and durable 2. High speed 3. Good quality, best service
Technical parameter of Wire Drawing Machine
1
Apply to
Metal wire
2
Receiving plate diameter
250mm
3
Drawing times
17 times
4
Raw diameter
1.2-1.7mm
5
Finished diameter
0.4-0.6mm
6
Drawing speed
420m/min
7
Total compressibility
87%
8
Average compressibility
15% one time (according material)
9
Machine motor
18.5kw
10
Supply voltage
380V 50Hz
11
Dimension
2600*1300*1350
12
Weight(reference)
2800kg
Dong Guan Fang Rong Machinery Factory, founded in 2000, is a professional manufacturer that integrates development, production and sale. Fang Rong is special in production thread processing equipment and precision cold drawing machines. In 2005, Fang Rong factory passed the ISO9000: 2001 quality system certification, and received a number of patents. Now, Fang Rong is developing and selling various machines, such as
1) Thread processing equipment:
A, thread rolling machines (rolling machines)
B, threading machines (air pressure, hydraulic)
C, thin tube rolling machines (lamp rolling machines)
D. The whole tooth machines
E. Tapping machines of six-axis
2) Precision cold-drawing equipment:
A, drawing machines,
B, straightening machines,
C. Pointing machines
Over the years, our goal has been to create professional and classic equipment, first-class products and best service to achieve product specialization, service professional and team specialization. After through Fang Rong people's unremitting efforts, our products are very popular at home and abroad. The prime quality and the best service are confirmed and recognized by customers in China and abroad.
