Model:
Water Tank Type
Drawing Times:
5 Times
Receiving Plate Diameter:
200mm
Raw Diameter:
1.0-1.2mm
Final Diameter:
0.23-0.36mm
Total Compressibility:
85%
Average Compressibility:
12%
Drawing Speed:
315m/Min
Motor Power:
7.5kw
Weight:
1.5t
Type:
LT Water Tank Type Metal Drawing Machine
Usage:
Prestressed Steel Wire
Max.Inlet Wire Dia.:
1.0-1.2mm
Max. Number Of Block:
5
Product Description

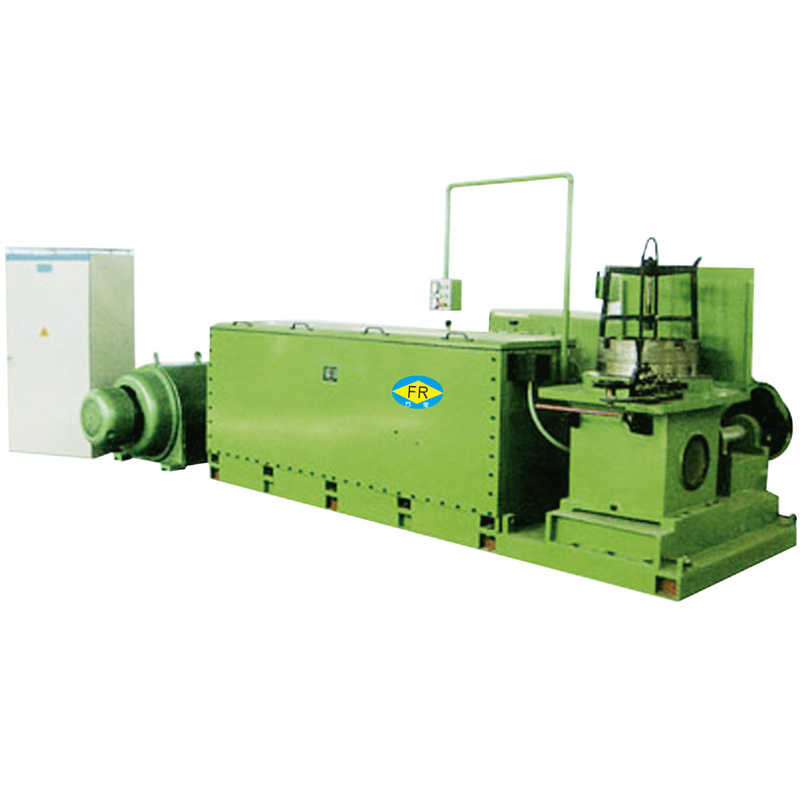

Water Tank Wire Drawing Machine (FR-200)
As wire drawing, reduces the diameter of the wire, wire can be reduced diameter by the drawing die.
Warter Tank Metal Wire Drawing Machine suitable for (bronze. Stainless steel. Iron. Silver. Aluminum) wire material.
Water Tank Wire Drawing Machine is suitable for the ferrous metal wire and non-ferrous wire, it can drawing the thin wire, which is the professional equipment for drawing wire.
Advantage of Water Tank Wire Drawing Machine 1. Lower noise and durable 2. High speed 3. Good quality, best service
Technical parameter of Water Tank Wire Drawing Machine
1
Apply to
Metal wire
2
Raw diameter
1.0-1.2mm
3
Finished diameter
0.48mm
4
Receiving plate diameter
200mm
5
Drawing times
5 times
6
Total compressibility
85%
7
Average compressibility
12% one time (according material)
8
Machine motor
7.5kw
9
Supply voltage
380V 50Hz
10
Dimension
1700*1240*1280
11
Weight(reference)
1500kg
Dong Guan Fang Rong Machinery Factory, founded in 2000, is a professional manufacturer that integrates development, production and sale. Fang Rong is special in production thread processing equipment and precision cold drawing machines. In 2005, Fang Rong factory passed the ISO9000: 2001 quality system certification, and received a number of patents. Now, Fang Rong is developing and selling various machines, such as
1) Thread processing equipment:
A, thread rolling machines (rolling machines)
B, threading machines (air pressure, hydraulic)
C, thin tube rolling machines (lamp rolling machines)
D. The whole tooth machines
E. Tapping machines of six-axis
2) Precision cold-drawing equipment:
A, drawing machines,
B, straightening machines,
C. Pointing machines
Over the years, our goal has been to create professional and classic equipment, first-class products and best service to achieve product specialization, service professional and team specialization. After through Fang Rong people's unremitting efforts, our products are very popular at home and abroad. The prime quality and the best service are confirmed and recognized by customers in China and abroad.
