Production Name:

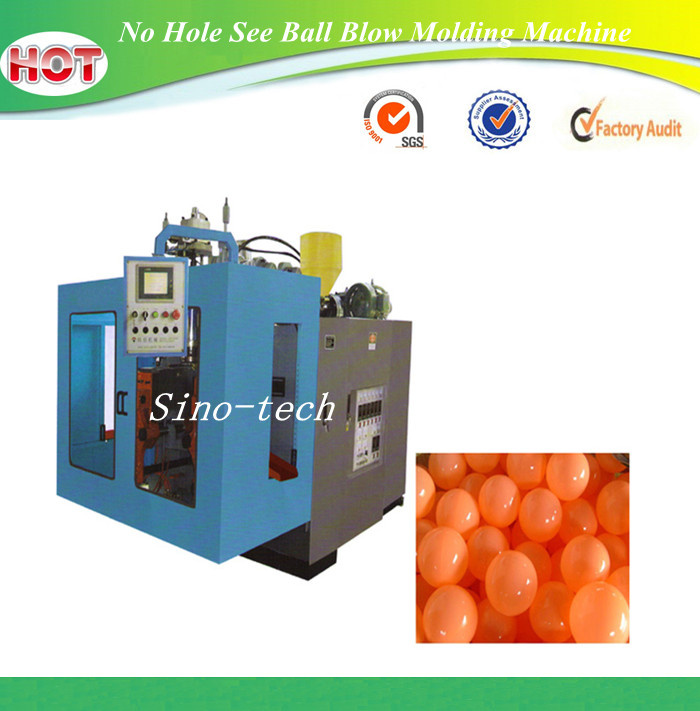

Without Hole See Ball Blow Molding Machine
Usage:
for Plastic Without Hole Ball Blowing
Type:
Extrusion Blow Molding Machine
Raw Material:
LDPE
Making Method Of Parison:
Extrusion-Blow Molding
Automation:
Automatic
Computerized:
Computerized
Certification:
ISO9001:2008
Product Description
Without Hole See Ball Blow Molding Machine Fetures of No hole see ball blow molding machine 1. Double station, six cavities. 2. Fully automatic. 3. Auto deflashing. 4. Balls can fall off automaticly. 5. Special designed of mold 6. First technology in China so far. 7. Can save a lot of labor cost.
SPECIFICATIONS
UNITS
TC75II SERIERS
Max container capacity
L
5
Number of die heads
Set
1
Machine dimension (L*W*H)
M
3.3*2.3*2.6
Total weight
Ton
5.5
CLAMPING UNIT
Clamping force
KN
68
Platen opening stroke
mm
150-500
Platen size
mm
400*450
Max mould size (W*H)
mm
450*440/310*800
Mould thickness
mm
200-350
POWER
Max drive
KW
15
Total power
KW
41
Fan power for screw
KW
0.14*3
Air pressure
Mpa
0.7
Air consumption
M3/min
0.9
Average energy consumption
KW
23
EXTRDER UNIT
Screw diameter
mm
75
Screw L/D ratio
L/D
24
Plasticizing capacity
Kg/hour
80
Number of heating zone
Zone
3
Extruder heating power
KW
14.2
Extruder driving power
KW
18.5
DIE HEAD
Number of heating zone
Zone
3
Power of die heating
KW
5.7
Max die pin diameter
mm
135
Center distance of double die
mm
160
