Name:
XPS Insulation Board Production Line
Application:
Board
Condition:
New
Color:
Customized
Size:
Customized
Delivery Detail:
45-60days
Screw Design:
Single-Screw
Principle:
High-Pressure Air Type
Automation:
Automatic
Computerized:
Computerized
Certification:
ISO9001:2008
Type:
XPS Foamed Board Machine
Raw Material:
XPS
Product Description

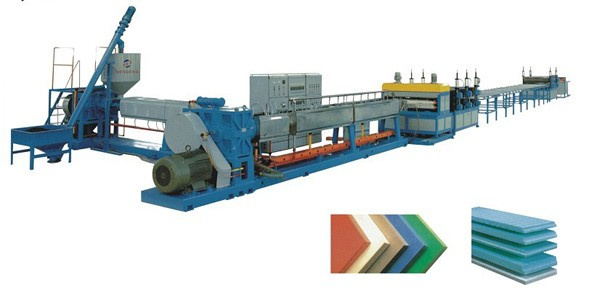

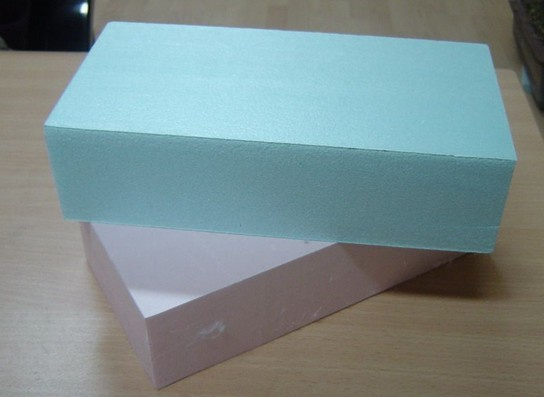

XPS Insulation Board Production Line Application & Features: Comparing with other traditional insulation materials, such as EPS, PU and Rock wool, XPS is impoved in insulation, moisture proof, compressive strength, durability, convenient installation and low cost. As an ideal material, XPS is widely applied to heat preservation and insulation systems, moisture proof and obstruct systems, with promising potential market.
Main configuration: Feeding system/First extruder/Hydraulic mesh exchanger/ Second extruder/Mould/Calibrator/First haul-off unit/Longitudinal cutter/Cross cutter/Second haul-off unit/Controlling system/Packaging system.
ITEM
XPS250
XPS600
Extruder syetem
Set
1st Extruder
2nd Extruder
1st Extruder
2nd Extruder
Screw diameters
mm
135
150
165
200
L/D Radio
L/D
27: 1
33: 1
27: 1
33: 1
Driving Motor Power
kw
75
45
90
75
Heating Power
kw
110
160
Capacity
kg/h
250-300
450-500
Product Width
mm
600(900)
600(900/1200)
Product Thickness
mm
20-60
20-120
Density
Kg/m3
33-39
33-39
Total Power
kw
280
350
