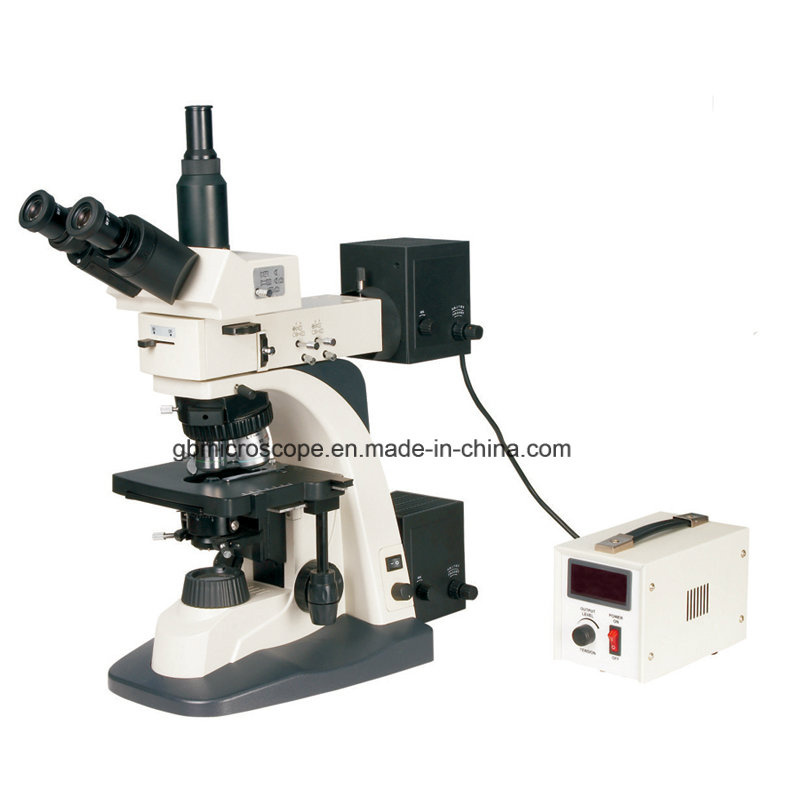

Upright Metallurgical Microscope J158 series:
Description:
Metallurgical Microscope J158 is Developed and Aimed at the Semicondutor Industry, Wafer Manufacture, Electronic Information Industry, Metallurgical Industry, Used as an Advanced Metallurgical Microscope, the User can Experience its Super Performance when observing. It can be Widely Used to Identify and Analyze Semiconductor, FPD, Circuit Encapsulation, Circuit Substrate, Material, Casting, Metal, Ceramic Parts, Precision Moulds. This instrument Adopts Both Reflected and Transmitted Illumination, The Design Meets With The Ergonomics Needs And Makes you Feel Comfortable and Relaxed In Doing Your Job.
Features:
1. Infinite Corrected Optical System Providing Excellent Optical Quality and making Image Perfect..
2. Aspherical Surface Kohler Illumination, Increasing the Viewing Brightness
3. Extra Wide Field Viewing WF10X/25, Long Working Distance Metallurgical Objectives With Brightness and Dark Field.
4. Extending the multiplexing Technology of Objectives, Compatible Infinite Objective with All the Observation Methods, Including BF, DF, Polarization Observation With High Clear and Sharp Images in Each Observation Method.
| Standard Specification | J158 |
Optical System | Infinite Corrected Optical System | √ |
Viewing Head | Compensation Trinocular head inclined at30°, Interpupillary Distance 50-75mm | √ |
Eyepiece | Extra Wide Field EWF10X/22 eyepiece, | √ |
WF10X/20 With Cross hair Reticule 0.1mm | √ |
Micrometer eyepiece | O |
Nosepiece | Backward Quintuple Nosepiece With DIC Jack | √ |
DIC(10X 20X ) | O |
Objectives | Long Working Distance Infinite Plan Achromatic BF/DF Objective 5X/0.1/BF.DF/W.D.: 29.4mm, 10X/0.25/BF.DF/W.D.:16mm, 20X/0.4/BF.DF/W.D.:10.6mm, 40X/0.6/BF.DF/W.D.:5.4mmm | √ |
LWD BF&DF Infinite Plan Achromatic Objective 50X 80X 100X | O |
Focusing System | Coaxial Coarse&Fine Adjustment, Fine Division 0.002mm With Rack&Pinion Mechanism | √ |
Stage | Double Layers Mechanical Stage:190X160, Moving range:80X50mm | √ |
Polarizing Device | Anyalyzer Rotable 360°, Polarizer and Analyzer Can Be Moved Out Of the Optical Path | √ |
Illumination | Epi-Illumination With Aperture Iris Diaphragm and Field Iris Diaphragm, Universal Voltage:AC85-230V, 12V/50W Halogen Lamp, Brightness Adjustable. | √ |
Transmitted Illumination: Universal Voltage:AC85-230V, 12V/50W Halogen Lamp, Brightness Adjustable. | √ |
Checking Tool | 0.01mm Micrometer | √ |
Optional parts | CCD adaptor (1X C-mount port, 0.5x C-mount port) | O |
Specimen Presser | O |
High resolution COMS Digital Camera 1.3MP, 2.0MP, 3.0MP, 5.0MP, 9.0MP with software | O |
Note: "√" Standard Specification, "O" Optional Parts
