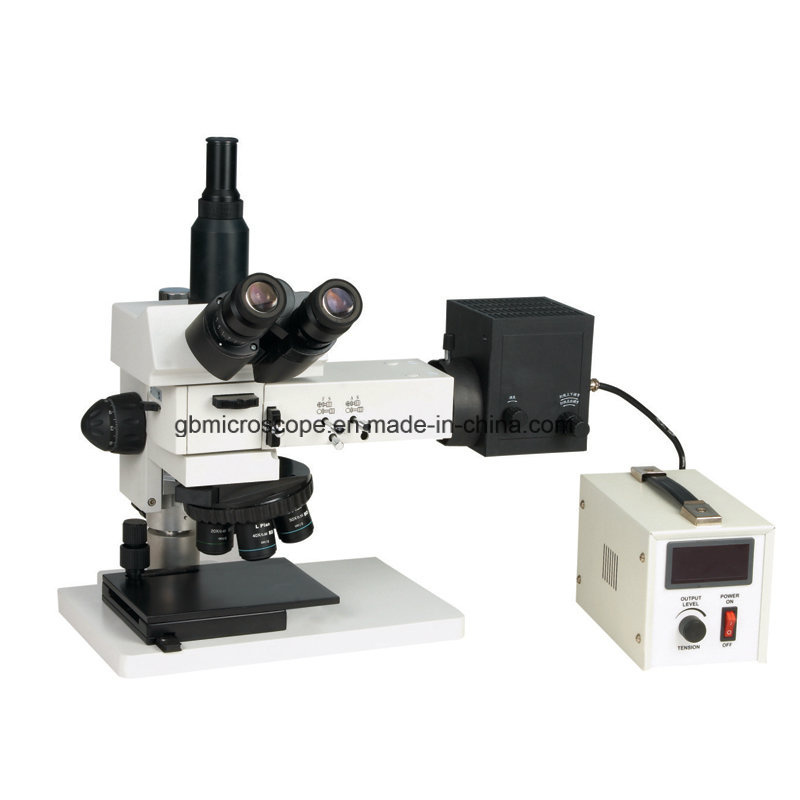

Upright Metallurgical Microscope for Industrial Inspection J607 series:
Description:
The Industrial Metallurgical Microscope J607 is Developed and Aimed At the Semiconductor Industry, Wafer Manufacture, Electronic Information Industry, Metallurgical Industry. Used As an Advanced Metallurgical Microscope, The User Can Experience its Super Performance When Using it. It Can be Widely Used to Identify and Analyze Semiconductor, FPD, Circuit Encapsulation, Circuit Substrate, Material, Casting/Metal/Ceramic Parts, Precision Moulds and Thicker Specimen. High Quality And Reliable Optical System Optical System Brings Much Clearer And Contrast Image. The Design Meets With The Ergonomics needs and make you feel comfortable and relaxed in Doing your Job.
Features:
1. Extending the multiplexing Technology of Objectives, Compatible Infinite Objective with All the Observation Methods, Including BF, DF, Polarization Observation With High Clear and Sharp Images in Each Observation Method.
2. Aspherical Surface Hohler Illumination Increasing the Viewing Brightness.
3. The Nosepiece Can be Equipped With Detachable DIC differential Interference Device.
4. Extra Wide Field Eyepiece 10X up to 22, Long Working Distance Metallurgical Objectives With BF,DF
| Standard Specification | J607 |
Optical System | Infinite Corrected Optical System | √ |
Viewing Head | Compensation Trinocular head inclined at30°, Interpupillary Distance 50-75mm | √ |
Eyepiece | Extra Wide Field EWF10X/25 eyepiece, | √ |
WF10X/20 With Cross hair Reticule 0.1mm | √ |
Nosepiece | Backward Quintuple Nosepiece With DIC Jack | √ |
DIC(10X 20X 40X ) | O |
Objectives | Long Working Distance Infinite Plan Achromatic BF&DF Objective 5X/0.1/BF.DF/W.D.: 29.4mm, 10X/0.25/BF.DF/W.D.:16mm, 20X/0.4/BF.DF/W.D.:10.6mm, 40X/0.6/BF.DF/W.D.:5.4mmm | √ |
LWD Infinite Plan Achromatic Objective 50X 80X 100X | √ |
Focusing System | Coaxial Coarse&Fine Adjustment, Fine Division 0.002mm With Rack&Pinion Mechanism | √ |
Stage | Double Layers Mechanical Stage:190X140, Moving range:50X40mm | √ |
Polarizing Device | Anyalyzer Rotable 360°, Polarizer and Analyzer Can Be Moved Out Of the Optical Path | √ |
Illumination | External Illumination With Aperture Iris Diaphragm and Field Iris Diaphragm, Universal Voltage:AC85-230V, 12V/50W Halogen Lamp, Brightness Adjustable. | √ |
Checking Tool | 0.01mm Micrometer | √ |
Optional parts | CCD adaptor (1X C-mount port, 0.5x C-mount port) | O |
Specimen Presser | O |
High resolution COMS Digital Camera 1.3MP, 2.0MP, 3.0MP, 5.0MP, 9.0MP with software | O |
Note: "√" Standard Specification, "O" Optional Parts
