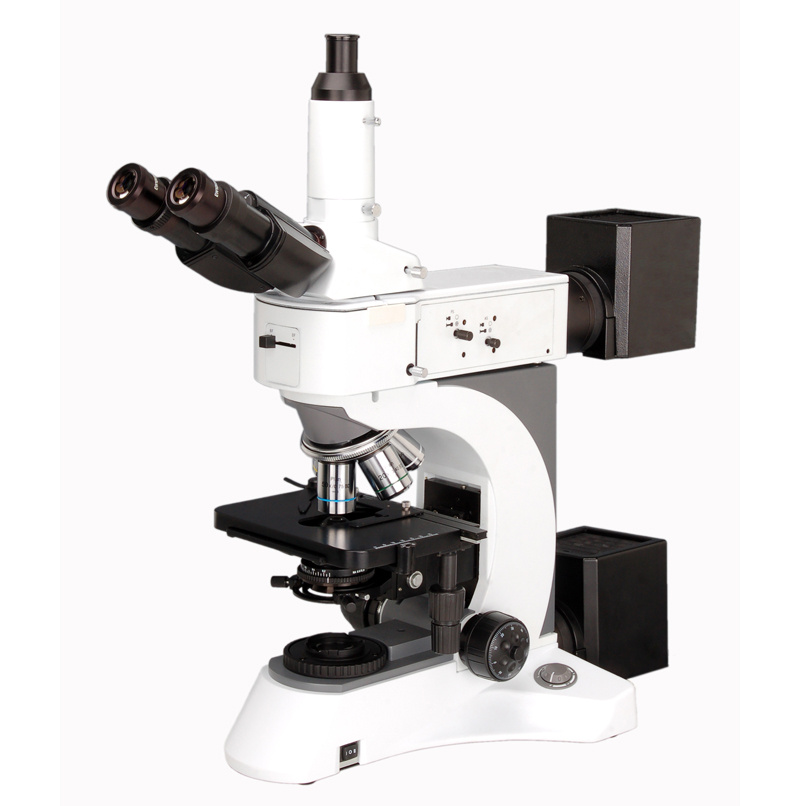

Research Grade Upright Metallurgical Microscope MM800 series:Description:.Metallurgical Microscope MM800 series is Developed and Aimed at the Semicondutor Industry, Wafer Manufacture, Electronic Information Industry, Metallurgical Industry, Used as an Advanced Metallurgical Microscope, the User can Experience its Super Performance when observing. It can be Widely Used to Identify and Analyze Semiconductor, FPD, Circuit Encapsulation, Circuit Substrate, Material, Casting, Metal, Ceramic Parts, Precision Moulds. This instrument Adopts Both Reflected and Transmitted Illumination, The Design Meets With The Ergonomics Needs And Makes you Feel Comfortable and Relaxed In Doing Your Job.and it is also widely used in the field of laboratory material science.
Features:
1. Laboratory metallurgical microscope, including bright field
2. Dark field and polarization observation system.
3. Powerful transmitted and reflected system with Kohler illumination.
4. Ideal instrument for industry inspection and science research
5. A digital camera can be added to the trinocular head to take photos and videos
Darkfield Observation system Polarized light observation
| Standard Specification | 800RF | 800TRF |
Optical System | Infinite Corrected Optical System | √ | √ |
Viewing Head | Compensation Trinocular head inclined at 30°, Interpupillary Distance 48-75mm, | √ | √ |
Compensation Binocular head inclined at 30°, Interpupillary Distance 48-75mm | O | O |
Eyepiece | Extra Wide Field EWF10X/22 eyepiece | √ | √ |
Nosepiece | Backward Quintuple Nosepiece | O | O |
Objectives | Infinite Plan Achromatic Objective 5X/0.12/ /-(Bright Field)WD15.5mm | √ | √ |
Infinite Plan Achromatic Objective 10X/0.25/ /-(BF/DF ) WD10mm | √ | √ |
Infinite Plan Achromatic Objective 20X/0.4/ /0(BF/DF) WD4.3mm | √ | √ |
Infinite Plan Achromatic Objective 50X/0.75/ /0(Bright Field) WD0.32mm | √ | √ |
Infinite Plan Achromatic Objective 100X/0.9/ /0(Bright Field) WD2mm | √ | √ |
Infinite Plan Achromatic Objective 40X/0.65/ /0.17 WD0.35mm | | √ |
Infinite Plan Achromatic Objective 100X/0.9/ /0.17 WD0.13mm | | √ |
Infinite Plan Achromatic Objective 40X/0.6/ /0(BF/DF) WD2.9mm | | O |
Infinite Plan Achromatic Objective 50X/0.75/ /0() (BF/DF) WD0.32mm | | O |
Maximum Sample Hight | 30mm | | √ |
50mm | √ | |
Stage | Nonporous Double Layers Mechanical Stage:186X138, Moving range:74X50mm | √ | |
Double Layer Mechanical Stage 186X138, Moving Range:74X50mm | | √ |
Specimen Preparation Plate | | O |
Glass specimen preparation plate | | √ |
Focusing System | Coaxial Coarse&Fine Adjustment, Fine Division 0.001mm, Moving range:24mm | √ | √ |
Condenser | Swing type condenser NA0.9/0.25, Center Adjustable | √ | √ |
Collector | High Brightness Kohler Illumination with Iris Diaphragm, Aspherical Collector | √ | √ |
Incident Light | AC110V/220V, 24V/100W Halogen Lamp, Brightness adjustable | √ | √ |
Kohler Illumination and aspherical Condenser | √ | √ |
Polarizer and analyzer kit | √ | √ |
Transmitted light | External Illumination, AC220V/110V, 6V/30W Halogen Lamp, Brightness Adjustable. | √ | √ |
Filters | Green, Blue, Yellow, Ground filters | √ | √ |
Optional parts | Specimen Presser | O | O |
Video Adapter with C mount 1X | O | O |
High resolution Digital Camera Series:3.0MP, 5.0MP, 9.0MP with software | O | O |
Note: √ Standard Specification, o Optional Parts
