Automobile and Motorcycle Accessories Gravity Die Casting Machine Jd700

Automobile and Motorcycle Accessories Gravity Die Casting Machine Jd700
Price: US $ 14300-14500set
Trade Terms: FOB
Min Order: 1set
Pay Type: L/C,T/T

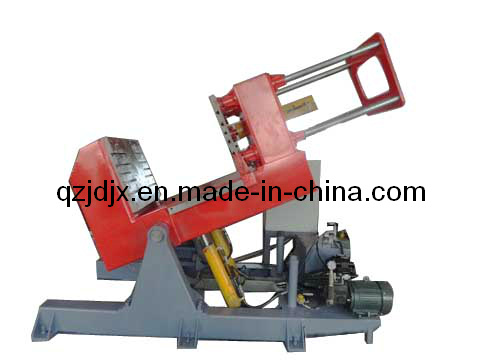

Aluminum Gravity Die Casting Machine JD700

I. Introduction
1. Application
Tilt Aluminum Gravity Die Casting Machine JD700 is a machine which is used in casting not only aluminum but also zinc and some other metals. For brass and copper casting, please refer to our products Gravity Die Casting Machine JD-AB500 and JD-AB400.

2. Machine components
The machine consists of three parts, such as mechanical part, hydraulic part and electrical part. Material used in mechanical part is well-selected steel. Both pneumatic and electrical part use products of world-famous brands. Therefore we can assure you that our products are of high quality.

3. Main specifications and technical parameters:
1) The mould specification: 700*600 mm
2) Minimum stroke of mould clamping: 350 mm
3) Maximum stroke of mould clamping: 700mm
4) Turning angle: 0-90 deg
5) Stroke of top mould: 100mm
6) Stroke of core- pulling: 100 (designed as requied)
7) Output volume of plunger pump: 37.8CC/ rev
8) System pressure: 0-10 PA
9) Motor power: 3.75kw
10) Vertical stroke: 350 (90* 350)mm
11)Flipping stroke of oil cylinder (80* 360): 360mm
12) Top oil cylinder stroke 100X100: 100mm
13) Top oil cylinder stroke 80X100: 100mm (the stroke of the oil cyliinder is adjustable )

II. About the after- sale services
In the meantime, we own strong administrant and technical teams to ensure that our innovation and improvement ability can keep up with changeable market requirements. In order to satisfy our customers better, we can also make machines according to our customers' specific needs.

Our after-sale service is prompt and patient. Once you place an order, we are willing to give you support in installment and labor training. During the production period, if you meet any problems that you are not able to deal with, you could contact us. We will try our best to help.

For Tilt Aluminum Gravity Die Casting Machine we have several models, like JD-550, JD-600, JD-700, JD-800, JD-950, etc. It's specification varies per different customers' requiements.
Main specifications and technical parameters
1The mould specification700*600 mm
2Minimum stroke of mould clamping350mm
3Maximum stroke of mould clamping700mm
4Turing angle0-90 deg
5Stroke of top mould100mm
6Stroke of core- pulling100 (designed as requied)
7Output volume of plunger pump37.8cc/ rev
8System pressure0-10 pa
9Motor power3.75kw
10Vertical stroke350 (90* 350)mm
11Flipping stroke of oil sylinder (80* 360)360mm
12Top oil cylinder stroke 100x100100mm
13Top oil cylinder stroke 80x100100mm (the stroke of the oil cyliinder is adjustable )

Prod Model: JD700
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
The Mould Specification: 700mm*600mm
Minimum Stroke Of Mould Clamping: 350mm
Maximum Stroke Of Mould Clamping: 700mm
Turning Angle: 0°-90°
Stroke Of Top Mould: 100mm
Stroke Of Core-Pulling: 100
Output Volume Of Plunger Pump: 37.8cc/Rev
Motor Power: 3.75kw
Vertical Stroke: 350 (90* 350)mm
Flipping Stroke Of Oil Sylinder (80* 360: 360mm
"Jingda Machinery" is the brand of Quanzhou Jinglong Machinery Company. We are a complete sets of sanitary plumbing equipments manufacture specially in technical process guidance, mold designing, on-site staff training services.

Main products: Gravity Casting Machine, Double Automatic Core Shooting Machine, Vertical Core Shooting Machine, Sand Mixing Machine, Biaxial Composite Machine, Low Pressure Casting Machine, Zinc Alloy Casting Machine, Pneumatic Clamps, Surface Lapping Machine etc.

We offer free professional technician training service to help technicians in well mastering the equipment operation and achieving the expectation.
We always abode by its principle of "the quality of survival, technology for development". Through constantly creating, hard-working and innovation to create superior products, improve company's strength and perfect the market system. We are dedicated to provide customers with comprehensive after-sales services. We will hold hand by hand with all customers home and abroad to create more achievements with our best sincerity.
