Metal Components Machine Gravity Die Casting Machine

Metal Components Machine Gravity Die Casting Machine
Price: Negotiable/Set
Trade Terms: FOB
Min Order: 1/Set
Pay Type: L/C,T/T
JD-AB500 Gravity Die Casting Machine

1. Application

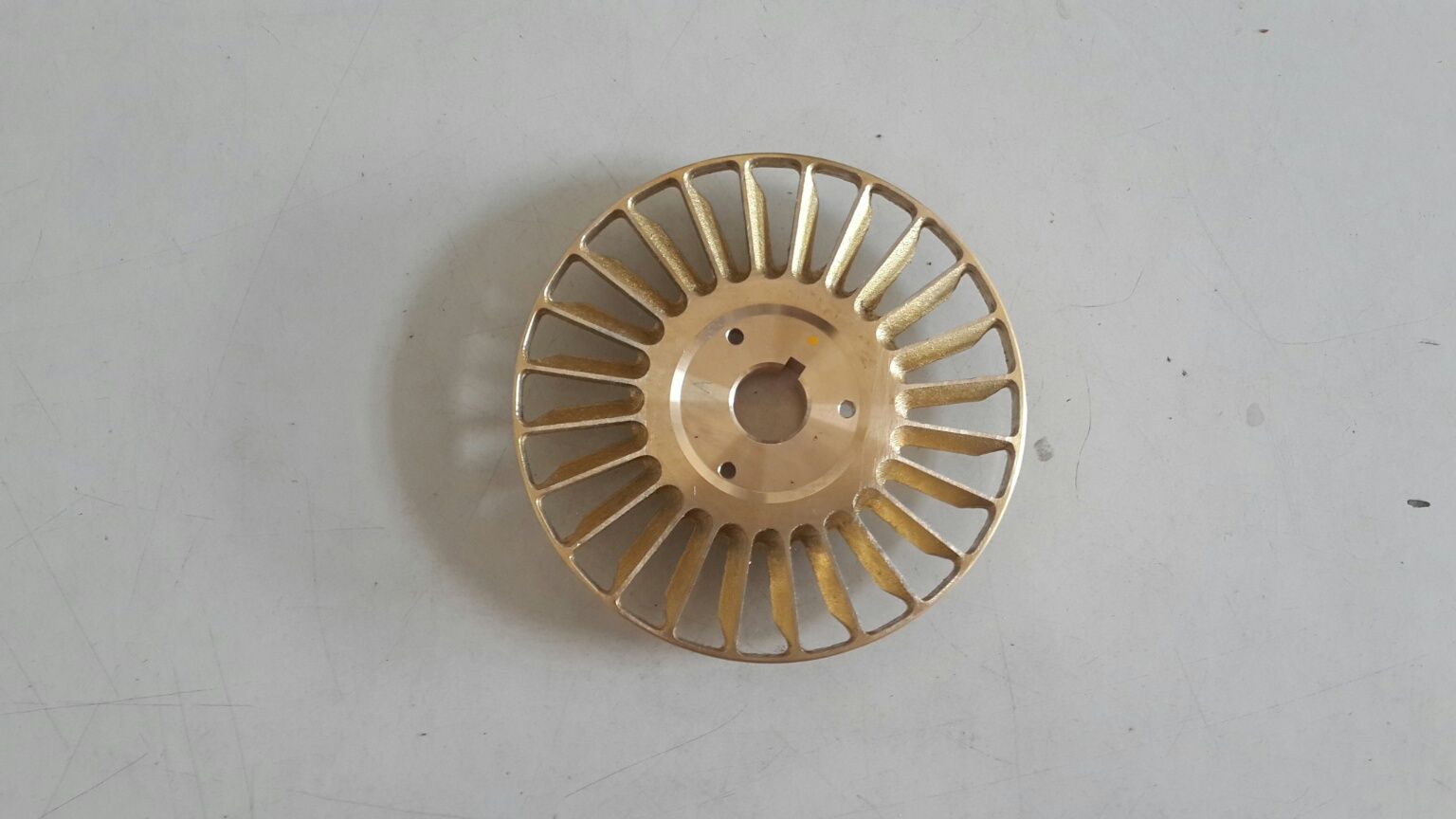

JD-AB500 Gravity Die Casting Machine is used for producing copper alloy casting of large and medium size or casting of small size whose molds contains several cavities.

Compared with traditional foundry casting technology, gravity die casting technology is more advanced and safe. It can increase productivity and reduce labor pressure. It will cause low pollution and little noise. It's operation is also easy to master. Copper consumption and rate of spoiled product are low.

2. Machine components

The machine consists of three parts, such as mechanical part, pneumatic part and electrical part. Material used in mechanical part is well selected steel. Both pneumatic part electrical part use products of world-famous brands. Therefore we can make sure our machine's quality is high.

3. Main specifications and technology parameters:

1). Maximum outlined diameter of mold: 500mm
2). Maximum weight of mold: 150kg
3). Maximum distance of mold base plate: 510mm
4). Maximum clamping stroke: 270mm
5). Angle range of measured-cast: 0-90
6). Angle range of pre-cast: 0-110
7). Angle range of mold immersion: 0-90
8). Oil pressure: 50-70bar
9). Power capacity: 3.75+0.75+0.75kw
10). Three phase power: 380V/50Hz
11). Oil tank capacity: 220L
12). Volume of mold immersion tank: 375L+375L
13). Equipment net weight: 2000kg
14). Equipment maximum outlined size: 1650mm*2300mm*1720mm

4. About the after-sale services

In the meantime, we own strong administrant and technical teams to ensure that our innovation and improvement ability can keep up with changeable market requirements. In order to satisfy our customers better, we can also make machines according to our customers' specific needs.

Our after-sale service is prompt and patient. Once you place an order, we are willing to give you support in installment and labor training. During the production period, if you meet any problems that you are not able to deal with, you could contact us. We will try our best to help.
                                                      Main specifications and technical parameters
 maximum outlined diameter of mould 500mm
 maximum weight of mould 150kg
 maximum distance of mould base plate 510mm
 maximum clamping stroke 270mm
 angle range of measured-cast 0°-90°
 angle range of pre-cast 0°-110°
 angle range of mould immersion 0°-90°
 oil pressure 50-70bar
 power capacity 3.75+0.75+0.75kw
 three phase power 380V/50Hz
 oil tank capacity 220L
 volume of mould immersion tank 375L+375L
 equipment net weight 2000kg
 equipment maximum outlined size(L*W*H) (1650*2300*1720)mm

Prod Model: JD-AB500
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Size: 1650mm*2300mm*1720mm
Net Weight: 2000kg
Maximum Weight Of Mold: 150kg
Maximum Outlined Diameter Of Mold: 500mm
"Jingda Machinery" is the brand of Quanzhou Jinglong Machinery Company. We are a complete sets of sanitary plumbing equipments manufacture specially in technical process guidance, mold designing, on-site staff training services.

Main products: Gravity Casting Machine, Double Automatic Core Shooting Machine, Vertical Core Shooting Machine, Sand Mixing Machine, Biaxial Composite Machine, Low Pressure Casting Machine, Zinc Alloy Casting Machine, Pneumatic Clamps, Surface Lapping Machine etc.

We offer free professional technician training service to help technicians in well mastering the equipment operation and achieving the expectation.
We always abode by its principle of "the quality of survival, technology for development". Through constantly creating, hard-working and innovation to create superior products, improve company's strength and perfect the market system. We are dedicated to provide customers with comprehensive after-sales services. We will hold hand by hand with all customers home and abroad to create more achievements with our best sincerity.
