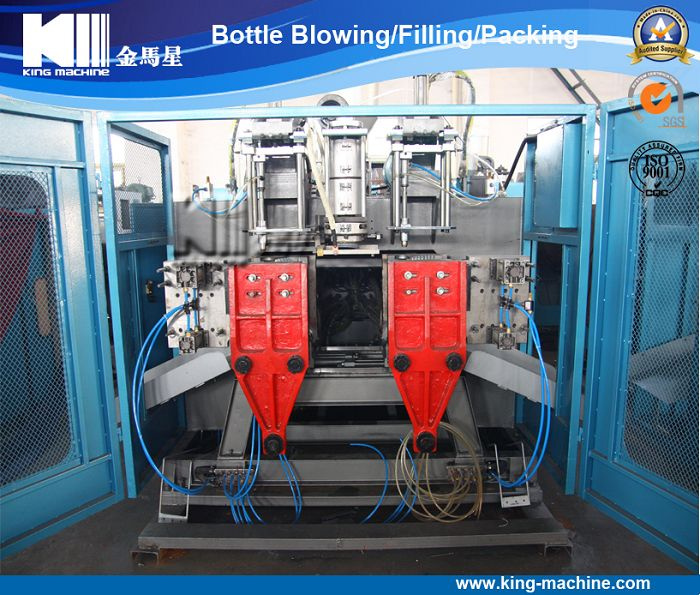

Blowing Moulding Machine (JMX75D)
Blow plastic machine/blow moulding machine/blow cans machine/blow bottle machine/blow molding machine
This machine max produce 5liter. Making technique standard process, safety, stability, easy to operate.
Control system; Mitsubishi PLC+imported HMI+temperature controller+imported electronic parts.
Hydraulic system: Imported +ptopotyional control.
Power: Automatic control, high efficiency, low power consumption.
| Parameters |
| Specifications | unit | JMX75 single station |
| Material |
| PP. LDPE. HDPE^. |
| Max container capacity | L | 10~20 |
| Number of die | set | 1 |
| Output(dry Cycle) | pc/hr | 320 |
| Actual output | pc/hr | 65pcs/20L
72pcs/10L |
| Machine Dimension(L×W×H) | M | 4.0x3.9x2.8 |
| Total weigh | ton | 10.5 |
|
| Clamping Unit |
| JMX75 single station |
| Clamping force | KN | 200 |
| Platen opening stroke | mm | 350--800 |
| Platen size | mm | 780x960 |
| Max mould size(W×H) | mm | 600x550-450x1000 |
| Mould thickness | mm | 360-450 |
|
| Power |
| JMX75 single station |
| Max drive | KW | 48.5 |
| Total power | KW | 86 |
| Fan power for screw | KW | 0.9 |
| Air pressure | Mpa | 1.0 |
| Air consumption | m³/min | 0.9 |
| Average energy consumption | KW | 28 |
|
| Extruder unit |
| JMX75 single station |
| Screw diameter | mm | 75 |
| Screw L/D ratio | L/D | 25 |
| Plasticising capacity | Kg/hr | 105 |
| Number of heating zone | zone | 4 |
| Extruder heating power | KW | 16 |
| Extruder driving power | KW | 30 |
| Rotate speed of screw | rev / min | 9-87 |
| Drive Form |
| transducing speed |
| Speed-down Box |
| Alloy steel gear |
| Screw barrel material |
| 38CrMoAlA(High quality steel) |
| Screw bolt head |
| plating horniness alloy steel |
| heater |
| Casting Aluminium heater |
|
| Die |
| JMX75 single station |
| Max accumulator Volume | L | 4.8 |
| Max feeding speed | kg/sec. | 1.5 |
| Number of heating zone | zone | 3~5 |
| Power of die heating | KW | 18 |
| Max die-pin diameter | mm | 230 |
| (MOOG)Thickness reference point | moog | 30 |
| Diehead structure |
| Storing material jar |
| flowing form |
| First by first element |
| mainly forming part material |
| 38CrMoAlA42CrMo |
|
| Power supply |
| JMX75 single station |
| Voltage | V | 380/50HZ |
| Voltage wave range | % | ±5 |
|
| Parts list |
| Electrical Equipment |
| JMX75 single station |
| Touch screen man-machine interface |
| HITECH/Taiwan |
| PLC |
| MITSUBISHI/Japan |
| Transducer |
| MITSUBISHI/Japan |
| Temperature controller |
| OMROM/Japan |
| Low pressure electrical |
| YangMing |
| Air Switch |
| Schneider/France |
| electronic rule |
| GEFRAN/Itlay |
| Relay |
| Schneider/France |
| Button Switch |
| Schneider/France |
| Electricity machine |
| SIEMENS/Germany |
| Contactor |
| Schneider/France |
| Hydraulic Pressure Part |
| JMX75 single station |
| Oil pump |
| YUKEN/Japan |
| Hydraulic pressure valve |
| YUKEN/TAIWAN |
| Hydraulic pressure tube |
| KIMBERLEV |
| Air-proof |
| VALAVA/Japan |
| Oil tube connector |
| lianhui/TAIWAN |
| Air Drive Part |
|
|
| Air diver component |
| AIRTAC/TAIWAN |
