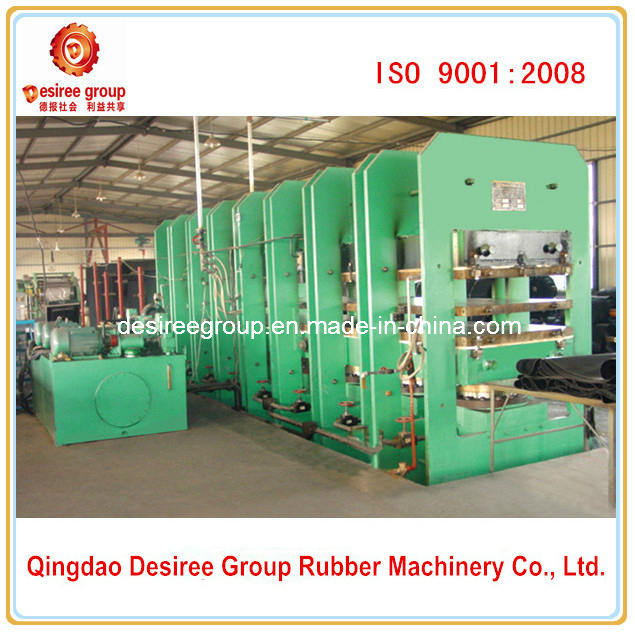

Conveyor Belt Vulcanizing Machine
------Manufactured by Qingdao Desiree Group Rubber Machinery Co., Ltd.
Features:
1. Adopts PLC control:
Can realize many auto works, such as: Mould closing, air exhausting, temperature control, vulcanization timing, alaming lize. The touch screen will timely show the temperature of the heating platen at each heating zone.
2. The hydraulic cylinder is made of ZG270-500.
The ram is made of close-grained chilled alloy cast iron by casting and fine grinding.
The hydraulic cylinder is well sealed by YX shape sealing ring.
3. Hydraulic pressure system:
We adopt the famous brand hydraulic pressure station from the domestic and abroad, under the controlling of PLC, it can realize the auto mould closing, air exhausting and load discharging when opening mould.
Advantages:
1. High speed open/close mold, stable pressure, good control in vulcanizing time and temperature.
2. Automatic and manual operation system, design by your order.
3. Stabile performance, good quality and reliable service.
Our Services:
1. One year warranty and lifetime technical support.
2. Engineers available to service machinery overseas.
3. Any demand, we will give feedback within 24hours.
Any question, please feel free to contact with me.
Welcome to make a field inspection of our factory.
The following parameters are normal technical parameters for conveyor belt production line. You can tell us your request, then we design the suitable production line for you.
|
Vulcanizing Machine Model No. |
XLB-1400X5700X2 |
XLB-1400X10000X1 |
XLB-1600X10000X2 |
XLB-1800X8000X2 |
XLB-1800X12000X2 |
XLB-2000X10000X1 |
|
Plate size(mm) |
1400X5700 |
1400X10000 |
1600X10000 |
1800X8000 |
1800X120000 |
2000X10000 |
|
Total pressure(MN) |
25 |
49 |
56 |
51 |
74 |
70 |
|
Pressure unit of platen(MPa) |
3.13 |
3.5 |
3.5 |
3.54 |
3.4 |
3.5 |
|
Ram. Dia. |
360 |
450 |
450 |
600 |
500 |
600 |
|
Ram number |
10 |
20 |
18 |
12 |
18 |
16 |
|
Max. ram stroke(mm) |
400 |
300 |
400 |
600 |
400 |
300 |
|
Clamping force(MN) |
0.72 |
0.9 |
1.2 |
1.2 |
1.2 |
1.2 |
|
Tensioning force(MPa) |
0.6 |
0.8 |
1.1 |
1 |
1.1 |
1 |
|
Steam pressure(MPa) |
0.63 |
0.63 |
0.63 |
0.63 |
0.63 |
0.63 |
|
Pressure of cooling water(MPa) |
0.3 |
0.3 |
0.3 |
0.3 |
0.3 |
0.3 |
|
Control system |
PLC |
PLC |
PLC |
PLC |
PLC |
PLC |
