Extrusion Blow Moulding Machines extrusion continuous screen changer
Why do we need to use the screen changer/ melt filter on the non-woven fabric extrusion machine?

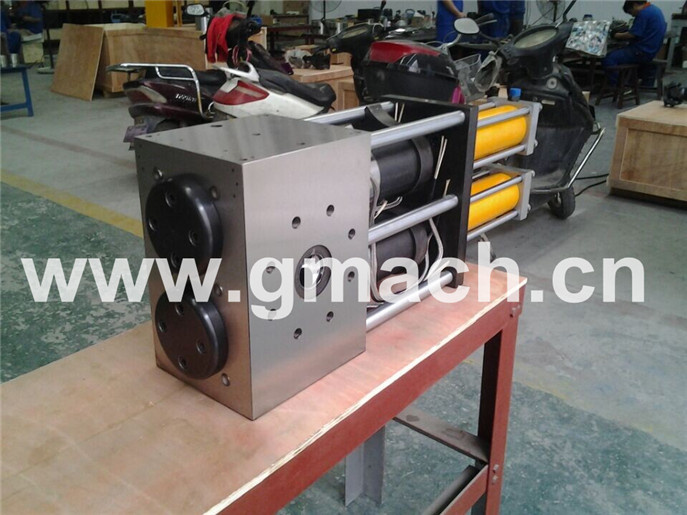

In nonwovens manufacture it is necessary to achieve a uniform spinning quality across all spin packs. Therefore, any in homogeneities must be removed before they enter the spinning beam. Moreover, process consistency regarding pressure and temperature is the basic prerequisite for an efficient production. Our GT-DP-R series double-piston continuous screen changer is widely used on spun bond and melt-blown nonwovens production lines
Benifits of this GT-DP-R seriespolymer melt filter
1, Eliminates line shutdown thus increasing production
2, Leakage-free process
3, Two breaker plates design increases filtration area compared to single breaker plate design
4, Reduced downtime & scrap
5, Reduced inlet pressure at extrusion die
6, Reduced temperature variations in the melt ·
The structures and parameter data of GT-DP-R series of polymer melt filter
1)The main body of the screen changer
Raw material: Alloy steel(38CrMoAlA)
Surface treatment: Nitriding treatment
Depth of Nitrated Layer: 0.40-0.70mm
Nitrided hardness: 950-1050Hv
Fragility of nitration: Less than grade 1
Flow channel treatment: Chrome plated
Depth of chromium-plating: 0.05-0.1mm
Hardness of surface after chromium-plating: HV950HV
2)Drive system: Hydraulic unit:
Hydraulic unit
3)Control system
Electrical controlling system: Warnning device, pressure and temperature transducer, are included, and this part is optional by customers
Application fields
Cast film (Bubble pack\ Medical\Food Wrap)
Sheet (Foam\Strapping\Plastic cardboard)
Coating (Hot melt adhesive)
Pipe (Corrugated\Gas Pipe) and profile
Compounding (Master Batch\filler)
Wire and cable extrusion
Tubing (Medical\ Industrial\Irrigation)
Fibers (Monofilament)
Pelletizing (strands and underwater)
Recycling of most polymers
Commissioning
At the requirement of customer, seller should send technicians to install and debug the screen changer to the die at site of Buyers, Travelling expenses and accommodation fee should be borne by Buyers.
Warranty
"three guarantees"(return, replacement, repair) of all the spare parts for one year. Travelling expenses and accommodation fee for"three guarantees" will be borne by users.
Type |
Screen D&A
| (mm)
overall dimension |
Heating power
(KW)) |
Output
(kg/h) |
| (mm) | (CM²) | L | W | H | L1 |
|
|
| GM-DP-R-80 | Φ60 | 28x2 | 180 | 170 | 280 | 700 | 2.4/3.2 | 30-180 |
| GM-DP-R-100 | Φ80 | 50x2 | 220 | 200 | 320 | 810 | 3.5/4.7 | 80-280 |
| GM-DP-R-120 | Φ100 | 78x2 | 250 | 220 | 360 | 970 | 5.0/7.2 | 220-480 |
| GM-DP-R-155 | Φ130 | 113x2 | 320 | 270 | 450 | 1100 | 8.2/11.1 | 300-700 |
| GM-DP-R-170 | Φ145 | 165x2 | 370 | 310 | 480 | 1320 | 9.4/12.7 | 400-1100 |
| GM-DP-R-195 | Φ165 | 214x2 | 400 | 380 | 550 | 1470 | 10.2/13.8 | 650-1500 |
| GM-DP-R-220 | Φ180 | 254x2 | 440 | 410 | 590 | 1620 | 13/17.5 | 800-1800 |
:,.
Remark: As the above specification is subject to change without prior notice |
Zhengzhou Great Machinery Co., Ltd is a company focus on the design and research of hydraulic screen changer, melt pump and extrusion dies. Gmach is a young company but has a large number of senior technicians, the deep technical background and full of passion work team determine it is standing on a high starting point. We do not just supply you the products, but also provide the solution to solve the problem.
We are committed to provide you the best products with ever improving design, strict production and quality control. Strong professional technical team provides you the perfect pre-sales and post-sales services.
Gmach's mission: Commit to plastic extrusion field, develop the environment friendly product, create a well-known brand at home and abroad
Now we have the following products
1, Plate type hydraulic screen changer GM-SSP series
2, Double plate type screen changer GM-DSP series
3, Double piston type continuous screen changer GM-DP-R series
4, Plate type continuous screen changer GM-R series
5, Automatic screen changer GM-ACB series
6, Large filtration area continuous screen changer GM-DP-L series
7, Spining pump
8, extrusion melt gear pump
9. Chemical pump
10, plastic recycling machine
11, plastic granules making mahcine pelletizing line
