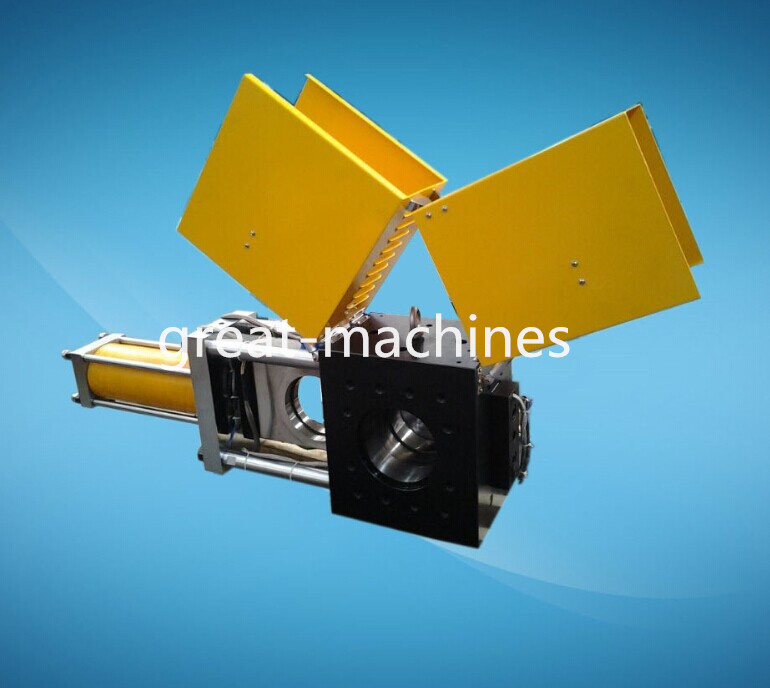

Melt filter for plastic extrusion machine
The structure of this type of melt filter for plastic extrusion machine
1)Main body :the raw material is 38CrMoAlA.

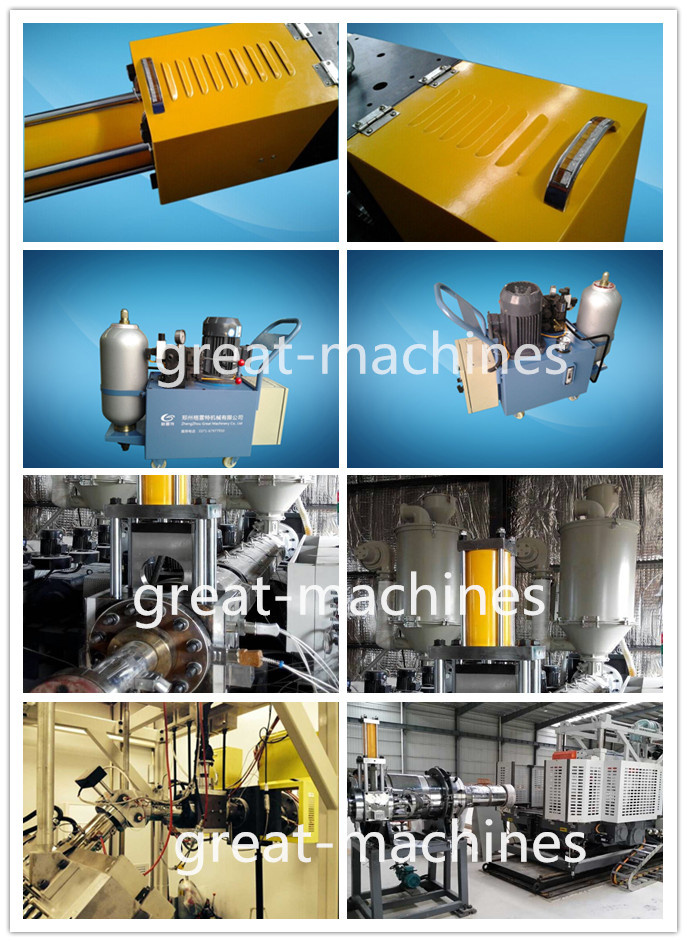

2)Drive system:hydraulic unit.
3)Electric controlling system: optional.
Features of this type of melt filter for plastic extrusion machine
1) Filtration screen diameter ranges from 70-320mm
2) With highly precise design, the screen has good abrasive resistant, high pressure performance, ensuring large effective filtration area and improving filtration effect.
3) It works well even under high temperature up to 300 ºC and high pressure up to 50 MPa
4) screen changing time is less than 2 seconds with pressure accumulator
Advantages
1) Affordable price and proven technology ,easy operation
2) Leak free mold, the special leakproof sealing system guarrantee its long service life
3) Flexible installation way, this type of melt filter can be installed in any direction and do not effect its high performance
4) Several sets of melt filter can be drived by only one set of hydraulic unit , thus save the cost and maximum use the limited space.

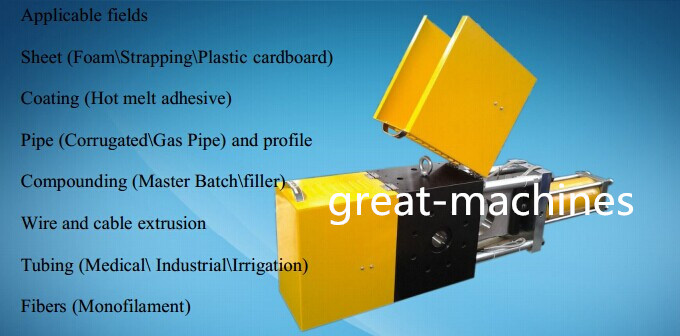

Application fields
| Type | Screen D&A
| overall dimension ( mm ) | Heating power
( KW ) | Output
(kg/h) |
| (mm) | ( CM² ) | L | W | H | L1 |
|
|
| GM_SSP - 70 | Φ70 | 38 | 200 | 170 | 240 | 820 | 3.5/5.8 | 80-200 |
| GM_SSP - 100 | Φ100 | 78 | 220 | 185 | 280 | 930 | 4.5/6.8 | 150-350 |
| GM_SSP - 120 | Φ120 | 113 | 260 | 205 | 320 | 1010 | 5.2/7.2 | 220-350 |
| GM_SSP - 150 | Φ150 | 176 | 300 | 235 | 360 | 1140 | 6.5/8.5 | 350-800 |
| GM_SSP - 180 | Φ180 | 254 | 320 | 245 | 360 | 1200 | 7.6/9.5 | 550-1250 |
| GM_SSP - 200 | Φ200 | 314 | 360 | 280 | 420 | 1300 | 8.5/11 | 650-1500 |
| GM_SSP - 250 | Φ250 | 490 | 450 | 300 | 430 | 1520 | 9.5/12 | 800-2500 |
| GM_SSP - 300 | Φ300 | 706 | 520 | 380 | 500 | 1660 | 11.5/15.5 | 1200-3500 |
| GM_SSP - 320 | Φ320 | 803 | 560 | 400 | 560 | 1700 | 13/17.5 | 1500-4000 |
| Remark: As the above specification is subject to change without prior notice |
Zhengzhou Great Machinery Co., Ltd is a company focus on the design and research of hydraulic screen changer, melt pump and extrusion dies. Gmach is a young company but has a large number of senior technicians, the deep technical background and full of passion work team determine it is standing on a high starting point. We do not just supply you the products, but also provide the solution to solve the problem.
We are committed to provide you the best products with ever improving design, strict production and quality control. Strong professional technical team provides you the perfect pre-sales and post-sales services.
Gmach's mission: Commit to plastic extrusion field, develop the environment friendly product, create a well-known brand at home and abroad
Now we have the following products
1, Plate type hydraulic screen changer GM-SSP series
2, Double plate type screen changer GM-DSP series
3, Double piston type continuous screen changer GM-DP-R series
4, Plate type continuous screen changer GM-R series
5, Automatic screen changer GM-ACB series
6, Large filtration area continuous screen changer GM-DP-L series
7, Spining pump
8, extrusion melt gear pump
9. Chemical pump
10, plastic recycling machine
11, plastic granules making mahcine pelletizing line
