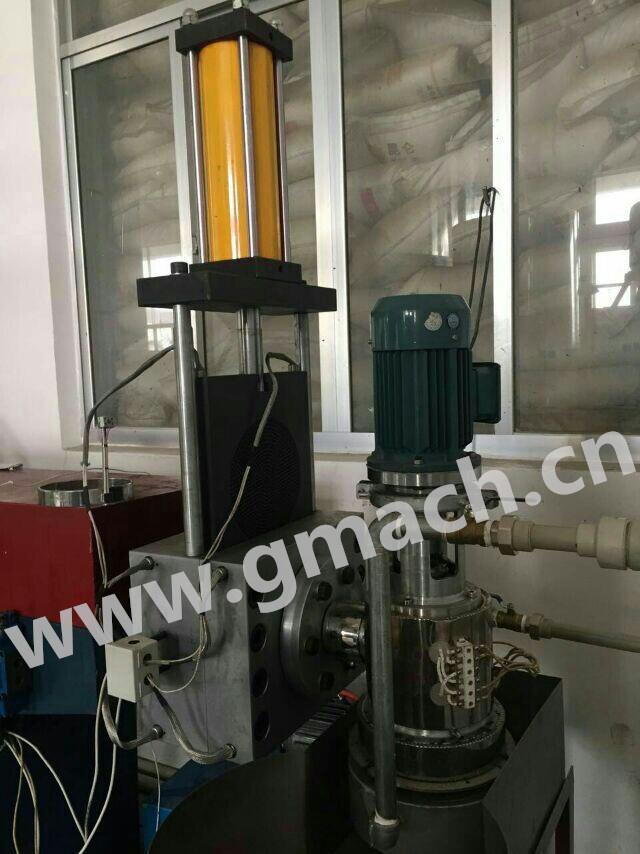

Extrusion screen changer /melt filter for film blowing machine
Benefits
1) High operational reliability
2) Leak-free mold of operation
3) Easy access and less interference for the operator
4) Continuous operation without machine shut down
The structure of this GT-SSP series of screen changer/ melt filter
1) The main body of the screen changer
Raw material: 38CeMoAlA
Depth of Nitrated Layer: 0.40-0.70mm
Hardness of nitration:950-1050Hv
Fragility of nitration: Less than grade 1
The flow channel: chroming treatment
2) Breaker plate: two pieces or more
3)Drive system:hydraulic unit with accumlator
4)Electrical controlling pack(optional) , this part is desired by the customers.
Application fields
1,Applicable to the production of various thermoplastic, chemical fiber, rubber, colossal, adhesive, coating and finishing materials alike, mainly used for filtration of the material mixture.
2,Such as blow-molding machines, film blowing machines, GRP processing machinery, granulators, Styrofoam machines, extrusion machines, plastic product making machines
Type | Screen D&A
| overall dimension(mm) | Heating power
(KW) | Output
(kg/h) |
| (mm) | (CM²) | L | W | H | L1 |
|
|
| GM_SSP-70 | Φ70 | 38 | 200 | 170 | 240 | 820 | 3.5/5.8 | 80-200 |
| GM_SSP-100 | Φ100 | 78 | 220 | 185 | 280 | 930 | 4.5/6.8 | 150-350 |
| GM_SSP-120 | Φ120 | 113 | 260 | 205 | 320 | 1010 | 5.2/7.2 | 220-350 |
| GM_SSP-150 | Φ150 | 176 | 300 | 235 | 360 | 1140 | 6.5/8.5 | 350-800 |
| GM_SSP-180 | Φ180 | 254 | 320 | 245 | 360 | 1200 | 7.6/9.5 | 550-1250 |
| GM_SSP-200 | Φ200 | 314 | 360 | 280 | 420 | 1300 | 8.5/11 | 650-1500 |
| GM_SSP-250 | Φ250 | 490 | 450 | 300 | 430 | 1520 | 9.5/12 | 800-2500 |
| GM_SSP-300 | Φ300 | 706 | 520 | 380 | 500 | 1660 | 11.5/15.5 | 1200-3500 |
| GM_SSP-320 | Φ320 | 803 | 560 | 400 | 560 | 1700 | 13/17.5 | 1500-4000 |
| Remark: As the above specification is subject to change without prior notice |
Zhengzhou Great Machinery Co., Ltd is a company focus on the design and research of hydraulic screen changer, melt pump and extrusion dies. Gmach is a young company but has a large number of senior technicians, the deep technical background and full of passion work team determine it is standing on a high starting point. We do not just supply you the products, but also provide the solution to solve the problem.
We are committed to provide you the best products with ever improving design, strict production and quality control. Strong professional technical team provides you the perfect pre-sales and post-sales services.
Gmach's mission: Commit to plastic extrusion field, develop the environment friendly product, create a well-known brand at home and abroad
Now we have the following products
1, Plate type hydraulic screen changer GM-SSP series
2, Double plate type screen changer GM-DSP series
3, Double piston type continuous screen changer GM-DP-R series
4, Plate type continuous screen changer GM-R series
5, Automatic screen changer GM-ACB series
6, Large filtration area continuous screen changer GM-DP-L series
7, Spining pump
8, extrusion melt gear pump
9. Chemical pump
10, plastic recycling machine
11, plastic granules making mahcine pelletizing line
