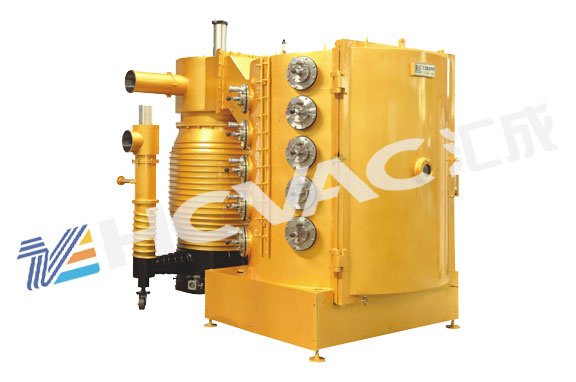

Glasses frame decoractive metal ion coating machine has the features of fast deposition rate, great ionization rate
Glasses frame decoractive metal ion coating machine of efficiency, harmless and pollution-free. It has the features of fast deposition rate, great ionization rate, big ion energy, easy operation, low cost, large productive capacity, etc.
Characteristic: The principle of the electric arc is intergrating cold cathode arc discharge self-sustained light unite pulse technique and magnetron sputtering technology, thinning the particles to improve the properties of the film. It can coat on the surface of the metal as well as nonmetal.
Applied industry: It can be used to coat metal film, titanium nitride, titanium carbide, and zirconium nitride, chromium nitride and titanium, nickel, chromium, copper, and other compounds film, multi-layer super-hard film, nitrogen-doped titanium film and the alloy film, and in a very short time to complete all the machining process, it is a highly efficient multi-functional coating equipment.
This machine is extensively used in the fields of ultra-hard coating about the tools and mould, decorative coating about car wheels, ceramics, golf, watches making, hotel product, sanitary ware, luminaires, optical frame, hardware, etc.
Mode
Dimension
LH-800
LH-1000
LH-1250
800*1000mm
1000*1000mm
1250*1500mm
Coating mode and main confirguration
Eight multi-arc targets
Ten multi-arc targets
Twelve multi-arc targets
Power source
Electric-arc power, Filament power,
Process gas control
Mass flowmeter + Electromagnetic ceramic valve
Vacuum chamber structure
Vertical side opening door, pump system postposition, double water cooling
Vacuum system
Molecule pump +Roots pump +Mechanical pump(5.0*10-5Pa)
Diffusion pump +Roots pump +Mechanical pump(5.0*10-4Pa)
Workpiece baking temperature
Normal temperature to 350 centi-degree PID control, radiation heating.
Workpiece motion mode
Public rotation Frequency control: 0-20 rotation per minute
Measure mode
Number display composite vacuum gauge: From atmosphere to 1.0*10-5Pa
Control mode
Manual/Automatic/PC/PLC + HMI/PC four choice of control mode
Remark
We can design the dimension of the equipment according to customers special technique requirement.
| mode dimension | ZZ-1200 | ZZ-1400 | ZZ-1600 | ZZ-1800 |
| | 1200*1400mm | 1400*1600mm | 1600*1800mm | 1800*2000mm |
| film Type | Semitransparent film, non-conducting film, gold, silver, red, blue, green, purple, seven color, etc. |
| Power source Type | Thermal evaporation power, ion bombard power, RF power |
| Vacuum chamber structure | Vertical double/single door, horizontal single door, pump system postposition |
| Ultimate vacuum | 8.0*10 -4 Pa |
| Vacuum system | Diffusion pump +Roots pump +Mechanical pump +Holding pump |
| Pump time | Pump from atmosphere to 5.0*10 -2 , about 6 minutes |
| Workpiece motion mode | Public rotation/Frequency control |
DongGuan HuiCheng Vacuum Technology Co., Ltd is a high-tech enterprise specialized in the R&D, Production and Marketing of various kinds of the vacuum equipments. Our company aggregates many excellent technicians in the vacuum industry, including engineers with the senior and middle technique titles. We also invite the senior experts and experienced technicians to be responsible for the development and design of the new products, insure the high technology and quality of the vacuum equipment. Our products are popular with both the domestic and overseas clients, and have a high reputation in the vacuum industry.
Our company is dedicated to the R&D of the series of the vacuum coating machine. We have been designed various coating technics projects according to different requirements successfully, especially in the fields of mobile(computer) shell, electronical appliance, metal, auto parts and high-tech industries, etc. Particularly we designed the special wheels coating machine for the VIP enterprise in Zhejiang Province in 2007, bringing great benifits for the client, making prominent contribution to the environment protection and generating extremely positive social effectiveness. It is high appreciated by the government and craft brother. Therefor this project is listed to the item of the Nation Star Project. Our main products also include slide valve vacuum pump, Roots vacuum pump, water ring vacuum pump, rotary-vane vacuum pump, various vacuum units and different vacuum heating energy equipments, etc.
