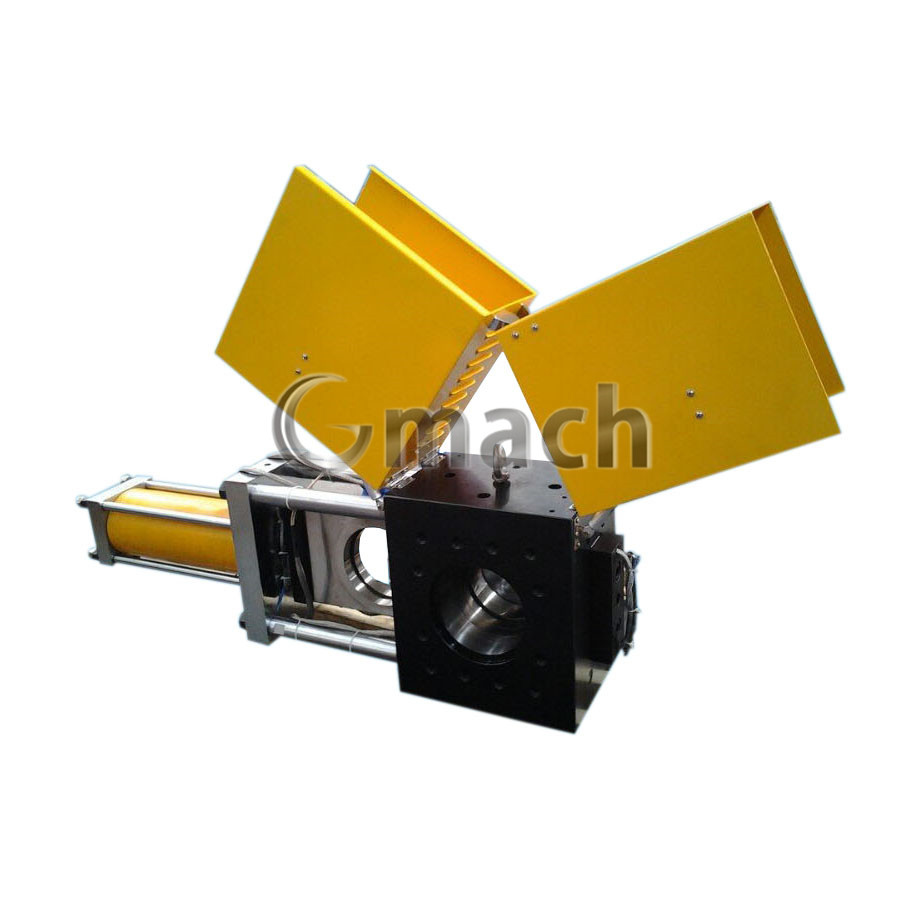

Plastic extrusion plate type hydraulic screen changer
Specification
1) Leak-free mold
2)Affordable price
3)Easy operation
4)Visible efficient
Working principle

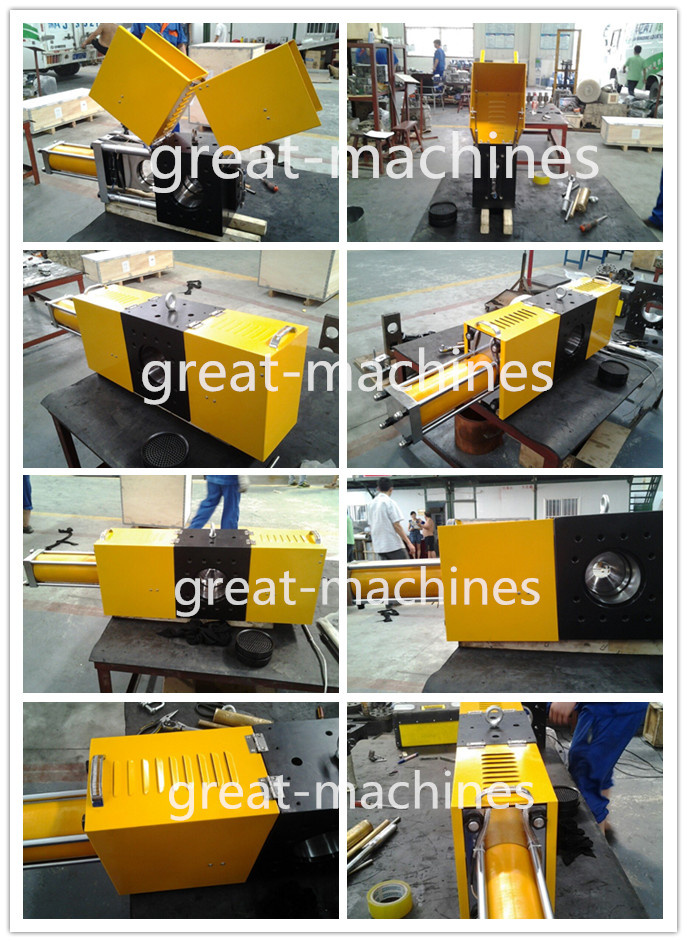

This GM-SSP series of plastic extrusion plate type hydraulic screen changer consists of main body, sliding plate, heater unit and hydraulic unit with accumlator. It's ariven by hydraulic system, and the sliding plate carrying 2pieces of breaker lates move linearly in both directions to achievescreen changing process smoothly.
Technical data
Types
Type | Screen D&A | Overall dimension(mm) | Heating power (KW) | Output (kg/h) |
Dia (mm) | Filtration area(cm²) | L | W | H | L1 |
GM-SSP-70 | Φ70 | 38 | 200 | 170 | 240 | 820 | 3.5/5.8 | 80-200 |
GM-SSP-100 | Φ100 | 78 | 220 | 185 | 280 | 930 | 4.5/6.8 | 150-350 |
GM-SSP-120 | Φ120 | 113 | 260 | 205 | 320 | 1010 | 5.2/7.2 | 220-350 |
GM-SSP-150 | Φ150 | 176 | 300 | 235 | 360 | 1140 | 6.5/8.5 | 350-800 |
GM-SSP-180 | Φ180 | 254 | 320 | 245 | 360 | 1200 | 7.6/9.5 | 550-1250 |
GM-SSP-200 | Φ200 | 314 | 360 | 280 | 420 | 1300 | 8.5/11 | 650-1500 |
GM-SSP-250 | Φ250 | 490 | 450 | 300 | 430 | 1520 | 9.5/12 | 800-2500 |
GM-SSP-300 | Φ300 | 706 | 520 | 380 | 500 | 1660 | 11.5/15.5 | 1200-3500 |
GM-SSP-320 | Φ320 | 803 | 560 | 400 | 560 | 1700 | 13/17.5 | 1500-4000 |
Remark:The output rates depend on the actual individual extrusion process parameters. |
Applications
Sheet
tubing/pipe
coating
lab lines
wire and cable
Pelletizing (strand and underwater)
EVA,hot melt adhesive and PSA
Blown film and cast film
non-woven fabrics

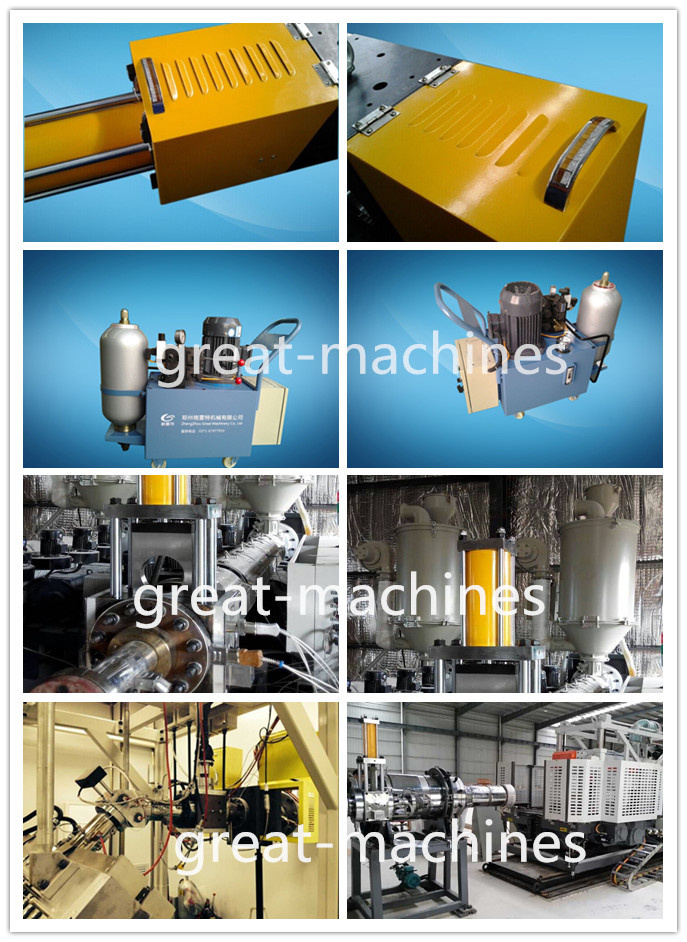

Application cases
Zhengzhou Great Machinery Co., Ltd is a company focus on the design and research of hydraulic screen changer, melt pump and extrusion dies. Gmach is a young company but has a large number of senior technicians, the deep technical background and full of passion work team determine it is standing on a high starting point. We do not just supply you the products, but also provide the solution to solve the problem.
We are committed to provide you the best products with ever improving design, strict production and quality control. Strong professional technical team provides you the perfect pre-sales and post-sales services.
Gmach's mission: Commit to plastic extrusion field, develop the environment friendly product, create a well-known brand at home and abroad
Now we have the following products
1, Plate type hydraulic screen changer GM-SSP series
2, Double plate type screen changer GM-DSP series
3, Double piston type continuous screen changer GM-DP-R series
4, Plate type continuous screen changer GM-R series
5, Automatic screen changer GM-ACB series
6, Large filtration area continuous screen changer GM-DP-L series
7, Spining pump
8, extrusion melt gear pump
9. Chemical pump
10, plastic recycling machine
11, plastic granules making mahcine pelletizing line
