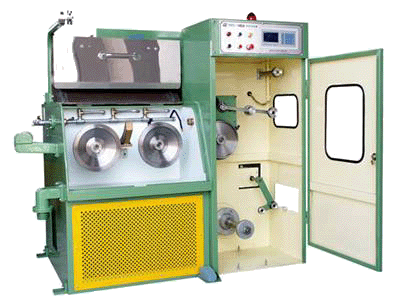

PRO-14DL is produced based on PRO-14D with great improvement and innovation according to the market requirements. Keeping the original advantages, it can drrive the copper-clad aluminum. It is the leading machine in Chinese market.
(OEM)Our company is close to Shanghai, welcome to visit!
Picture 1
|
machine type |
14DL |
|
inlet diameter(mm) |
φ1.0-φ2.05 |
|
outlet diameter(mm) |
φ0.6-φ1.2 |
|
drawing line speed(MPM) |
1200 |
|
drawing dies No./Max |
1714 |
|
slip ratio of m/c |
15% |
|
fix speed capstan slip ratio |
8% |
|
capstan |
ceramic plasma |
|
capstan dia.(max.)(mm) |
φ316 |
|
fix speed capstan dia.(mm) |
φ268 |
|
frame |
welded by steel plate |
|
main motor |
15KW three phase inductor motor |
|
spooler motor |
4KW three phase inductor motor |
|
revise system |
PID synchronous spooler |
|
inverter control |
Dual inverter control |
|
transmission type |
flat belt |
|
send-out method |
over head |
|
traversing unit |
flat belt + timing motor |
|
tension control |
pneumatic balance by swing arm |
|
lubrication system of wire drawing |
spray |
|
suitable diameter of spool (mm) |
φ400 |
|
capacity for wire receiving(kg) |
25 |
|
bobbin loading & unloading type |
shaft type |
|
power source |
380V |
|
brake |
machine dimension |
|
machine weight |
2000L×1600W×1900H |
PROFessional Machinery Electric Co., Ltd ( i. e. PRO Machinery Electric (Suzhou) Co., Ltd). has been established in 2002, a wholly owned Taiwanese company, specialized in the manufacturing of wire & cable industrial equipment, wire drawing machines, annealing machines and wire twisting machines. After more than 18 years' development with professional and experienced employees as well as first-grade workshops and factory buildings, PRO becomes a leading company in supply field of electronic circuits, electromagnetic wires, electric wires and cable equipment. (OEM)
In 2006 PRO has obtained the ISO 9001: 2000, strictly produce according to the standards, with strong cost and service consciousness, we provide machines with excellent quality and competitive price. Our experienced engineers offer complete solution of plan, design and produce, to the full extent, to constantly meet production requirements of our customers and easy production.
