Structure specialty:
(1) Power control: The speed can be adjusted from 0-1800MPM by the stepless speed control transducer of the main motor, the line speed is shown on the monitor. Wind motor has it's own transducer to control the stabilization of the tension lever and keep the same diameter of the line.
(2) Line drawing type: Vertical four shafts, horizontal slippage, continuously drawing. The whole machine is designed to save space.
(3)Mode of drive: By flat belt.
(4) Auto stop: The equipment has automatic stop function when the line is broken.
(5) All parts are used high quality special material.
A. The primary drum is chrome oxide or aluminum oxide faced.
B. All bearings from Japan NSK.
C. All belts are imported, anti-static, long life design.
D. Famous domestic brand and high quality electric motor.

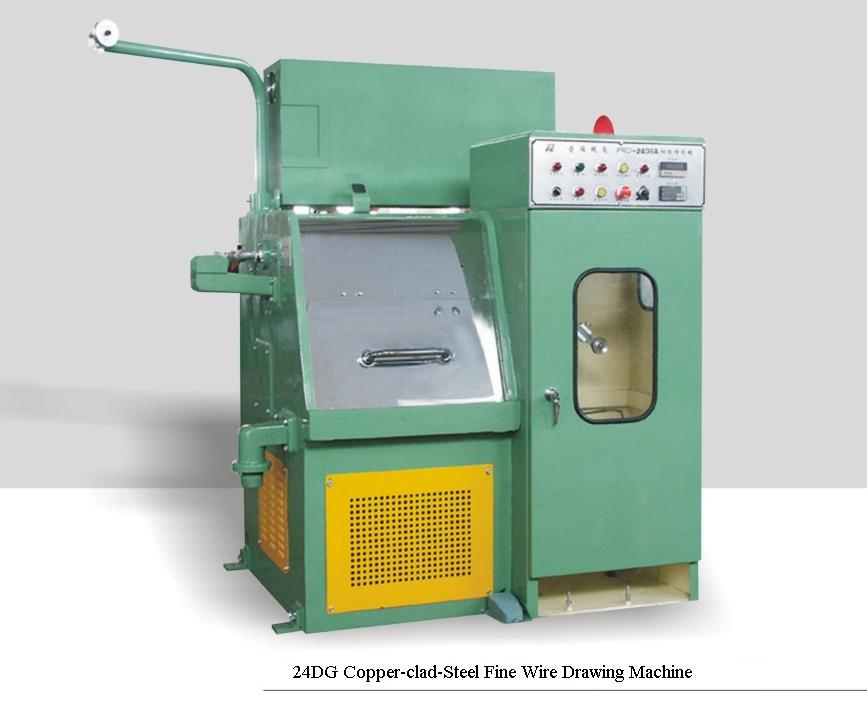

Picture 1
|
Type |
24DG |
|
Inlet Diameter(mm) |
Φ0.5-φ1.0 |
|
Outlet Diameter (mm) |
φ0.08-φ0.25 |
|
Max drawing dies No. |
24 |
|
Max Drawing Speed (MPM) |
1800 |
|
Main Motor |
15KW |
|
Spooler Motor |
4KW |
|
Suitable Diameter of Spool |
Φ400(MAX) |
|
Capacity for Wire Receiving |
13KG |
|
Power source |
380V |
|
Dimension |
2050*1600*1900 |
|
Weight |
2000 |
PROFessional Machinery Electric Co., Ltd ( i. e. PRO Machinery Electric (Suzhou) Co., Ltd). has been established in 2002, a wholly owned Taiwanese company, specialized in the manufacturing of wire & cable industrial equipment, wire drawing machines, annealing machines and wire twisting machines. After more than 18 years' development with professional and experienced employees as well as first-grade workshops and factory buildings, PRO becomes a leading company in supply field of electronic circuits, electromagnetic wires, electric wires and cable equipment. (OEM)
In 2006 PRO has obtained the ISO 9001: 2000, strictly produce according to the standards, with strong cost and service consciousness, we provide machines with excellent quality and competitive price. Our experienced engineers offer complete solution of plan, design and produce, to the full extent, to constantly meet production requirements of our customers and easy production.
