Structure specialty and performance parameter:
1. Structure specialty:
(1) Power control: The speed can be adjusted from 0-2500MPM by the stepless speed control transducer of the main motor, the line speed is shown on the monitor. Wind motor has it's own transducer to control the stabilization of the tension lever and keep the same diameter of the line.
(2) Line drawing type:
Vertical four shafts, horizontal slippage, continual drawing. The whole machine is designed to save space.
(3)Mode of drive: By flat strap.
(4) Auto stop: The equipment has automatic stop function when the line is broken.
(5) All parts are used high quality special material.
A. The primary drum is chrome oxide or aluminum oxide faced.
B. All bearings from Japan NSK.
C. All strap are imported, anti-static, long life design.
D. Famous domestic brand and high quality electric motor.
Our company can be (OEM). Our company is close to Shanghai, welcome to visit!

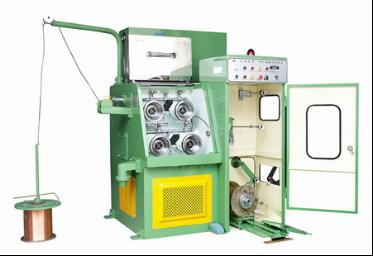

Picture 1
Picture 2
Picture 3
|
machine type |
20D |
22D |
24D |
|
inlet diameter(mm) |
φ0.15-φ0.4 |
φ0.6-φ1.2 |
0.5-1.0 |
|
outlet diameter(mm) |
φ0.05-φ0.12 |
φ0.1-φ0.4 |
0.08-0.25 |
|
drawing line speed(MPM) |
2000 |
2000 |
2000 |
|
drawing dies No./Max |
20 |
22 |
24 |
|
slip ratio of m/c |
10.5% |
15% |
13% |
|
fix speed capstan slip ratio |
6% |
8% |
8% |
|
capstan |
ceramic plasma |
|
fix speed capstan (mm) |
φ120 |
φ159 |
φ194 |
|
frame |
ironed cast |
|
main motor |
3.7KW three phase inductor motor |
11KW three phase inductor motor |
11KW three phase inductor motor |
|
spooler motor |
2.2KW three phase inductor motor |
3.7KW three phase inductor motor |
3.7KW three phase inductor motor |
|
revise system |
PID synchronous spooler |
|
inverter control |
Dual inverter control |
|
transmission type |
falt belt |
|
send-out method |
over head |
|
traversing unit |
flat belt + timing motor |
|
tension control |
cyinder slip butter rod |
|
lubrication system of wire drawing |
spray |
|
suitable diameter of spool (mm) |
φ250 |
φ300 |
φ300 |
|
capacity for wire receiving((kg) |
30 |
50-60 |
50-60 |
|
bobbin loading & unloading type |
shaft type |
|
power source |
380V |
|
brake |
magnetic brake |
|
machine dimension |
1900L×1350W×1750H |
2050L×1600W×1900H |
2050L×1600W×1900H |
|
machine weight |
1900 |
2200 |
2500 |
PROFessional Machinery Electric Co., Ltd ( i. e. PRO Machinery Electric (Suzhou) Co., Ltd). has been established in 2002, a wholly owned Taiwanese company, specialized in the manufacturing of wire & cable industrial equipment, wire drawing machines, annealing machines and wire twisting machines. After more than 18 years' development with professional and experienced employees as well as first-grade workshops and factory buildings, PRO becomes a leading company in supply field of electronic circuits, electromagnetic wires, electric wires and cable equipment. (OEM)
In 2006 PRO has obtained the ISO 9001: 2000, strictly produce according to the standards, with strong cost and service consciousness, we provide machines with excellent quality and competitive price. Our experienced engineers offer complete solution of plan, design and produce, to the full extent, to constantly meet production requirements of our customers and easy production.
