North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Color:
Blue / Customized
Warranty:
1 Year
Popularity:
Hot/on Sales
Inverter Control:
Dual Inverter Control
Operation System:
Button Control
Type:
LT Water Tank Type Metal Drawing Machine
Usage:
Rope Wire
Max.Inlet Wire Dia.:
0.5mm-1.0mm
Outlet Diameter:
0.08mm-0.5mm
Max. Number Of Block:
24
Product Description

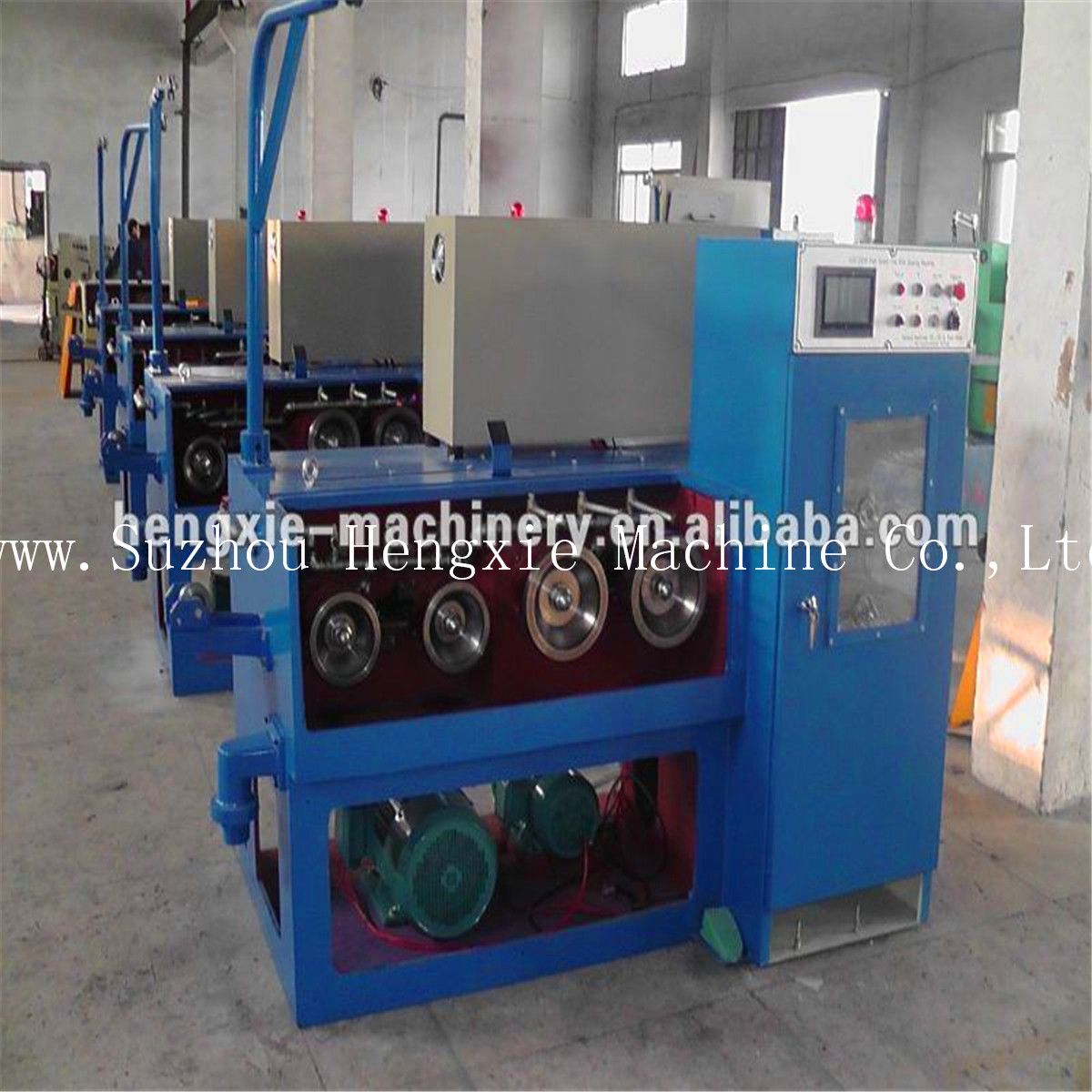

HXE-24DW High speed copper wire drawing machine Technic Detail: Inlet size 0.5mm-1.0mm Outlet size 0.08mm-0.5mm High speed 2500m/min Die numbers 24 Slip ratio of m/c 13%+8% Capstan Ceramic plasma Capstan diameter 242mm Fix speed capstan diameter 207mm Frame Iron cast Main motor 15KW three phase AC motor Spool motor 3.7KW three phase AC motor Revise system Synchronous control spoole Power control Inverter control Transmission type Flat belt Pay-off method Over-head Traversing unit Flat belt+synchronous motor Tension control Weight balance by swing arm Lubrication type spray type Bobbin size 300mm Spooler capacity 50-60Kg Bobbin loading Shaft type Power source 380V Brake pneumatic brake If you want to buy this machine pleas contact me i will reply as soon sa possible.
