North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Inlet Diameter:
0.8-1.6mm
After Service:
Engineer Available to Overseas
Size:
2900*1300*1800
Machine Weight:
2950kg
Warranty:
1 Year
Popularity:
Hot/on Sales
Color:
Blue/Customized
Dies:
14
Usage:
Rope Wire
Type:
Copper Wire Drawing Machine with Annealing
Max.Inlet Wire Dia.:
0.8mm-1.6mm
Outlet Diameter:
0.25-0.7mm
Max. Number Of Block:
14
Product Description

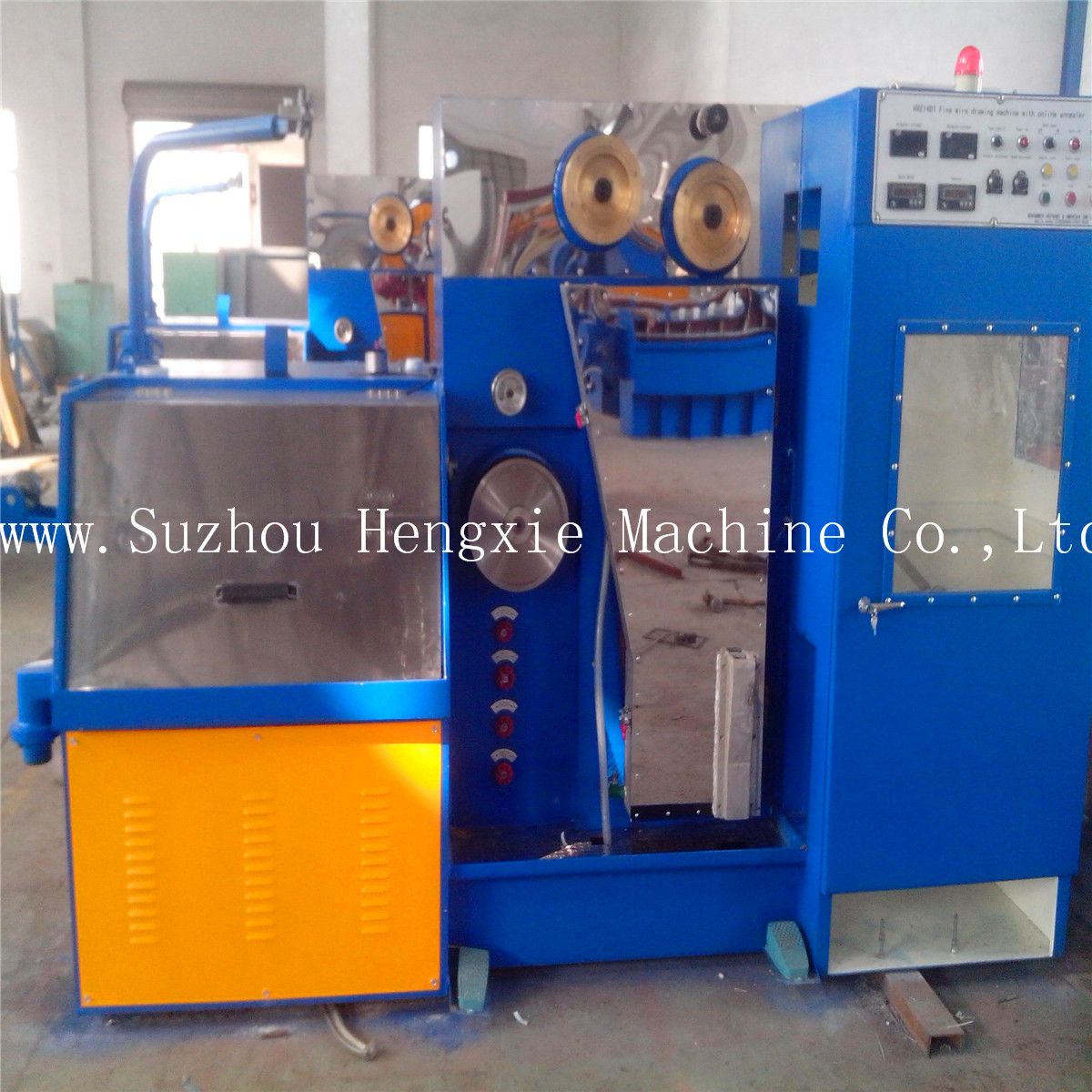

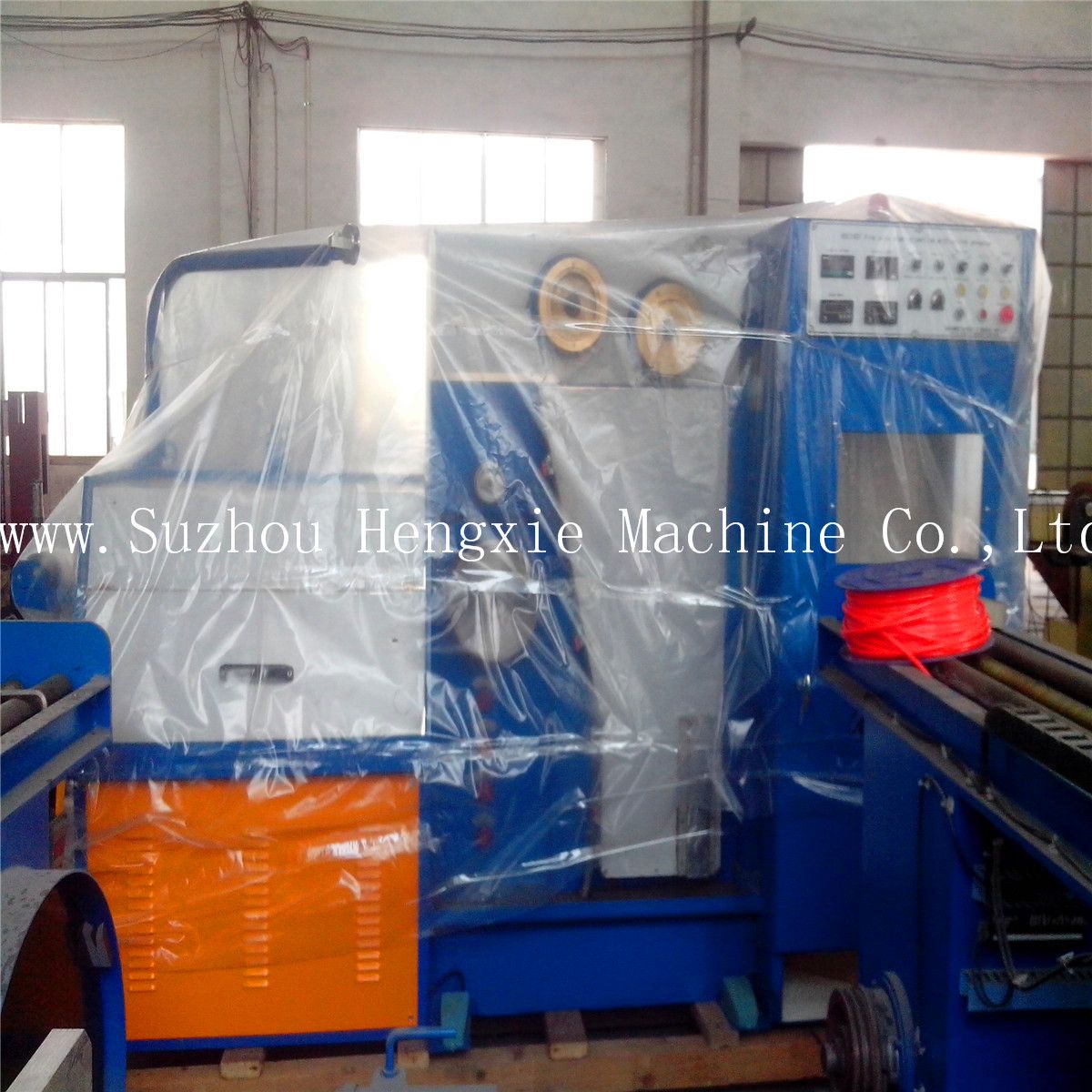

HXE-14DT fine wire drawingmachine wth annealer
Drive: Double inverters control Drawing Dies Number: 14 Input diameter: Φ 1.6_Φ 0.8mm Output diameter: Φ 0.6_Φ 0.25 mm Drawing speed: MAX1500m/min Slip ratio of machine: 15% Slip ratio of fix speed capstan: 8% Frame: Welded by steel plate with backfire Drawing wheel: Carbonization tungsten Main motor power: 15KW Take up motor power: 5.5KW Capstan diameter: Φ 316mm Fix speed capstan diameter: Φ 268mm Annealing wheel length: Φ 260mm Annealing voltage: DC0~60V Annealing current: DC600A Annealing protect type: Steam Spool size: 300mm Loading copper weight: 50kg Take up type: Shaft type Transmission type: Flat belts Loading capacity: 50KG Lubrication type: Spray type Brake: Magetic brake Power source: 380V50/60Hz Machine weight: 2900KG
Machine compositions: 14DT drawing machine Electrical control cabinet Steam generator Pay off stand Spare parts
Suzhou Hengxie Machinery Co., Ltd. Locates in Yinghu Industrial Zone, Wangting town, Suzhou Hli-New District, near to G312 with a conveninet transportation and nice environment. It is a professional company which specializes in electronic cable, electromagnetic cable, electrical wire eat. It is at a leading position in this line because of the topping managing talent and advanced technics.
Hengxie has invested RMB ten Millons to introduce the Germany equipments and technics and developed the cable producing line by itself. This ensures the quality stable and capability superior. Hengxie has successfully set up a superior enterprise mode.
With the mange concept"Stable Quality, Mutual Development" Hengxie warmly welcome alll the friends to grant the changefor sincere cooperation and win the mutual benifit in the future.
