Popularity:
Hot/on Sales
Warranty:
1 Year
Operation:
Button Control or PLC with Touching Screen
Noise:
Low
Slip Ratio Of M/C:
19.6%+12.5%
Color:
Bule/Customized
Inlet Size:
3.0mm-3.5mm
Usage:
Aluminum
Type:
Copper Wire Drawing Machine
Outlet Diameter:
0.8mm-2.8mm
Max.Inlet Wire Dia.:
3.0mm-3.5mm
Max. Number Of Block:
13
Product Description

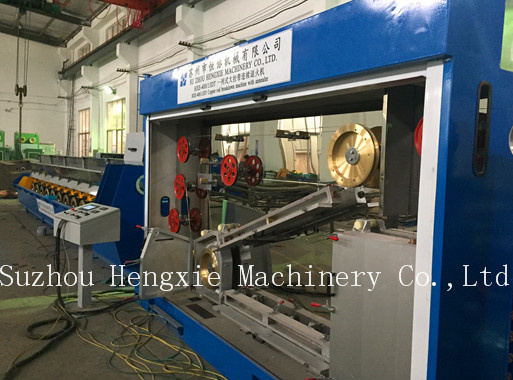

HXE-13DT Copper wire drawing machine with continuous annealer This machine my company technoic and skill is very perfect and our clients reflect use almost satisfied. Technoic Detail
Control system
analog type/digital control with production record
Inlet diameter
3.0mm-3.5mm
Outlet diameter
0.8mm-2.8mm
High speed
1000m/min
Die numbers
13
Slip ratio of m/c
19.6%+12.5%
Frame
welded by steel plate

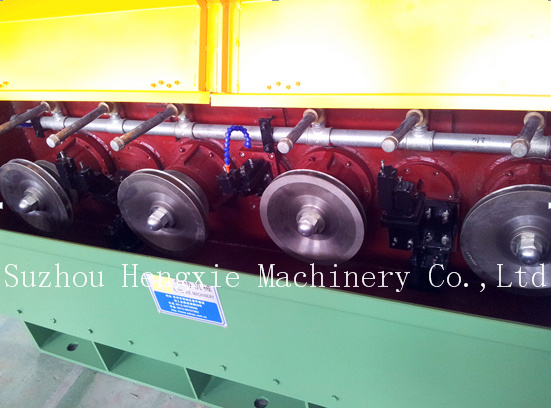

Capstan
Tungten
Capstan diameter
280mm
Fix speed capstan diameter
280mm
Bobbin size
400mm-630mm or customized
Bobbin loading
Double end thimble
spool capacity
500kg
Annealing method
DC three-section annealing
Main motor
AC45KW or customized
Spooler motor
AC11KW*2 or customized
Annealing current
DC3000A
Annealing Voltage
DC60V
Annealing power
180KVA
Steam quantity
18kg/h
Cooling water capacity
650L/min
Compressed air capacity
0.4~0.6Mpa,50L/min
Power source
380V 50/60HZ
Domension
13300L*3500W*3400H
Weight
about 8500kg
Working hour
24 hour
Suzhou Hengxie Machinery Co., Ltd. Locates in Yinghu Industrial Zone, Wangting town, Suzhou Hli-New District, near to G312 with a conveninet transportation and nice environment. It is a professional company which specializes in electronic cable, electromagnetic cable, electrical wire eat. It is at a leading position in this line because of the topping managing talent and advanced technics.
Hengxie has invested RMB ten Millons to introduce the Germany equipments and technics and developed the cable producing line by itself. This ensures the quality stable and capability superior. Hengxie has successfully set up a superior enterprise mode.
With the mange concept"Stable Quality, Mutual Development" Hengxie warmly welcome alll the friends to grant the changefor sincere cooperation and win the mutual benifit in the future.
