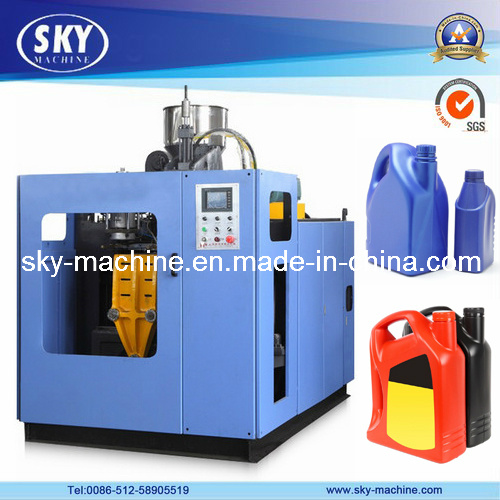

Extrusion Blow Moulding Machine

Extrusion Blow Moulding Machine
Price: US $ 20000/Set
Trade Terms: FOB,CFR,CIF
Min Order: 1/Set
Pay Type: L/C,T/T,Western Union
Prod Model: SKY50-2L
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Automation: Automatic
Making Method Of Parison: Extrusion-Blow Molding
Raw Material: HDPE
Computerized: Computerized
Certification: CE
Type: Extrusion Blow Molding Machine

Product Description

Extrusion Blow Moulding Machine
1. Model: SKY50-2L
2, Maximum product volume: 2L

SKY50-2L extrusion blowing machine, This single station machine can be equipped with 1 to 4 die head, Compatible for the production of bottles from 5ml up to 2liters made out of PE, PP, PETG and PVC, Suiting for the packaging of cosmetics, petroleum, chemicals, pharmaceuticals, food products and toys. This machine is designed for producing high quality articles with small size.


Description:
For bottles from 5ml up to 2L
With 1 to 4 fold die head
Center input die head
Multi-layer and visual stripe head
Max clamping force 40KN
Linear rolling motion guider equipped
Easily operation by PLC+touch screen
Imported hydraulic component
Parison programmer can be adopt

Parameter:
Dry cycle 1500 PCS/H
Screw diameter 50mm
Screw L/D ratio 22
Screr drive power 11KW
HDPE output 35KG/H
Oil Pump Power 5.5KW
Clamping force 40KN
Mold stroke 128-368mm
Template size 300*320mm
Max Die diameter 100mm
Machine size 2.5*1.7*2.3m
Machine weight 3.2T
