Preform Injection Molding Machine

Preform Injection Molding Machine
Price: US $ 10000-38000/Set
Trade Terms: FOB,CFR,CIF
Min Order: 1/Set
Pay Type: L/C,T/T,Paypal,Western Union
Prod Model: BST-1600A
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Clamping Force: 1600kn
Type: Preform Injection
Structure: Horizontal
Plastic Type: Thermoplastic
Automation: Automatic
Computerized: Computerized

Product Description

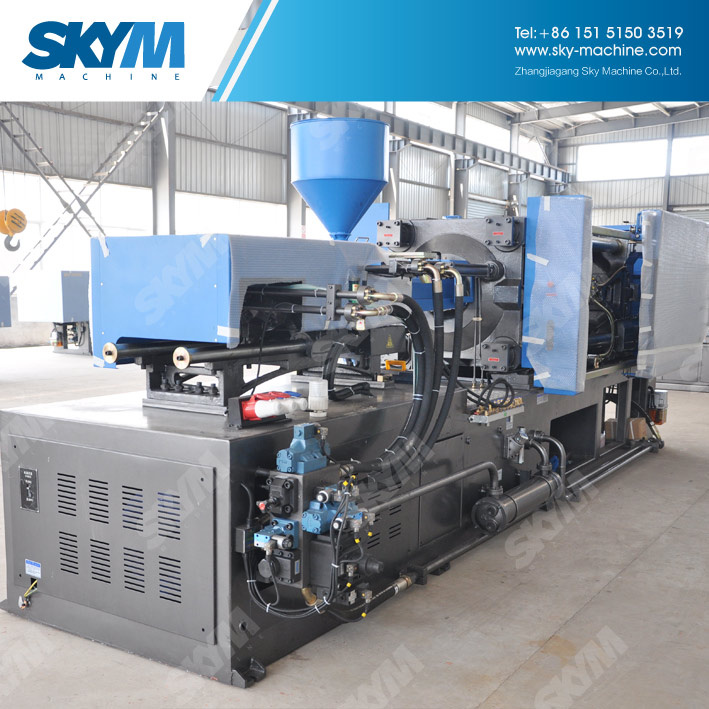

Preform Injection Molding Machine

High Efficiency Energy Saving Injection Molding Machine adopts proportional pressure and flow control, the pressure and the speed can be adjusted, stable movement curve and gentle shock, the computer is imported from Industry family.The LCD displaying screen with high clarity has Chinese and English language to use.Close-loop PID temperature control with the advantage of high precision.The operating table of the injection moulding machine have two safety, one is machine safety, another is electrical safety, that ensures the operators's safety.


Clamping Unit
5-point twin toggle clamping system by modular optimization software designing.Strong clamping with rapid and stable, tomeet the strict clamping condition.
Mould height adjustment by hydraulic driven gear system with rapid and stable.
Automatic mould height adjustment as per the setting clamping force(optional).


Injection Unit
BaIanced double injection cylinder technology makes screw to have evenly distributed force during fast injection,
Five_star Hydraulic motor with big torque,
Ensure the excellent plastic molding condition.
Research and develop different screws according to difierent iniection condition, suitable for the progressive demand and greatly improve the injection quality.


Control Unit
Imported computer special for Injection Molding Machine with multiple functions and precise control processing.
World famous electrical components and high quality circuit hardware with stable and reliable running
.

High Efficiency Energy Saving Injection Molding Machine:

1) LCD computer control with big display screen
2) Hydraulic double proportional valve
3) Hard chrome plated high tensile strength steel tie bars
4) Generous space for fitting large moulds
5) Large opening stroke
6) Two position transducers to control Clamping and Injection
7) Four stages of injecting, independent velocity and pressure control
8) Hydraulic mould height adjustment device
9) Screw cold-start prevention device
10) Melt decompression control
11) Screw back pressure control
12) Multiple hydraulic ejection
13) Differential high speed clamping
14) Centralized lubrication system
15) Low pressure mould protection device
16) Mechanical safety interlock
17) Double electrical safety interlock
18) Oil return filter
19) Oil tank with inner stainless steel container

Technical Parameters

MODELBST-1600A
INJECTION UNIT
AB
Screw diameterMm4245
Shot size(theoretical)Cm3318362
Shot weightG286326
Injection pressureMpa174151
Injection rateG/s135155
Screw L/D radioL/D22.320.8
Screw speedR.P.M0-190
Nozzle DiameterSmm10
CLAMPING

Clamp tonnageKN1600
Toggle strokeMm405
Mould ThicknessMm170-440
Space between tie-barsMm455*425
Ejector strokeMm155
Ejector tonnageKN70
Ejector numberPiece5
Hole DiameterMm125
OTHERS

Heal powerKW8.2
Max.Pump pressureMPa16
Pump motor powerKW15
Valve SizeMm16
Machine dimensionM5.0*1.6*1.7
Machine weightT5
Oil tank capacityL250

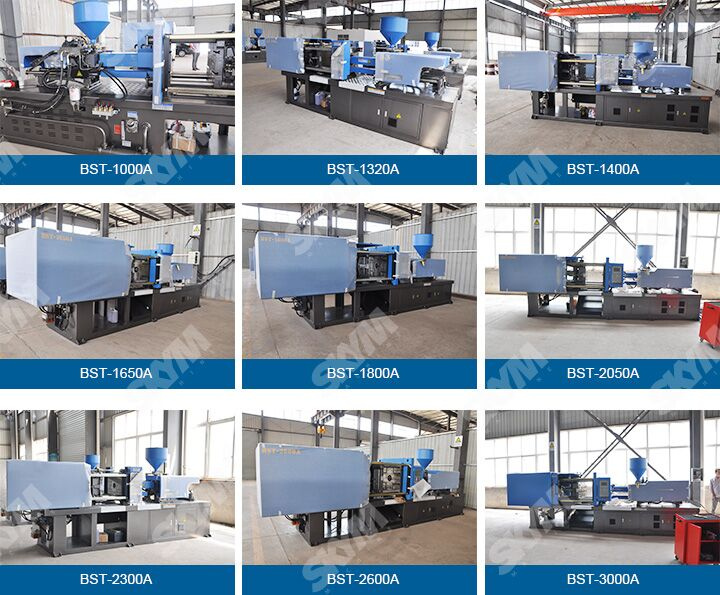

Technical Parameters
ModelClamp tonnage (KN)Ejector tonnage (KN)Heat power(KN)Max.Pump pressure (MPA)Pump motor power(kw)Machine dinension(m)Machine weight(t)Oil tank capacity(L)
BST-1000A1000507.616114.3*1.5*1.63.4180
BST-1320A132050

8.216134.5*1.6*1.73.9200
BST-1400A1400508.216134.8*1.6*1.74.2220
BST-1650A1650708.216155.0*1.6*1.75250
BST-1800A1800701116155.3*1.6*1.755.5250
BST-2050A20507011.616175.4*1.6*1.756270
BST-2300A23007011.61618.55.7*1.8*2.06.5300
BST-2600A26007015.516256.1*1.7*1.88350
BST-3000A30008015.516256.5*1.8*1.89370
BST-3400A34008017.516306.7*2.0*1.910.8400
BST-3850A38508017.516307.0*2.2*2.011.5400
BST-4500A45008520.516377.3*2.3*2.413.8450
BST-4800A480012523.416408.3*2.2*2.216.2600
BST-5200A520012528.11643.58.6*2.2*2.2520750
BST-5800A580012528.11648.58.75*2.2*2.321.8850
BST-6500A6500650037.116559.2*2.2*2.4261000
BST-7500A7500180040.9166710.7*2.3*2.7381200
BST-8500A850018042.5167411*2.4*2.75451300




Our Service
1.Installation, debug

After equipment reached the workshop of customer, place the equipment according to plane layout we offered.We will arrange seasoned technician for equipment installation, debug and test production at the same time make the equipment reach the rated producing capacity of the line.Time for installation and debug is 15-25 days.

2.Training

Our company offer technology training to customer.The content of training is structure and maintenance of equipment, control and operation of equipment.Training is in the workshop of customer.Seasoned technician will guide and establish training outline.After training, the technician of buyer could master the operation and maintenance, could adjust the process and treat different failures.

3.Quality guarantee

We promise that our goods are all new and not used.They're made of suitable material, adopt new design.The quality, specification and function all meet the demand of contract.We promise that the products of this line could storage for one year without adding any aseptic.

4.After sales

1, After checking, we offer 12 months as quality guarantee, free offer wearing parts and offer other parts at the lowest price.In quality guarantee, the technician of buyers should operate and maintain the equipment according to seller's demand, debug some failures.If you could not solve the problems, we will guide you by phone;If the problems are still can not solve, we will arrange technician to your factory solving the problems.The cost of technician arrangement you could see the cost treatment method of technician.
2, After quality guarantee, we offer technology support and after sales service.Offer wearing parts and other spare parts at favorable price;After quality guarantee, the technician of buyers should operate and maintain the equipment according to seller's demand, debug some failures.If you could not solve the problems, we will guide you by phone;If the problems are still can not solve, we will arrange technician to your factory solving the problems.The cost of technician arrangement you could see the cost treatment method of technician.
