Home Mould Products 650ton Injection Molding Machine

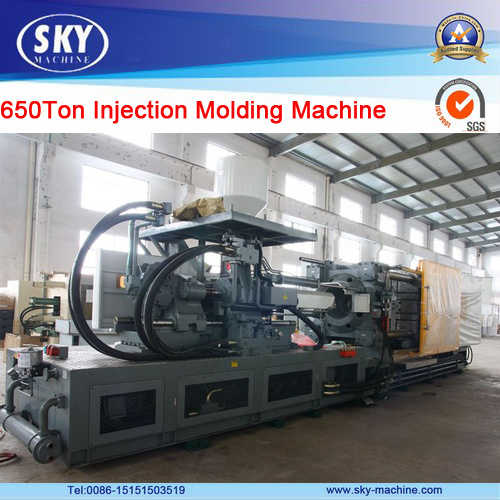

650ton Injection Molding Machine

650ton Injection Molding Machine
Price: US $ 100000-110000/Set
Trade Terms: FOB,CFR,CIF
Min Order: 1/Set
Pay Type: L/C,T/T,Paypal,Western Union
Prod Model: SZ-6500A
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Clamping Force: 6500kn
Type: Preform Injection
Automation: Automatic
Structure: Horizontal
Computerized: Computerized
Plastic Type: Thermoplastic

Product Description

650TON Injection Molding Machine

Clamping Unit
5-point twin toggle clamping system by modular optimization software designing. Strong clamping with rapid and stable, tomeet the strict clamping condition.
Mould height adjustment by hydraulic driven gear system with rapid and stable.
Automatic mould height adjustment as per the setting clamping force(optional).

Injection Unit
BaIanced double injection cylinder technology makes screw to have evenly distributed force during fast injection,
Five_star Hydraulic motor with big torque,
Ensure the excellent plastic molding condition.
Research and develop different screws according to difierent iniection condition, suitable for the progressive demand and greatly improve the injection quality.

Control Unit
Imported computer special for Injection Molding Machine with multiple functions and precise control processing.
World famous electrical components and high quality circuit hardware with stable and reliable running.
Item Unit Data
Max. clamping force KN 6500
Max. opening force mm 870
Space between tie bars ( V×H ) mm 850×850
Mould height ( min-max ) mm 350-900
Max. daylight mm 1770
Ejector force KN 200
Ejector stroke mm 260
Ejector quantity   17
Screw diameter mm 85 90 95
Screw L/D ratio L/D 22.3 21 19.9
Theoretical shot volume cm 3 2298 2576 2870
Plasticising weight(PS) g 2091 2344 2611
Injection pressure Kg/cm 2060 1840 1640
Theoretical injection rate(PS) g 400 448 499
Screw torque N.m 6580
Max. screw rotate speed r/min 125
Injection stroke mm 405
Carriage push force KN 151
Pump motor power KW 55
Pump pressure Mpa 160
Heating power KW 37.15
Heating zone   6
Size ( L×W×H ) m 9.3×2.3×2.7
Net weight t 32
International designation   6300-4710
