1000ton Injection Molding Machine

1000ton Injection Molding Machine
Price: US $ 200000-220000/Set
Trade Terms: FOB,CFR,CIF
Min Order: 1/Set
Pay Type: L/C,T/T,Paypal,Western Union
Prod Model: SZ-10000A
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Clamping Force: 10000kn
Type: Preform Injection
Automation: Automatic
Structure: Horizontal
Computerized: Computerized
Plastic Type: Thermoplastic

Product Description

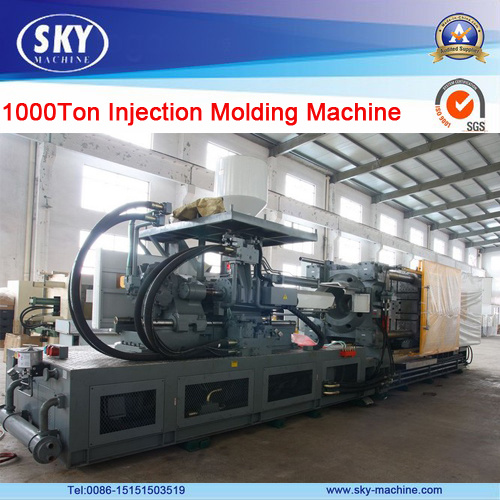

1000TON Injection Molding Machine

Clamping Unit
5-point twin toggle clamping system by modular optimization software designing. Strong clamping with rapid and stable, tomeet the strict clamping condition.
Mould height adjustment by hydraulic driven gear system with rapid and stable.
Automatic mould height adjustment as per the setting clamping force(optional).

Injection Unit
BaIanced double injection cylinder technology makes screw to have evenly distributed force during fast injection,
Five_star Hydraulic motor with big torque,
Ensure the excellent plastic molding condition.
Research and develop different screws according to difierent iniection condition, suitable for the progressive demand and greatly improve the injection quality.

Control Unit
Imported computer special for Injection Molding Machine with multiple functions and precise control processing.
World famous electrical components and high quality circuit hardware with stable and reliable running.
Item Unit Data
Max. clamping force KN 100 00
Max. opening  distance mm 1160
Space between tie bars ( V×H ) mm 1110×1110
Mold height ( min-max ) mm 450-1200
Max. daylight mm 2360
Ejector force KN 245
Ejector stroke mm 350
Ejector quantity   21
Screw diameter mm 100 110 120 130
Screw L/D ratio L/D 24.2 22 20.2 18.6
Theoretical shot volume cm 3 4083 4941 5880 6901
Plastic iz ing weight(PS) g 3517 4496 5350 6280
Injection pressure Kg/cm 2060 1710 1430 1220
Theoretical injection rate(PS) g 695 841 1001 1175
Screw torque N.m 8690
Max. screw rotate speed r/min 110
Injection stroke mm 520
Carriage push force KN 160
Pump motor power KW 90
Pump pressure Mpa 160
Heating power KW 68.45
Heating zone   6
Size ( L×W×H ) m 12.38×2. 8×3.5
Net weight t 60
International designation   10000-8410
