Injection Molding Machine

Injection Molding Machine
Price: US $ 20000/Set
Trade Terms: FOB,CFR,CIF
Min Order: 1/Set
Pay Type: L/C,T/T,Paypal,Western Union

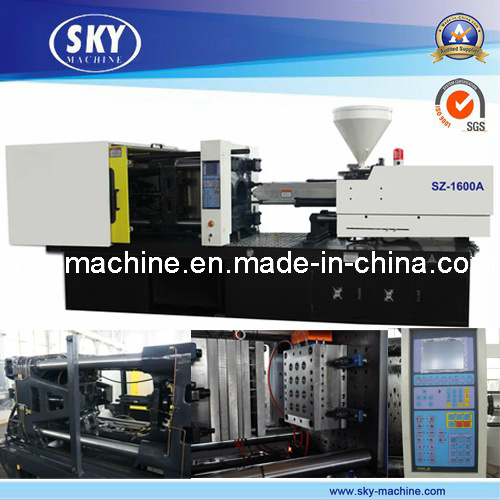

Prod Model: SZ-1600A
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Clamping Force: 1600kn
Type: Preform Injection
Structure: Horizontal
Plastic Type: Thermoplastic
Plasticizing Way: Screw Type
Clamping Way: Hydraulic
Automation: Automatic
Computerized: Computerized
Certification: ISO9001:2008

Product Description

Injection Molding Machine

General
Clamping Unit
5-point twin toggle clamping system by modular optimization software designing. Strong clamping with rapid and stable, tomeet the strict clamping condition.
Mould height adjustment by hydraulic driven gear system with rapid and stable.
Automatic mould height adjustment as per the setting clamping force(optional).

Injection Unit
BaIanced double injection cylinder technology makes screw to have evenly distributed force during fast injection,
Five_star Hydraulic motor with big torque,
Ensure the excellent plastic molding condition.
Research and develop different screws according to difierent iniection condition, suitable for the progressive demand and greatly improve the injection quality.

Control Unit
Imported computer special for Injection Molding Machine with multiple functions and precise control processing.
World famous electrical components and high quality circuit hardware with stable and reliable running.

Variable Oil Pump Injection Molding Machine
Upon our own technoIogy ability and advance internationaI technology of variable pump, we research and develop the Variable Oil Pump Injection Molding Machine. This new type energy-saving machine provide more choice for Clients and reaIize our enterprise responsibility.
Equipped with high efficient low noise and sensitive respond scaling variable displacement oil pump, it makes the hydraulic output always match with the system required power, without extra energy Iose via hiqh pressure throttling or overflow. Comparing with traditional machines with fixed oil pump, new machines can save 25-60% energy. Meanwhile reduce the oil working temperature to Iengthen its service life.
Save Energy and Protect Environment, and gain the benefit of society and economic.



Product
ItemUnitData
Max. clamping forceKN1600
Max. opening distancemm460
Space between tie bars(V×H)mm480×480
Mold height(min-max)mm180-500
Max. daylightmm960
Ejector forceKN45.2
Ejector strokemm115
Ejector quantity
5
Screw diametermm455055
Screw L/D ratioL/D23.32119.1
Theoretical shot volumecm3358442534
Plasticizing weight(PS)g326402486
Injection pressureMpa219178147
Theoretical injection rate(PS)g142175212
Plasticizing capacity(PS)g/s20.126.534.2
Screw torqueN.m1250
Max. screw rotate speedr/min200
Injection strokemm225
Pump motor powerKW18.5
Pump pressureMpa16
Heating powerKW13.6
Heating zone
4
Size(L×W×H)m5.3×1.35×1.9
Net weightt5.6
International designation
1600-785
