North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Color:
Customized
Aftersales Service:
Engineer Is Available Overseas
Warranty:
One Year
Inlet Diameter:
1.1-2.4mm
Outlet Size:
0.08-0.4mm
Brand Name:
Hxe
Operation:
PLC Control
Usage:
Wire
Type:
Fine Aluminum Wire Drawing Machine
Outlet Diameter:
0.08-0.4mm
Max.Inlet Wire Dia.:
1.1-2.4mm
Block Dia.:
192mm
Max. Number Of Block:
24
Product Description

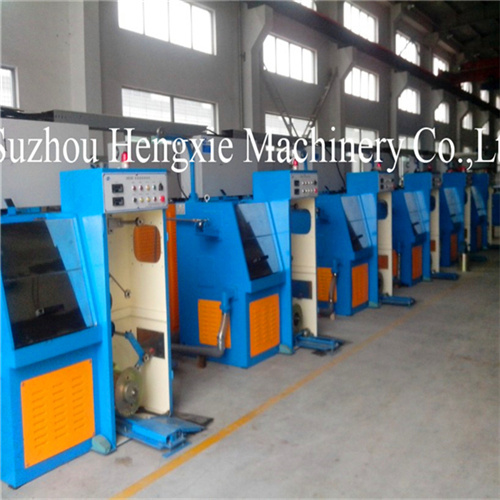

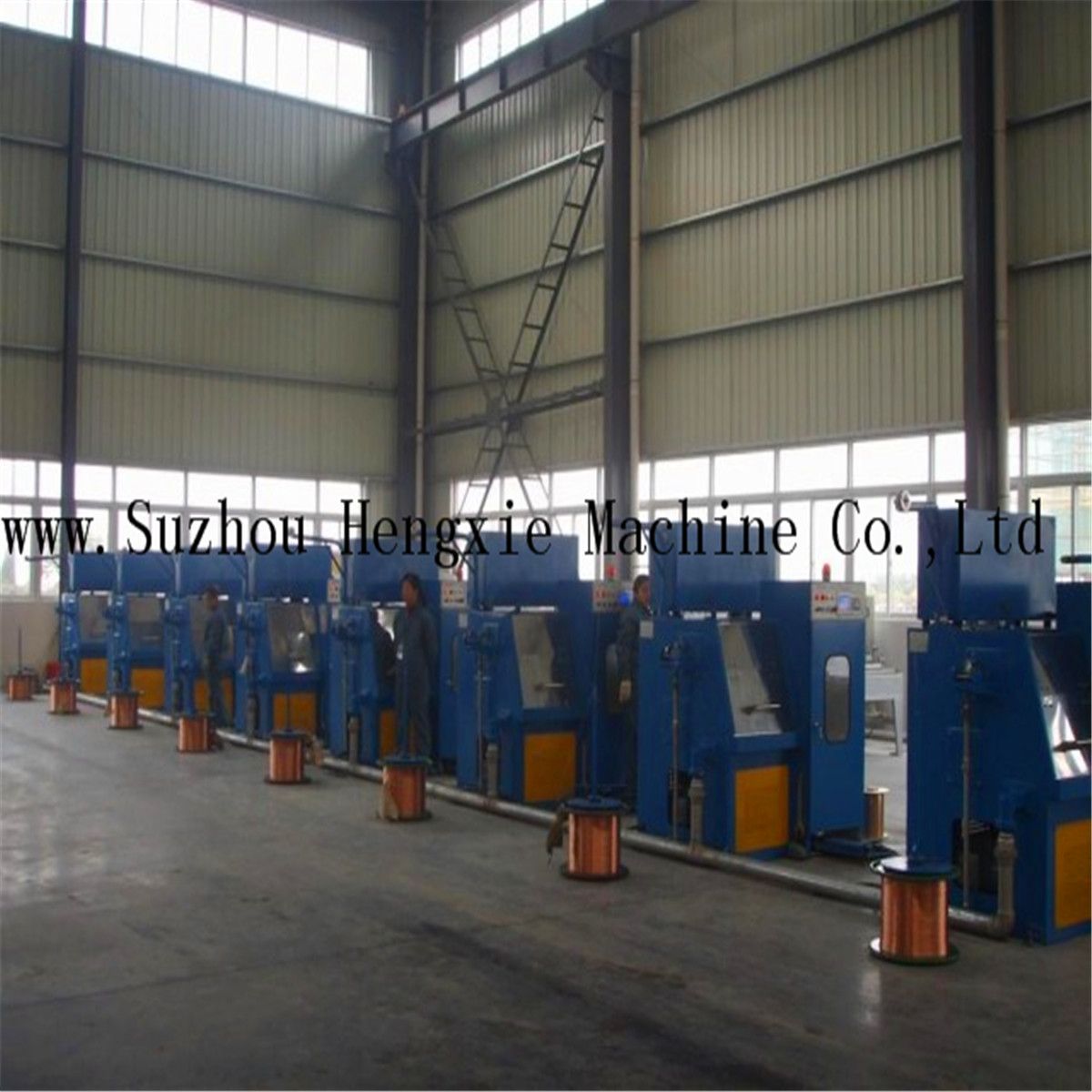

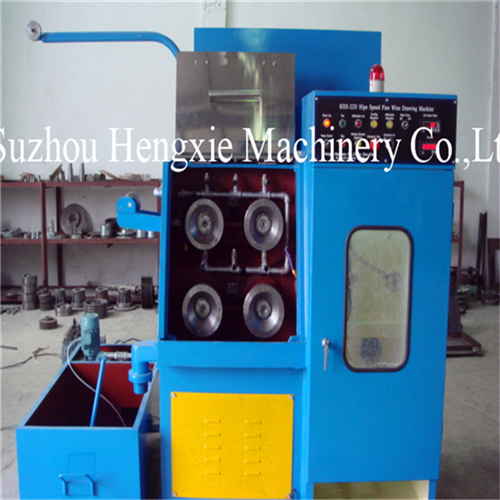

HXE-24DS Fine aluminum wire drawing machine HXE-24DS Fine aluminium wire drawing machine is used to draw sing bare aluminium wire from 2.4mm to 0.08mm. I.Components
Name
Quantity
1.Pay-off stands
1 set
2.HXE-24DS main drawing machine
1 set
3.Reel loading & unloading device
1 set
3.Spare parts
II.Main Technical parameters 1.Usage: Draw aluminum wire 2.Inlet size: 2.4mm 3.Outlet size: 0.08-0.4mm 4.Machine speed/max: 2500m/min 5.Die number: 24, Dies size: 25mm×8-10mmT. 6.Slip ratio of machine: 1st -22st 15%, 23nd 8% 7.Wire drawing mode: standing-mode and 4axes 8.Driver: by dual inverters control, Brand: Inovance,Chinese famous brand 9.Main motor: 15KW AC 3 phase motor, Spooler motor: 3.7KW AC 3 phase motor, Motor brand: Wan Nan motor, China famous brand 10.Capstan: steel with ceramic coating, 11.Max capstan diameter: 242mm 12.Max fix speed capstan: 207mm 13.Machine structure: cast iron 14.Transmission: by flat belts 15.Tension control: weight balance by swing arm 16.Spool size: 300mm 17.Take up: shaft type 18.Receiving weight: 40-50kg/max 19.Brake: magnetic brake 20.Drawing Lubrication: spray 21.Power source: customize 22.Machine dimension:2050L*1600W*1900H 23.Machine weight: 2500KG
Suzhou Hengxie Machinery Co., Ltd. Locates in Yinghu Industrial Zone, Wangting town, Suzhou Hli-New District, near to G312 with a conveninet transportation and nice environment. It is a professional company which specializes in electronic cable, electromagnetic cable, electrical wire eat. It is at a leading position in this line because of the topping managing talent and advanced technics.
Hengxie has invested RMB ten Millons to introduce the Germany equipments and technics and developed the cable producing line by itself. This ensures the quality stable and capability superior. Hengxie has successfully set up a superior enterprise mode.
With the mange concept"Stable Quality, Mutual Development" Hengxie warmly welcome alll the friends to grant the changefor sincere cooperation and win the mutual benifit in the future.
