North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Color:
Bule/Customized
Operation:
Button Control or PLC with Touching Screen
Power:
380V/50Hz or Customized
Die Numbers:
13
Popularity:
Hot/on Sales
Warranty:
1 Year
Usage:
Aluminum
Type:
Copper Wire Drawing Machine
Outlet Diameter:
1.2mm-4.0mm
Max. Number Of Block:
13
Product Description

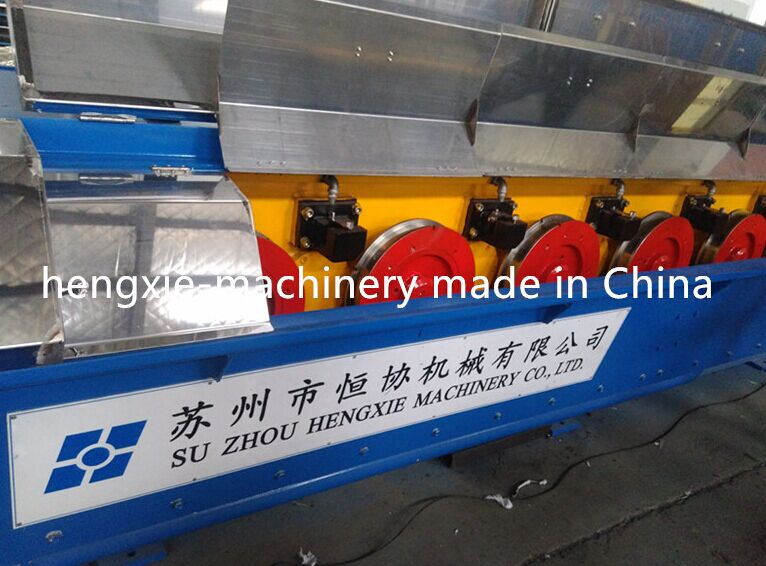

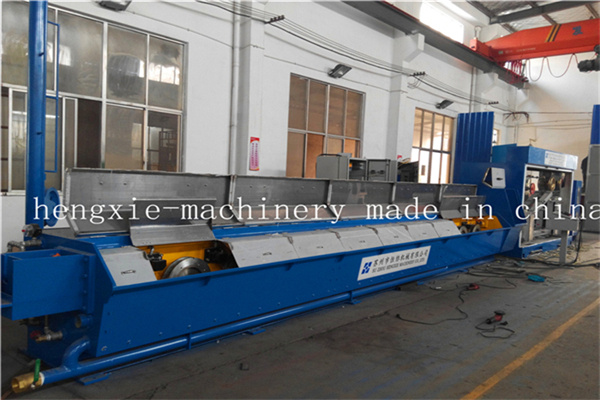

HXE-13DL Rod breakdown machine
Inlet size
8mm
Outlet size
1.2mm-4.2mm
High speed
2000
Die
13
Capstan
Tungsten
Capstan siez
450mm
Fix speed capstan
450mm
Frame
Fission casting
Main motor
DC250KW or Customized
Fix speed capstan motor
DC75KW
Coiler motor
AC15KW
Dual spooler
2*DC30KW
Revise system
PID synchronous control spoole
Inverter control
590DC converter
Transmission type
by gear
Pay-off method
Portal
Traversing unit
DEcelerate motor
Tension control
Pneumatic balance by swing arm
Lubrication type
Full dip-in type
Bobbin size
500mm-600mm or custonized
Coiler capacity
1200-1500kg
Dual spooler capacity
500kg
Power source
380V/50HZ or customized
Brake
Pneumatic brake
For any require for any question and technic detail information contact me.
