Prod Model: |
14DT |
Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Size: |
2600*1600*1900 |
Weight: |
3200kg |
Colour: |
Blue/Customized |
Warranty: |
1 Year |
Popularity: |
Hot/on Sales |
Operation: |
Button Control |
Usage: |
Rope Wire |
Type: |
Copper Wire Drawing Machine with Annealing |
Outlet Diameter: |
0.25mm-0.6mm |
Max.Inlet Wire Dia.: |
0.8mm-1.6mm |
Max. Number Of Block: |
14 |
Product Description

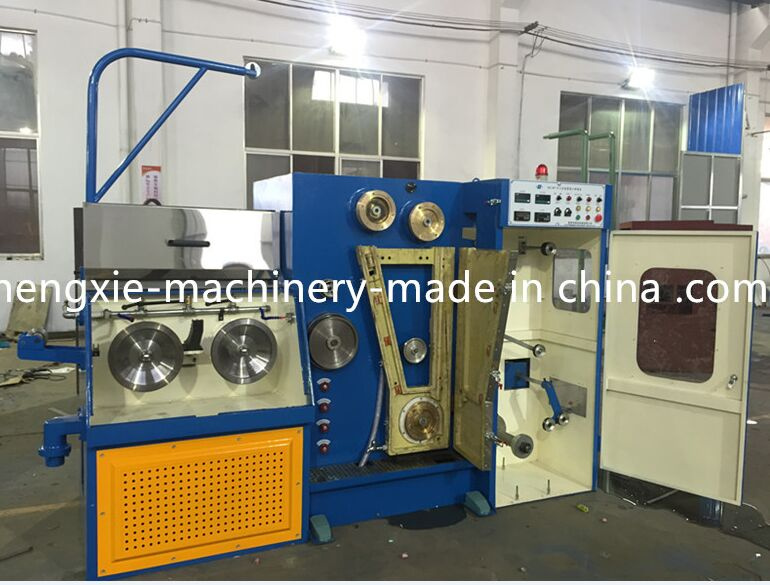

HXE-14DT copper wire drawing machine with continuous annealer
Inlet diameter | 0.8mm-1.6mm |
Outlet diameter | 0.25mm-0.6mm |
Inverter Control | Dual inverter control |
Die numbers | 14 |
High speed | 1200m/min |
Slip ratio of m/c | 15%+8% |
Franme | Welded by steel plate |
Capstan | Ceramic plasma orTung sten |
Capstan size | 316mm |
Fix speed capstan size | 268mm |
Spooler bobbin size | 300mm |
Bobbin loading | Shaft type |
Spooler capacity | 50kg |
Annealing method | DC three-section annealing |
Main motor | 15KW |
Spool motor | 3.7KW |
Annealing current | DC600A |
Annealing voltage | DC50V |
Annealing power | 30KVA |
Steam quantity | 10kg/h |
Cooling water capacity | 250L/min |
Compressed air capacity | 0.4~0.6Mpa,20L/min |
Power source | 380V 50/60HZ |
If you want to buy this machine please cantact me. i will reply as soon as possible.
