Fine Wire Drawig Machine with Annealer
Outlet Diameter:
0.25mm-0.6mm
Max.Inlet Wire Dia.:
0.8mm-1.6mm
Block Dia.:
192mm
Max. Number Of Block:
14
Product Description

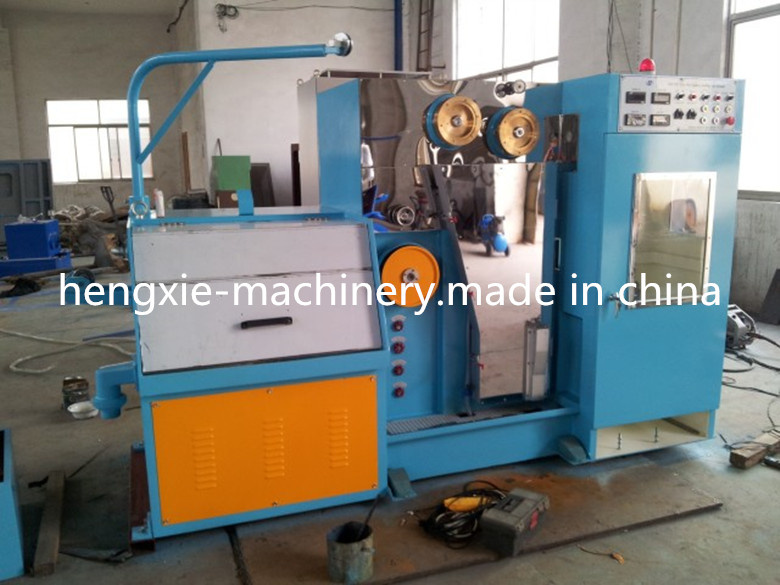

HXE-14DT fast fine wire drawing machine with annealer
Main technical parameter
Usage
fine copper wire drawing and annealing
Inlet diameter
0.8mm-1.6mm
Outlet diameter
0.25mm-0.6mm
Max. mechanical speed
1200m/min
Dies
14 dies
Slip ratio
15%, Finished capstan slip ratio: 8%
Main motor
AC 3 Phase 15KW
Take up motor
AC 3 Phase 5.5 kw
Take up capacity
50kg for diameter 300mm iron spool
Spool size
diameter 300mm/Max (customize)
Capstans
tungsten carbide coated
Capstan lubrication
Spray
Traversing
110W synchronous motor,transmission by timing belts
Brake
20KG-M Electromagnetic brake
Air pressure
4-6kg/cm2
Annealing pulley
diameter 120mm
Annealing volt
DC0~50V
Annealing current
DC600A
Annealing motor power
30KVA
Power source
(customize)
Spool control
PID
Tension control
Weight balance
Machine weight
3200kg
III.HXE-14DT Main drawing machine 1.Material:Q235A 2.Structure 2-1.Frame is weld by steel plate, sand blasting and anneal to eliminate the inner stress. 2-2.Further processed by exactitude milling machine. 3.Wire inlet location:Located on the left of machine, 6 bores. 4.Axes Material:45# steel. Precision: HRC25/27 4-3.Eliminate inner stress, improve the rigidity. 5.Capstan Ceramic coating,2pcs. Loading&unloading the capstans, fixed tightly by cone model, capstan could be displaced according to the die location, avoid break the precision of axes. 6.Die Seat 6-1.The first die is independent .The 2nd /13rd die is founded by milled iron, small, increase operating room. 6-2.Die seat could be displaced according to the location of capstan.
Lubricating
7-1.Over the capstan and dies, has floating water pipe, won't impact the wire pointing. 7-2.The 1st and 14th die, it is lubricated separately. 8.Bobbin size:300mm(customize) 9.Bobbin speed control : 9-1.By swing arm, revising the spooler automatically. 9-2.Regulating the tension according to the different sizes of outlet diameter. 10.Traversing unit: 10-1.110W synchronous motor, traverse width 270mm (Max) 10-2.The bearing is slippery, high rigidly and fray slowly Certification In Exhibitin
