North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Color:
Customized
Aftersales Service:
Engineer Is Available Overseas
Warranty:
One Year
Usage:
Wire
Type:

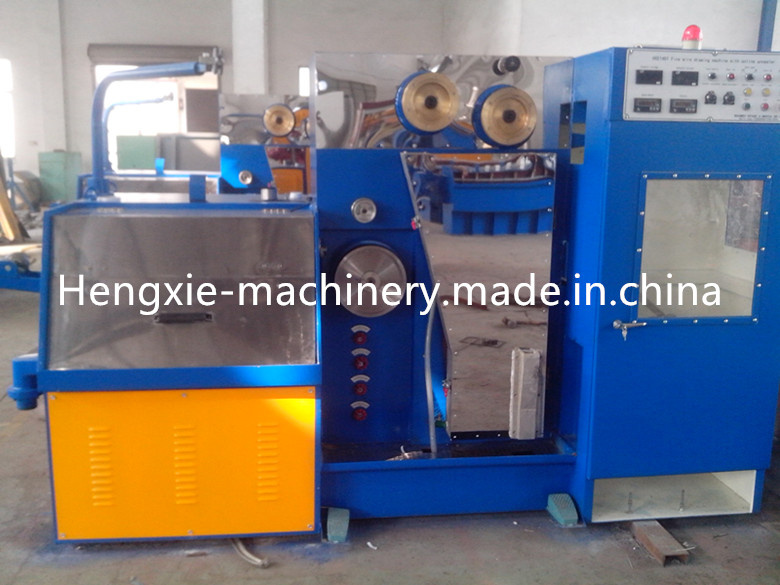

Hxe-14dt Fine Wire Drawing Machine with Annealing
Outlet Diameter:
0.25mm-0.6mm
Max.Inlet Wire Dia.:
0.8mm-1.6mm
Block Dia.:
192mm
Max. Number Of Block:
14
Product Description
Heng-xiemachinery technology Ltd was established in 2005, specializing in cable series equipments. Located at Suzhou city which is near Shanghai, Hengxie enjoys convenient transportation and nice environment. Our company's main products are as follows: Copper Rod Breakdown Machine with Annealer, Medium Copper Wire Drawing Machine with Annealer, Fine Wire Drawing Machine with Annealer,Annealing and Tinning machine, Medium Wire Drawing Machine with Double Spooler etc. y Our cable equipments have won its reputation both on domestic and overseas markets by its high quality, easy operate, less maintain and high productivity. More than 90% cable company are using our company's equipments including many listed company in Suzhou city. Our oversea market include India, Brazil, Egypt,Malaysia,Korea,Vietnam,Syria,Kennya Argentina, South Africa etc HXE-14DT Fine Wire Drawing Machine with Annealing
Main technical parameter
Usage single
bare copper wire drawing and annealing
Inlet size
0.8mm-1.6mm
Outlet size
0.25mm-0.6mm
Machine speed/max
2000m/min
Die number
14
Wire drawing mode
standing-mode and 4axes
Drive
by dual inverters control
Main motor
11KW AC 3 phase motor
Spooler motor
3.7KW AC 3 phase motor
Annealing voltage
DC50V/max
Annealing current
DC300A/max
Annealing power
16KVA
Annealing method
D.C three-section annealer
Quantity of steam
8kg/h
Capacity of compressed air
0.4-0.6Mpa,15L/min
Demand Water quantity for annealing and coolant
150L/min
Machine frame
welded by steel plate
Transmission
flat straps
Capstan
ceramic coated
Lubricating system
Spray
Bobbin size
300mm,
Bobbin loading &unloading type
shaft type
Traversing unit
110W synchro motor, width: 270mm/max
Brake
20KG-M magnetic brake
Machine weight
3000KG
Certification In Exhibition
Suzhou Hengxie Machinery Co., Ltd. Locates in Yinghu Industrial Zone, Wangting town, Suzhou Hli-New District, near to G312 with a conveninet transportation and nice environment. It is a professional company which specializes in electronic cable, electromagnetic cable, electrical wire eat. It is at a leading position in this line because of the topping managing talent and advanced technics.
Hengxie has invested RMB ten Millons to introduce the Germany equipments and technics and developed the cable producing line by itself. This ensures the quality stable and capability superior. Hengxie has successfully set up a superior enterprise mode.
With the mange concept"Stable Quality, Mutual Development" Hengxie warmly welcome alll the friends to grant the changefor sincere cooperation and win the mutual benifit in the future.
Suzhou Hengxie Machinery Co., Ltd. Locates in Yinghu Industrial Zone, Wangting town, Suzhou Hli-New District, near to G312 with a conveninet transportation and nice environment. It is a professional company which specializes in electronic cable, electromagnetic cable, electrical wire eat. It is at a leading position in this line because of the topping managing talent and advanced technics.
Hengxie has invested RMB ten Millons to introduce the Germany equipments and technics and developed the cable producing line by itself. This ensures the quality stable and capability superior. Hengxie has successfully set up a superior enterprise mode.
With the mange concept"Stable Quality, Mutual Development" Hengxie warmly welcome alll the friends to grant the changefor sincere cooperation and win the mutual benifit in the future.
In Exhibition
