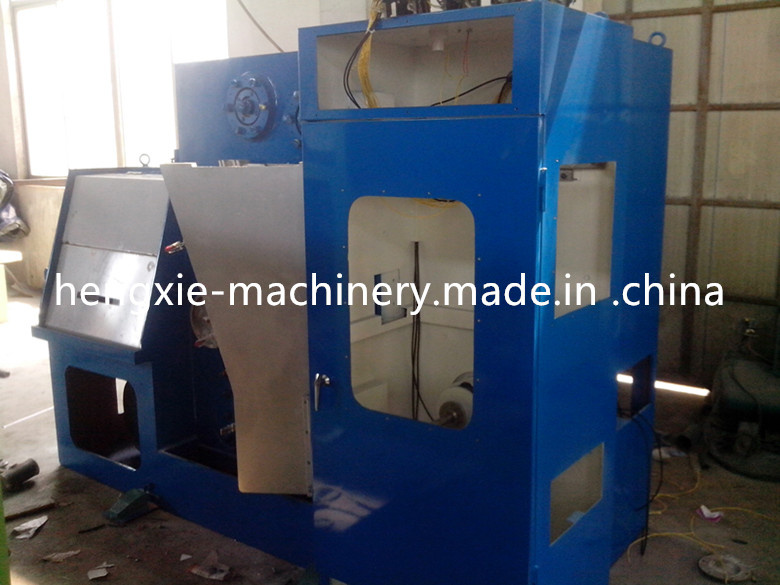

HXE-20DT Fine Wire Drawing Machine with Annealing

Main technical parameter

Usage single	bare copper wire drawing and annealing
Inlet size	0.7mm-1.4mm
Outlet size	0.05mm-0.32mm
Machine speed/max	2000m/min
Die number	20
Wire drawing mode	standing-mode and 4axes
Drive	by dual inverters control
Main motor	11KW AC 3 phase motor
Spooler motor	3.7KW AC 3 phase motor
Annealing voltage	DC50V/max
Annealing current	DC300A/max
Annealing power	16KVA
Annealing method	D.C three-section annealer
Quantity of steam	8kg/h
Capacity of compressed air	0.4-0.6Mpa,15L/min
Demand Water quantity for annealing and coolant	150L/min
Machine frame	welded by steel plate
Transmission	flat straps
Capstan	ceramic coated
Lubricating system	Spray
Bobbin size	300mm,
Bobbin loading &unloading type	shaft type
Traversing unit	110W synchro motor, width: 270mm/max
Brake	20KG-M magnetic brake
Machine weight	3000KG

III.HXE-20DT Main drawing machine
1.Material:Q235A
2.Structure
2-1.Frame is weld by steel plate, sand blasting and anneal to eliminate the inner stress.
2-2.Further processed by exactitude milling machine.
3.Wire inlet location:Located on the left of machine, 6 bores.
4.Axes Material:45# steel. Precision: HRC25/27
4-3.Eliminate inner stress, improve the rigidity.
5.Capstan Ceramic coating, 4pcs. Loading&unloading the capstans, fixed tightly by cone model, capstan could be displaced according to the die location, avoid break the precision of axes.
6.Die Seat
6-1.The 1st die is independent.The 2nd -19th die are founded by milled iron, small, increase operating room.
6-2.Die seat could be displaced according to the location of capstan.

Lubricating

7-1.Over the capstan and dies,set floating water pipe, won't impact the wire pointing.
7-2.The 1st and 20th die, lubricated separately.
8.Bobbin size:300mm(customize)
9.Bobbin speed control
9-1.By swing arm, revising the spooler automatically.
9-2.Regulating the tension according to the different sizes of outlet diameter.
10.Traversing unit:
10-1.110W synchronous motor, traverse width 270mm (Max)
10-2.The bearing is slippery, high rigidly and fray slowly
