South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia
Color:
Customized
Aftersales Service:
Engineer Is Available Overseas
Usage:
Wire
Type:
Fine Wire Drawing Machine
Outlet Diameter:
0.1mm-0.32mm
Max.Inlet Wire Dia.:
0.6mm-1.2mm
Block Dia.:
250mm
Max. Number Of Block:
22
Product Description

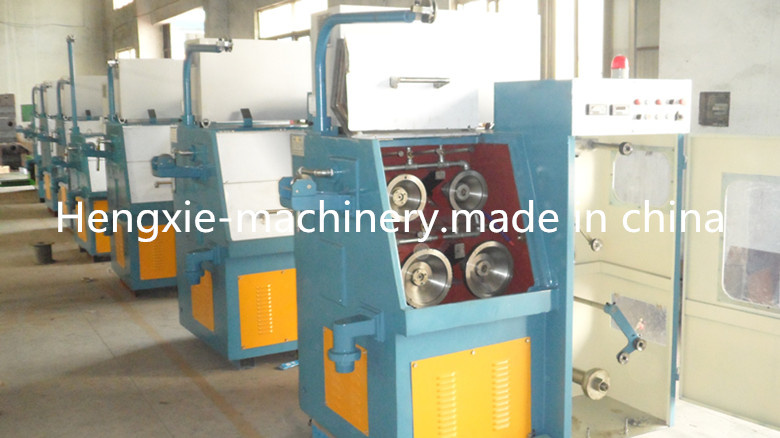

HXE-22DS Fine Wire Drawing Machine
HXE-22DS fine wire drawing machine is used to draw wire from 0.8mm-1.6mm to 0.25mm-0.6mm HIgh speed Energy saving High productivity Heng-xiemachinery technology Ltd was established in 2005, specializing in cable series equipments. Located at Suzhou city which is near Shanghai, Hengxie enjoys convenient transportation and nice environment. Our company's main products are as follows: Copper Rod Breakdown Machine with Annealer, Medium Copper Wire Drawing Machine with Annealer, Fine Wire Drawing Machine with Annealer,Annealing and Tinning machine, Medium Wire Drawing Machine with Double Spooler etc. y Our cable equipments have won its reputation both on domestic and overseas markets by its high quality, easy operate, less maintain and high productivity. More than 90% cable company are using our company's equipments including many listed company in Suzhou city. Our oversea market include India, Brazil, Egypt,Malaysia,Korea,Vietnam,Syria,Kennya Argentina, South Africa etc
Machine type
HXE-22DS
HXE-24DS
HXE-14DS
Inlet diameter
0.6-1.2mm
0.5-1.0mm
0.8-1.6mm
Outlet diameter
0.1-0.32mm
0.08-0.25mm
0.25-0.6mm
Max line speed
2500mpm
2500mpm
1500mpm
Die numbers
22
24
14
Slip ratio of machine
15%
13%
15%
Slip ratio of capstan
8%
8%
8%
capstan
Ceramic
Max capstan diameter
242
242
316
Fix speed capstan diameter
207
207
268
Frame
Cast iron
Cast iron
Welded by steel plate
Main motor
11kw three phase AC motor
15KW three phase AC motor
Spool motor
3.7KW three section AC motor
5.5KW three section AC motor
Revise system
Synchronous control spool
Transmission type
Flat belt
Synchronous belt
Pay off method
Over head
Traversing unit
Flat belt with synchronous motor
Tension control
Weight balance by swing arm
Lubrication type
Spray type
Applicable spool size
300
300
300-400
Spooler capacity
50-60
50-60
50-80
Bobbin loading&unloading type
Shaft type
Power source
380V
Brake
Magnetic brake
Dimension
2050X1600X1900H
2050X1600X1900
2600X1600X1900X
Weight
2500
2500
2200
Certification in exhibition
Suzhou Hengxie Machinery Co., Ltd. Locates in Yinghu Industrial Zone, Wangting town, Suzhou Hli-New District, near to G312 with a conveninet transportation and nice environment. It is a professional company which specializes in electronic cable, electromagnetic cable, electrical wire eat. It is at a leading position in this line because of the topping managing talent and advanced technics.
Hengxie has invested RMB ten Millons to introduce the Germany equipments and technics and developed the cable producing line by itself. This ensures the quality stable and capability superior. Hengxie has successfully set up a superior enterprise mode.
With the mange concept"Stable Quality, Mutual Development" Hengxie warmly welcome alll the friends to grant the changefor sincere cooperation and win the mutual benifit in the future.
Suzhou Hengxie Machinery Co., Ltd. Locates in Yinghu Industrial Zone, Wangting town, Suzhou Hli-New District, near to G312 with a conveninet transportation and nice environment. It is a professional company which specializes in electronic cable, electromagnetic cable, electrical wire eat. It is at a leading position in this line because of the topping managing talent and advanced technics.
Hengxie has invested RMB ten Millons to introduce the Germany equipments and technics and developed the cable producing line by itself. This ensures the quality stable and capability superior. Hengxie has successfully set up a superior enterprise mode.
With the mange concept"Stable Quality, Mutual Development" Hengxie warmly welcome alll the friends to grant the changefor sincere cooperation and win the mutual benifit in the future.
in exhibition
