South America,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia
Color:
Customized
Aftersales Service:
Engineer Is Available Overseas
Usage:
Wire
Type:
Fine Wire Drawing Machine with Annealer
Outlet Diameter:
0.1mm-0.32mm
Max.Inlet Wire Dia.:
0.6mm-1.2mm
Block Dia.:
250mm
Max. Number Of Block:
22

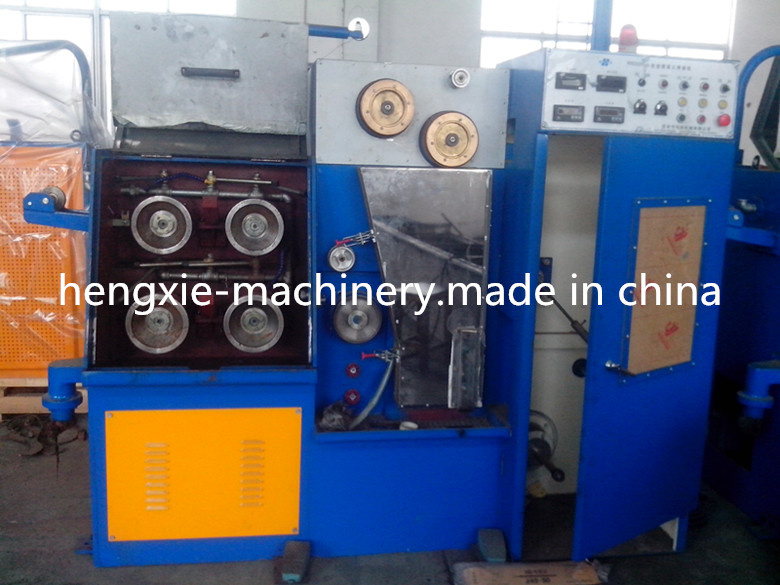

Product Description
fine wire &cable drawing machine with continous annealer -high productivity Specification 1.inlet size:0.6mm-1.2mm 2.outlet size:0.1mm-0.32mm Main technical parameter
Usage
fine copper wire drawing and annealing
Inlet diameter
0.6mm-1.2mm
Outlet diameter
0.1mm-0.32mm
Max. mechanical speed
2000m/min
Dies
22dies
Slip ratio
15%, Finished capstan slip ratio: 8%
Main motor
AC 3 Phase 15KW
Take up motor
AC 3 Phase 5.5 kw
Take up capacity
50kg for diameter 300mm iron spool
Spool size
diameter 300mm/Max (customize)
Capstans
tungsten carbide coated
Capstan lubrication
Spray
Traversing
110W synchronous motor,transmission by timing belts
Brake
20KG-M Electromagnetic brake
Air pressure
4-6kg/cm2
Annealing pulley
diameter 120mm
Annealing volt
DC0~50V
Annealing current
DC600A
Annealing motor power
30KVA
Power source
(customize)
Spool control
PID
Tension control
Weight balance
Machine weight
3200kg
Certificaationin exhibition
Inverter : Invoance
Motor :Wannan
Precision resistance: WDD military enterprise
Bearing :NSK
Low voltage equipment: France Schneider
Warranty
6 month for electrical part
12 month for mechanical part
After-sell service
Pre-sale training:In order to guarantee the customers are able fully to operate the rod breakdown machine , if the customer need, we can help customer training, includes:
(1) Correct operating mode
(2) Correct maintenance way
(3) Remove simple problem
