Hxe-24dw Fine Wire Drawing Machine
Outlet Diameter:
0.1mm-0.7mm
Max.Inlet Wire Dia.:
0.6mm-1.2mm
Block Dia.:
192mm
Max. Number Of Block:
24
Product Description

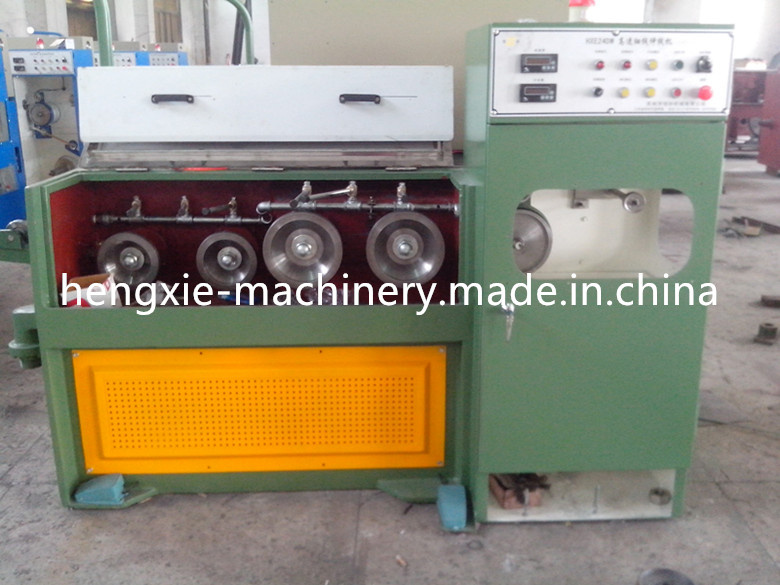

HXE-24DW Fine Wire Drawing Machine -high speed
inlet dia.
0.6-1.2mm
outlet dia.
0.1-0.7mm
die mumber
22
Max. line speed
2500mpm
slip ratio of m/c
15%+8%
capstan
ceramic plasma
Max.capstan diameter
242mm
fix speed capstan diameter
207mm
frame
iron cast
main motor
15KW three phase AC motor
spool motor
3.7KW
revise system
PID synchronous control spool
power control
invertor control
transmission type
flat belt
pay-off method
over head
traversing unit
flat belt + synchronous motor
tension control
weight balance by swing arm
lubrication type
spray type
applicable spooler size
300mm
spooler capacity
50-60
bobbin losding & unloading
shaft type
power source
380v
brake
magnetic brake
HXE-14DT Main drawing machine 1.Material:Q235A 2.Structure 2-1.Frame is weld by steel plate, sand blasting and anneal to eliminate the inner stress. 2-2.Further processed by exactitude milling machine. 3.Wire inlet location:Located on the left of machine, 6 bores. 4.Axes Material:45# steel. Precision: HRC25/27 4-3.Eliminate inner stress, improve the rigidity. 5.Capstan Ceramic coating,2pcs. Loading&unloading the capstans, fixed tightly by cone model, capstan could be displaced according to the die location, avoid break the precision of axes. 6.Die Seat 6-1.The first die is independent .The 2nd /13rd die is founded by milled iron, small, increase operating room. 6-2.Die seat could be displaced according to the location of capstan.
Lubricating
7-1.Over the capstan and dies, has floating water pipe, won't impact the wire pointing. 7-2.The 1st and 14th die, it is lubricated separately. 8.Bobbin size:300mm(customize) 9.Bobbin speed control : 9-1.By swing arm, revising the spooler automatically. 9-2.Regulating the tension according to the different sizes of outlet diameter. 10.Traversing unit: 10-1.110W synchronous motor, traverse width 270mm (Max) 10-2.The bearing is slippery, high rigidly and fray slowly Certification In Exhibition
