Inlet Diameter:
2.5-3.2mm
Machine Weight:
5500kg
Warranty:
1year
After Service:
Engineer Available to Overseas
Color:
Blue/Customized
Popularity:
Hot/Onsales
Type:
Horizontal Metal Drawing Machine
Usage:
Rope Wire
Max.Inlet Wire Dia.:
2.5mm-3.2mm
Outlet Diameter:
0.4mm-1.2mm
Max. Number Of Block:
17
Product Description

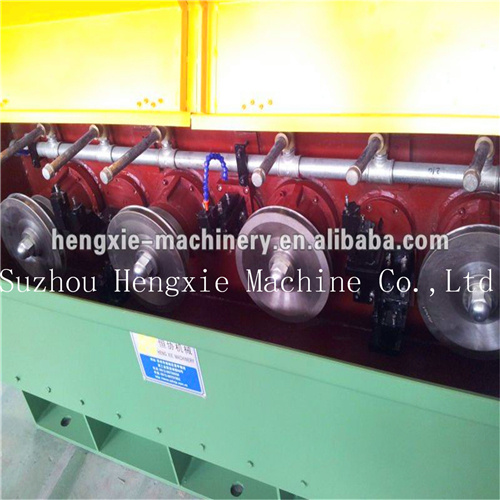

HXE-17MD Copper wire drawing machine
Machine type 17MDS

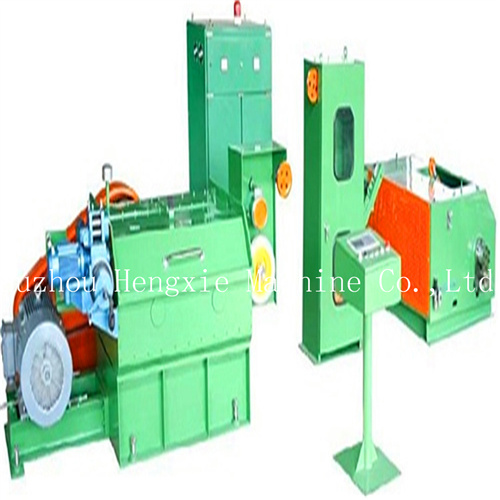

Inlet diameter (mm) φ 2.5-φ 3.2 Outlet diameter (mm) φ 0.4-φ 1.2 Drawing line speed (MPM) 1500 Dies number 17 Slip ratio of m/c 15% Slip ratio of fix-speed capstan 10% Capstan: Tungsten Capstan dia. (max. ) (mm) φ 254 Fix speed capstan (mm) φ 254 Frame Welded by steel plate Main motor 37KW Spooler motor 11KW Revise system PID synchronous control spooler Transmission type by precision ground gear Traversing unit 90W strap speed-down Motor type Tension control Disc brake Lubrication system of wire drawing: Water immersion+ Spray type Suitable diameter of spool(mm) 400mm 630mm Capacity for wire receiving(kg): 200-500 Bobbin loading & unloading type: Dual end thimble Power source: 380V 50/60HZ Brake: Disc brake Machine compostions: Pay off 17MDS drawing machine Tension controller 630 take up machine Electrical control cabinet Console
Suzhou Hengxie Machinery Co., Ltd. Locates in Yinghu Industrial Zone, Wangting town, Suzhou Hli-New District, near to G312 with a conveninet transportation and nice environment. It is a professional company which specializes in electronic cable, electromagnetic cable, electrical wire eat. It is at a leading position in this line because of the topping managing talent and advanced technics.
Hengxie has invested RMB ten Millons to introduce the Germany equipments and technics and developed the cable producing line by itself. This ensures the quality stable and capability superior. Hengxie has successfully set up a superior enterprise mode.
With the mange concept"Stable Quality, Mutual Development" Hengxie warmly welcome alll the friends to grant the changefor sincere cooperation and win the mutual benifit in the future.
