Inlet Diameter:
2.6-3.0mm
Machine Weight:
5500kg
Warranty:
1year
After Service:
Engineer Available to Overseas
Color:
Blue/Customized
Popularity:
Hot/Onsales
Type:
Horizontal Metal Drawing Machine
Usage:
Rope Wire
Max.Inlet Wire Dia.:
2.6mm-3.2mm
Outlet Diameter:
0.4mm-1.2mm
Max. Number Of Block:
17
Product Description

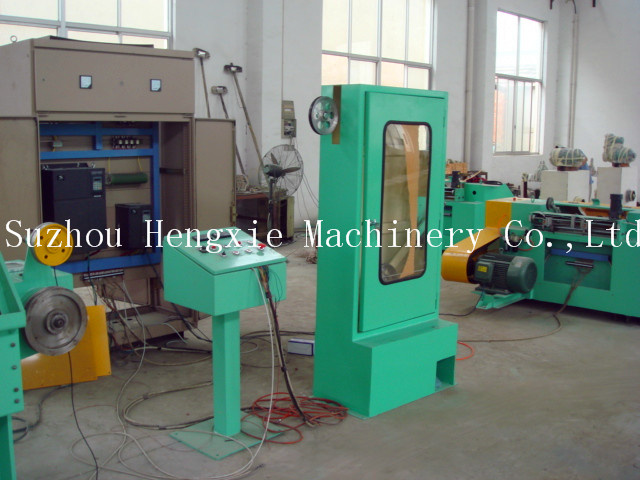

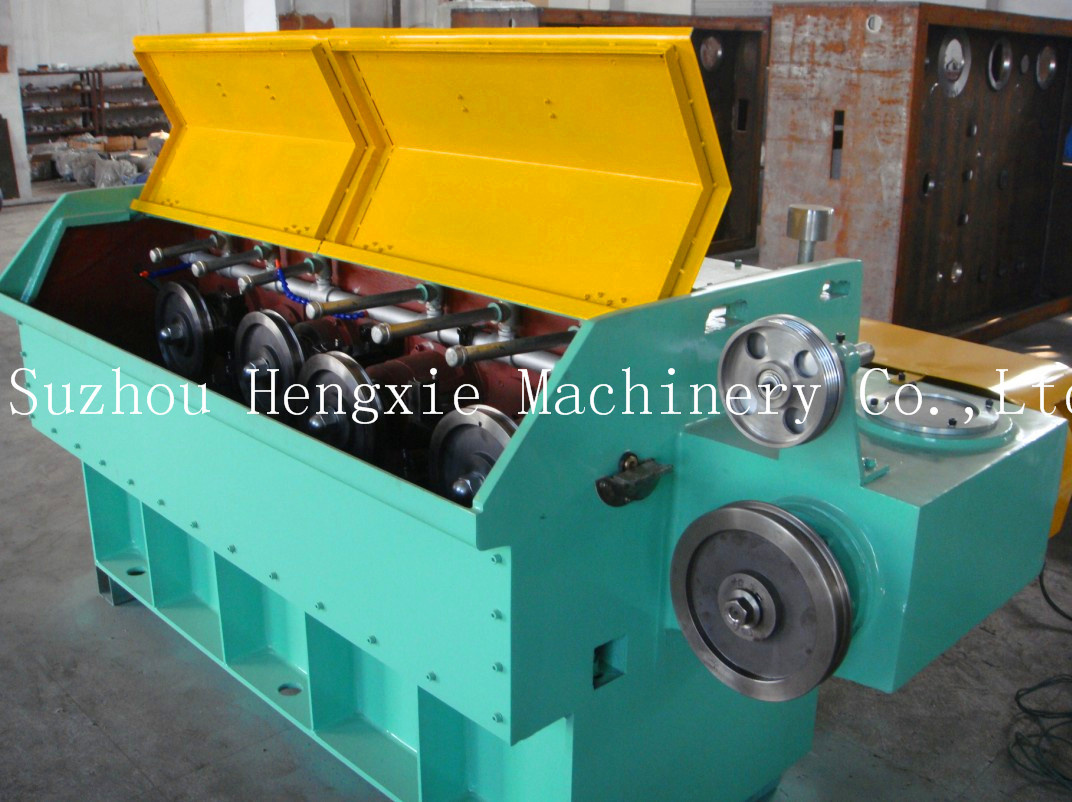

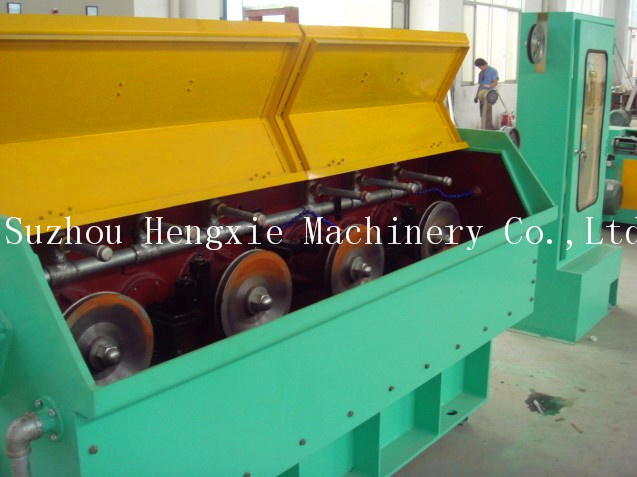

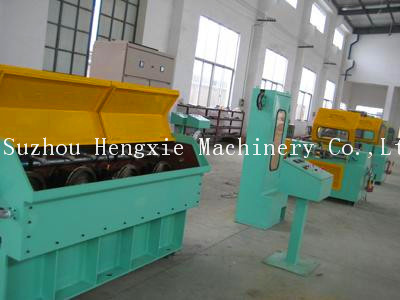

HXE-17MD Medium copper wire drawing machine Technoic Detail
Control system
Traditional analog type
Inverter control
Dual inverter control
Inlet size
2.6mm-3.2mm
Outlet size
0.4mm-1.2mm
High speed
1300m/min
Dies
17
Slip ratio of m/c
15%+10%
Frame
Iron cast
Capstan
Ceramic plasma or Tungsten
Capstan diameter
254mm
Fix speed capstan diameter
252mm
Bobbin size
400mm-630mm or customized
Bobbin loading
Double end thimble
Traversing unit
90W strap speed-down Motor type
Main motor
37KW or customized
Spool motor
11KW or customized
Transmission type
Chain
Revise system
PID synchronous control spooler
Detecting device
Weight balance by swing arm
Tension control
Air pressure adjust
Spool capacity
500KG
Brake
Disc brake
Lubrication type for bearing
oil immersion
Lubrication type
Spray type
Power source
380V 50/60HZ or customized
Lubrication oil capacity
120 liter/min
Dimension
5000L*2500W*2000H
Weight
3000KG
Suzhou Hengxie Machinery Co., Ltd. Locates in Yinghu Industrial Zone, Wangting town, Suzhou Hli-New District, near to G312 with a conveninet transportation and nice environment. It is a professional company which specializes in electronic cable, electromagnetic cable, electrical wire eat. It is at a leading position in this line because of the topping managing talent and advanced technics.
Hengxie has invested RMB ten Millons to introduce the Germany equipments and technics and developed the cable producing line by itself. This ensures the quality stable and capability superior. Hengxie has successfully set up a superior enterprise mode.
With the mange concept"Stable Quality, Mutual Development" Hengxie warmly welcome alll the friends to grant the changefor sincere cooperation and win the mutual benifit in the future.
Suzhou Hengxie Machinery Co., Ltd. Locates in Yinghu Industrial Zone, Wangting town, Suzhou Hli-New District, near to G312 with a conveninet transportation and nice environment. It is a professional company which specializes in electronic cable, electromagnetic cable, electrical wire eat. It is at a leading position in this line because of the topping managing talent and advanced technics.
Hengxie has invested RMB ten Millons to introduce the Germany equipments and technics and developed the cable producing line by itself. This ensures the quality stable and capability superior. Hengxie has successfully set up a superior enterprise mode.
With the mange concept"Stable Quality, Mutual Development" Hengxie warmly welcome alll the friends to grant the changefor sincere cooperation and win the mutual benifit in the future.
