North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Popularity:
Hot/on Sales
Brand Name:
Hxe New
Warranty:
1 Year
Die Numbers:
17
Noise:
Low
Inverter Control:
Button Control or PLC with Touching Screen
Color:
Bule/Customized
Usage:
Rope Wire
Type:
Wire Drawing Machine
Max.Inlet Wire Dia.:
2.5mm-3.2mm
Outlet Diameter:
0.4mm-1.2mm
Max. Number Of Block:
17
Product Description

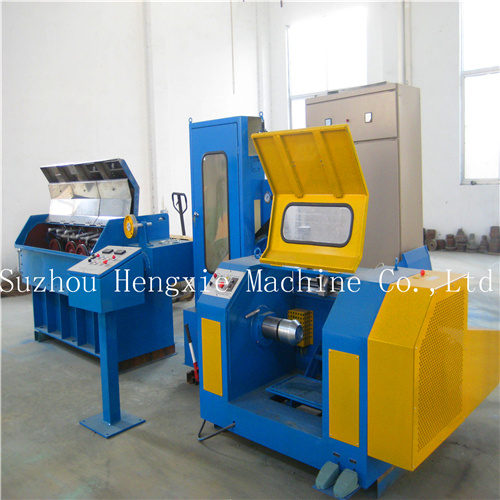

HXE-17MDS Medium spped copper wire drawing machine Technoic Detail
Control syetem
Traditional analog type
Inverter control
Dual inverter control
Inlet size
2.5mm-3.2mm
Outlet size
0.4mm-1.2mm
High speed
1500m/min

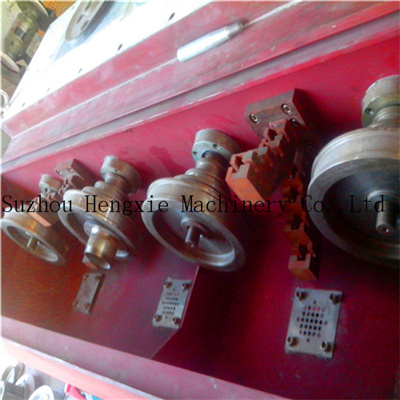

Die
17
Slip ratio of macine
15%
Slip ratio of Fix speed capstan
10%
Frame
welded by steel plate

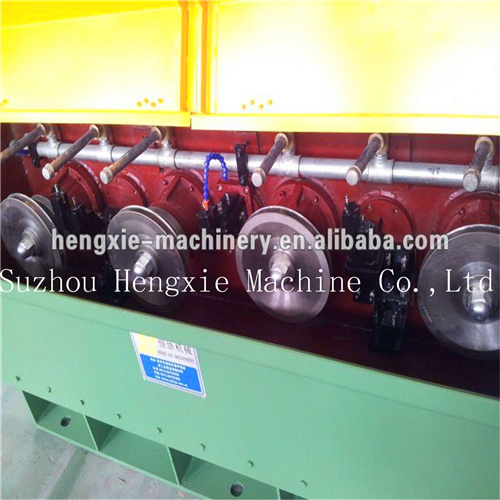

Capstan diameter
254mm
Fix speed capstan diameter
252mm
spooler bobbin size
400mm-630mm or customized
Bobbing loading
Double end thimble
Traversing unit
90W strap speed-down motor type
Main motor
37kw or customized
Spool motor
11kw or customized
Transmission type
Gear
Revise system
PID synchronous control spooler
Detecting device
Weight balance by swing arm
Tension control
air pressure adjust
spool capacity
500KG
Brake
Disc brake
Lubrication type for bearing
Oil immersion
Lubrication type
Full dip-in or water immersion type
Power source
380V 50/60HZ or customized
Lubrication oil capacity
120Liter/min
Dimension
3500L*1200W*1250H
Weight
4500KG
Suzhou Hengxie Machinery Co., Ltd. Locates in Yinghu Industrial Zone, Wangting town, Suzhou Hli-New District, near to G312 with a conveninet transportation and nice environment. It is a professional company which specializes in electronic cable, electromagnetic cable, electrical wire eat. It is at a leading position in this line because of the topping managing talent and advanced technics.
Hengxie has invested RMB ten Millons to introduce the Germany equipments and technics and developed the cable producing line by itself. This ensures the quality stable and capability superior. Hengxie has successfully set up a superior enterprise mode.
With the mange concept"Stable Quality, Mutual Development" Hengxie warmly welcome alll the friends to grant the changefor sincere cooperation and win the mutual benifit in the future.
Suzhou Hengxie Machinery Co., Ltd. Locates in Yinghu Industrial Zone, Wangting town, Suzhou Hli-New District, near to G312 with a conveninet transportation and nice environment. It is a professional company which specializes in electronic cable, electromagnetic cable, electrical wire eat. It is at a leading position in this line because of the topping managing talent and advanced technics.
Hengxie has invested RMB ten Millons to introduce the Germany equipments and technics and developed the cable producing line by itself. This ensures the quality stable and capability superior. Hengxie has successfully set up a superior enterprise mode.
With the mange concept"Stable Quality, Mutual Development" Hengxie warmly welcome alll the friends to grant the changefor sincere cooperation and win the mutual benifit in the future.
