Inlet Diameter:
1.0-2.8mm
Power:
300kVA
Machine Weight:
10500kg
Warranty:
1year
After Service:
Engineer Available to Overseas
Operation:
Button Control and PLC with Touching Screen
Type:
Horizontal Metal Drawing Machine
Usage:
Rope Wire
Max.Inlet Wire Dia.:
3.0mm-3.5mm
Outlet Diameter:
1.0mm-2.8mm
Max. Number Of Block:
9
Product Description

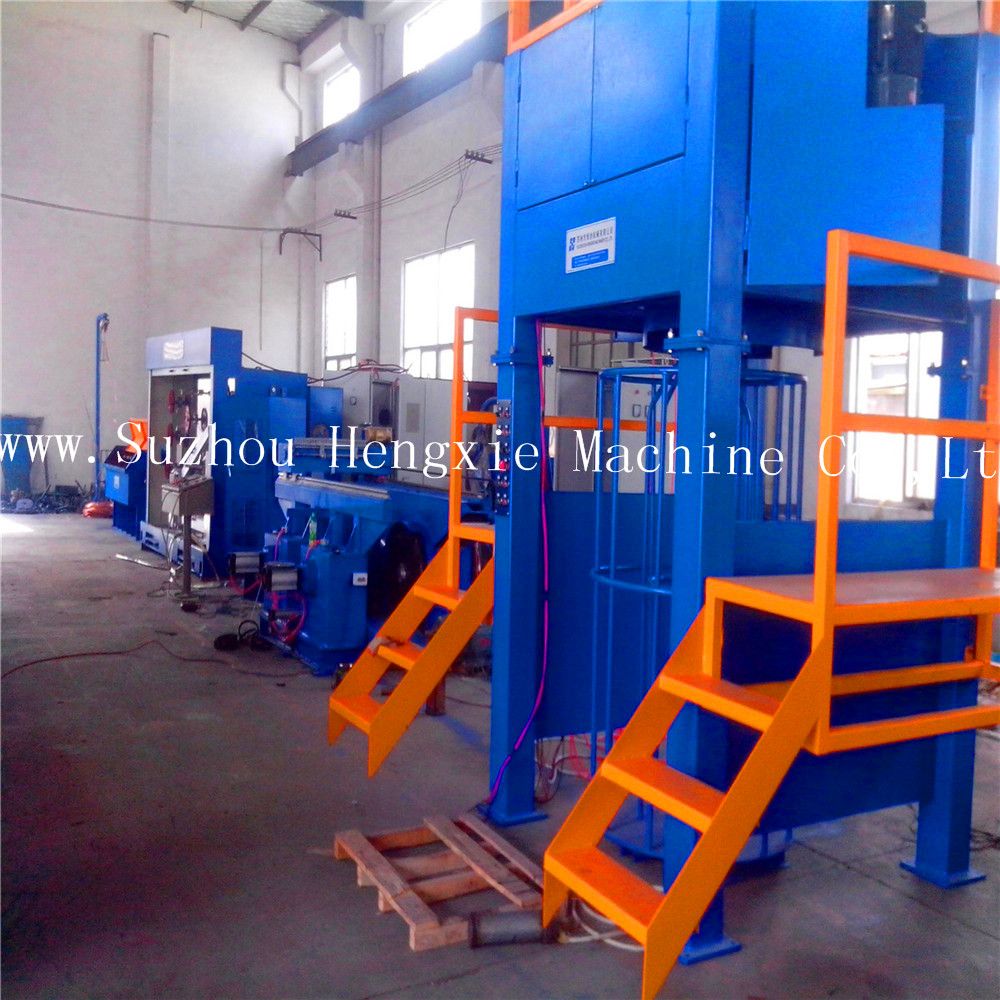

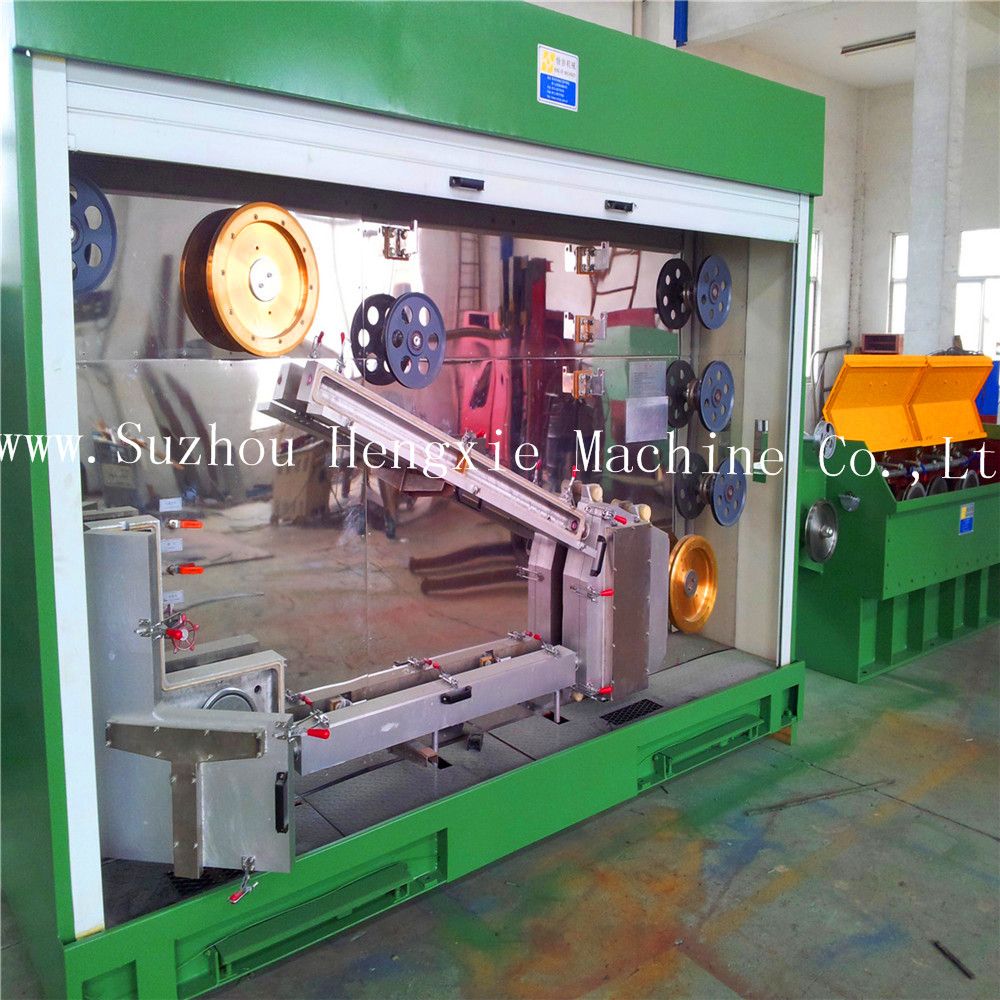

Intermediate copper wire drawing machine with annealing(HXE-9DT) Main technical parameters: 1. Usage: Copper wire drawing and annealing 2. Type: Two stages type and four-axis horizontal 3. Inlet size: 3.5-3.0mm 4. Outlet size with annealing: 1.0-2.8mm 5. Max mechanical speed: 900m/per minute 6. Dies number: 9 7. Lubrication for drawing: Capstans are semi submerged 8. Lubrication requirement: 100L/ per minute 9. Main motor for drawing: AC 45KW three phase motor 10. Spooler motor: 11kw*2sets AC three phase motor 11. Traversing: By 700W motor, with limit switch 12.Annealing method:DC three-section annealing 13.Annealing power:180VA 14.Steam quantity:18Kg/h 15.Cooling water capacity:650L/min 16.Compressed air capacity:0.4-0.6Mpa,50L/min 17.Power source: 380V 50/60HZ 18.DImension : 13300*3500*3400 19.Weight :500KG
Suzhou Hengxie Machinery Co., Ltd. Locates in Yinghu Industrial Zone, Wangting town, Suzhou Hli-New District, near to G312 with a conveninet transportation and nice environment. It is a professional company which specializes in electronic cable, electromagnetic cable, electrical wire eat. It is at a leading position in this line because of the topping managing talent and advanced technics.
Hengxie has invested RMB ten Millons to introduce the Germany equipments and technics and developed the cable producing line by itself. This ensures the quality stable and capability superior. Hengxie has successfully set up a superior enterprise mode.
With the mange concept"Stable Quality, Mutual Development" Hengxie warmly welcome alll the friends to grant the changefor sincere cooperation and win the mutual benifit in the future.
