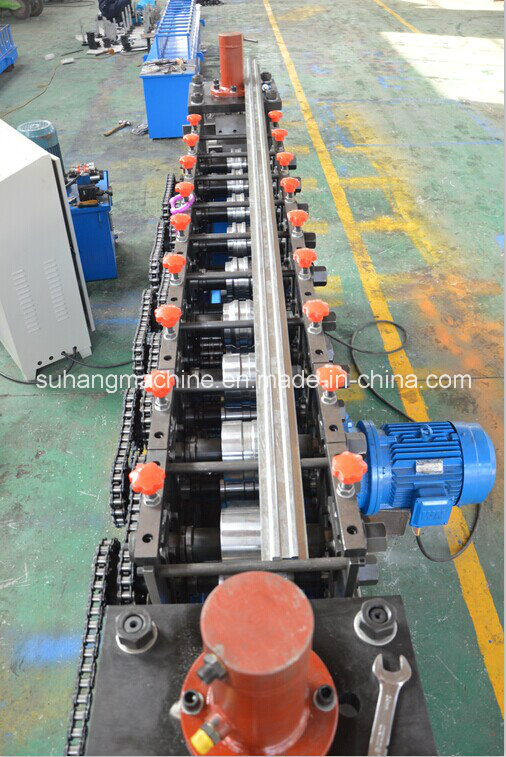

Double Furring/Omega Roll Forming Machine
| Price: |
US $ 19500set |
| Trade Terms: |
FOB,CIF,EXW |
| Min Order: |
1set |
| Pay Type: |
L/C,T/T,Western Union |
Technical data1.Running material: Galvanized steel Thickness - 0.4-0.8mm2.Forming speed: 5-12m/min3.Forming steps: 13 steps/13 steps side by side rolls4.Roller material: Fine steel precision work processing of Gcr15,Roller datum roller diameter φ1205,Material of principal axis: Fine steel modulation processing of 45(axis diameter:φ60)5.Sprocket wheel: 45 steel high-frequencies quench; distance 25.4. Quantity: 13pcs 6.Motor power: 5.5 KW7.
Hydraulic system electrical machinery power:4kw
8.PLC Control system: Brand of Panasonic ; Touch screen is brand of Panasonic, Encoder is Japanese Omron brand; the Inverter is Siemens brand
Machine list
| 3 ton passive de-coiler | 1 set |

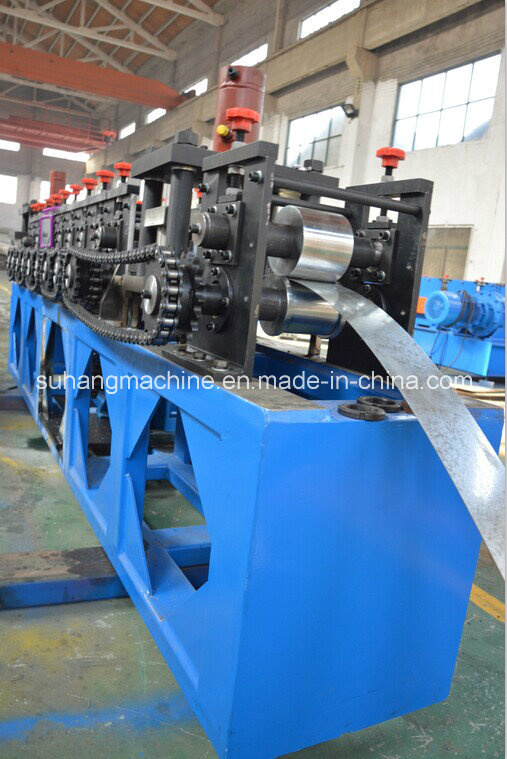

| Main roll forming machine | 1 set |

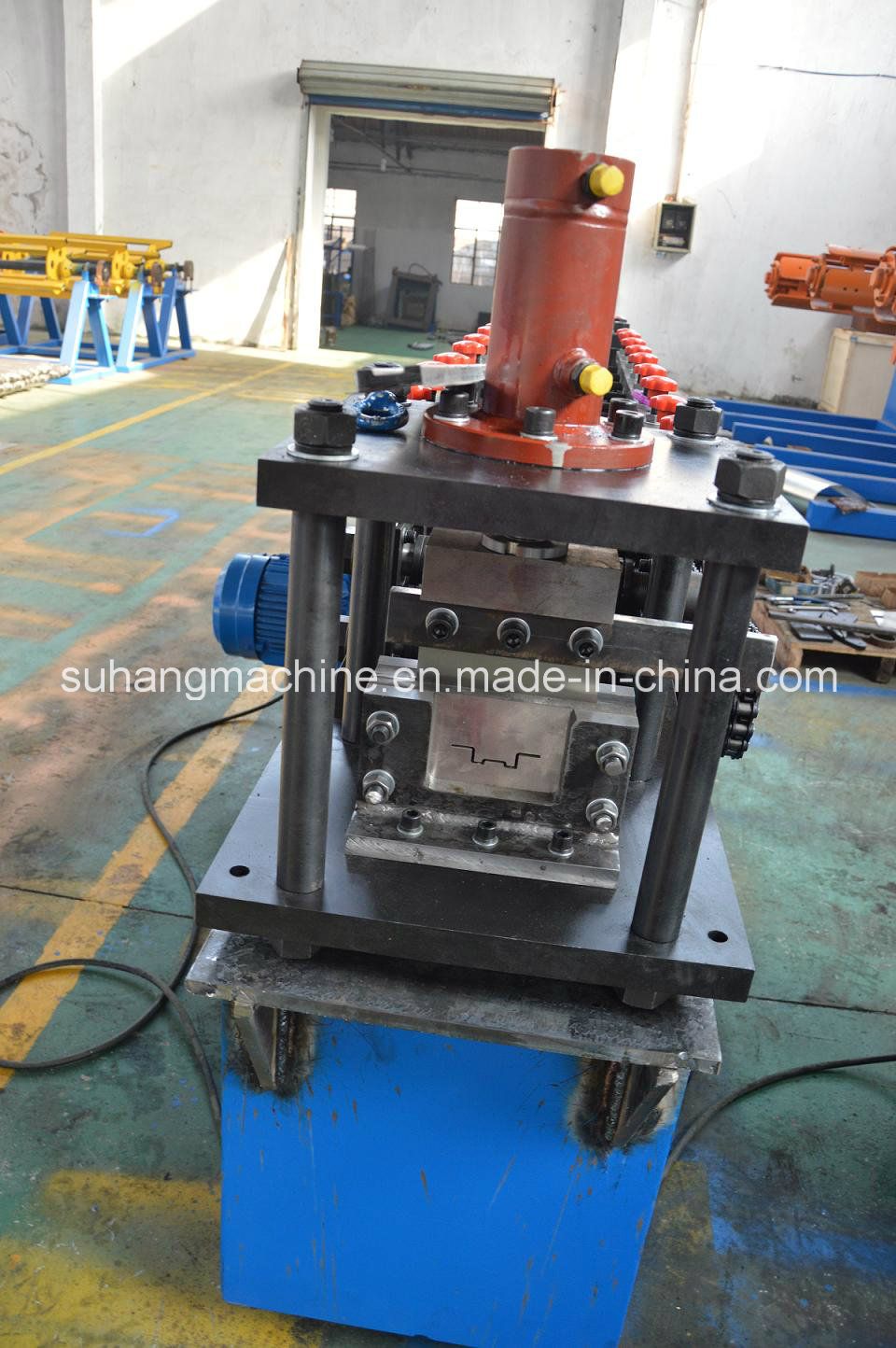

| Cutting device | 1 set |
| PLC Control box | 1 unit |
| Hydraulic station | 1 unit |
| Out table | 2 units |
The production processionUn-coiler ------ Feeding device --- Roll forming ----- PLC control --- Hydraulic cutting---- Run out table
| Prod Model: |
SH-FS |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Forging Forming Method: |
Mold Forging |
Wuxi Suhang Machinery Manufacturing Co., Ltd. is a comprehensive enterprise combining production, sales and services. We are mainly engaged in providing machineries and equipments.
Owing to a professional teamwork, we are experienced in manufacturing, import and export, customers' design, installation and test, technical solution and after-sale services. We have shipped out our machines to more than 70 countries, and keep good business relationships with a large amount of worthy customers, contributing to our great business records and reputation.
We have our customers in different districts and continents. We sell products in the Middle East, Turkey, East Europe, Russia, South and East Asia and South America. Our factories are in Wuxi, which is just 100 km from Shanghai, just 45 min by the fast train. We have rich technology in design and manufacture for different requirements.
Our goal is to supply high quality products. We also try to guarantee timely delivery, all around services at reasonable cost. We have already established favorable relationships with many clients around the world. Working to extend our presence internationally, we are looking forward to cooperating with your company for mutual benefit. Please feel free to contact us.
Main product: C Purlin Roll Forming Machine; Z Purlin Roll Forming Machine; C/Z Iinterchangeable Purlin Roll Forming Machine Standing Seam Forming Machine; Bemo Sheet Forming Machine; Cold Roll Forming Machine; Roof Deck Forming Machine; Floor Deck Forming Machine; Guardrail Forming Machine; Glazed Tile Forming Machine; Corrugated Forming Machine; Double Layer Forming Machine; K Span Forming Machine; Hat Purlin Forming Machine; Hydraulic Curving Machine; Roller Shutter Production Line; Garage Door Production Line; Tapered Sheet Forming Machine, welcome to visit our factory!
