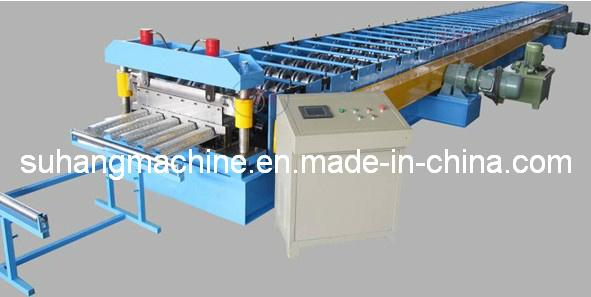

Floor Deck Roll Forming Machine
The panel produced by this machine has high strength with big wave. It adheres well to concrete. It is used on high buildings. It not only saves steel mold plate, but also saves investment.
The deck floor panels forming by this machine is used for high building surface panels, it has so many good advantages, such as high wave, high strongness, high atuomation, low cost.
Machine Components:
Unpowered Decoiler, Main forming machine, Forming cutter, Computer control system, Hydraulic station, Product Rack
Working Flow:
Decoiling guiding and feeding roll forming cut to length run out table
We can design and manufacture the machine according to clients' request! Please send us the enquiry with Profile Drawing.
Roll former:
With all steel fabricated chassis manufactured in sections for ease of handling. Complete with infeed guides and sheet lubricators. Fixed position driven forming stations, all tooling, tooling pedestals and pre-lubricated bearings.
Drive Unit:
Multi input variable-speed electric drive unit.
Guillotine:
Stationary-slug type hydraulically operated guillotine press, complete with replaceable profiled shear blades.
Product Support Tables:
11.5 metres of roller top runout table.
Guarding:
Full overhead lift-up guarding.
Control Console:
Free-standing control console, complete with both auto and manual functions. Featuring control system or optional downloadable pc control.
| Number | Items | Unit\Type | RF-FD |
| 1 | Steel Thickness | mm | 0.8-1.2 |
| 2 | Steel feeding width | mm | 1000-1250 |
| 3 | Forming Speed | m/min | 10-15 |
| 4 | Roller stands | stand | 30-36 |
| 5 | Roller Material |
| 45# steel, coated with chrome |
| 6 | Hydraulic cutting Power | Kw | 18 |
| 7 | Hydraulic pressure | Kw | 5 |
| 8 | Hydraulic pressure Mpa | Mpa | 12 |
| 9 | Power Supply |
| 380V, 50HZ,3 phase |
| 10 | Tolerance | mm | 1.5 |
| 11 | Material of cutting |
| Cr12 |
| 12 | Control system |
| PLC with touch screen |
| 13 | Machine net weight | T | 16 |
